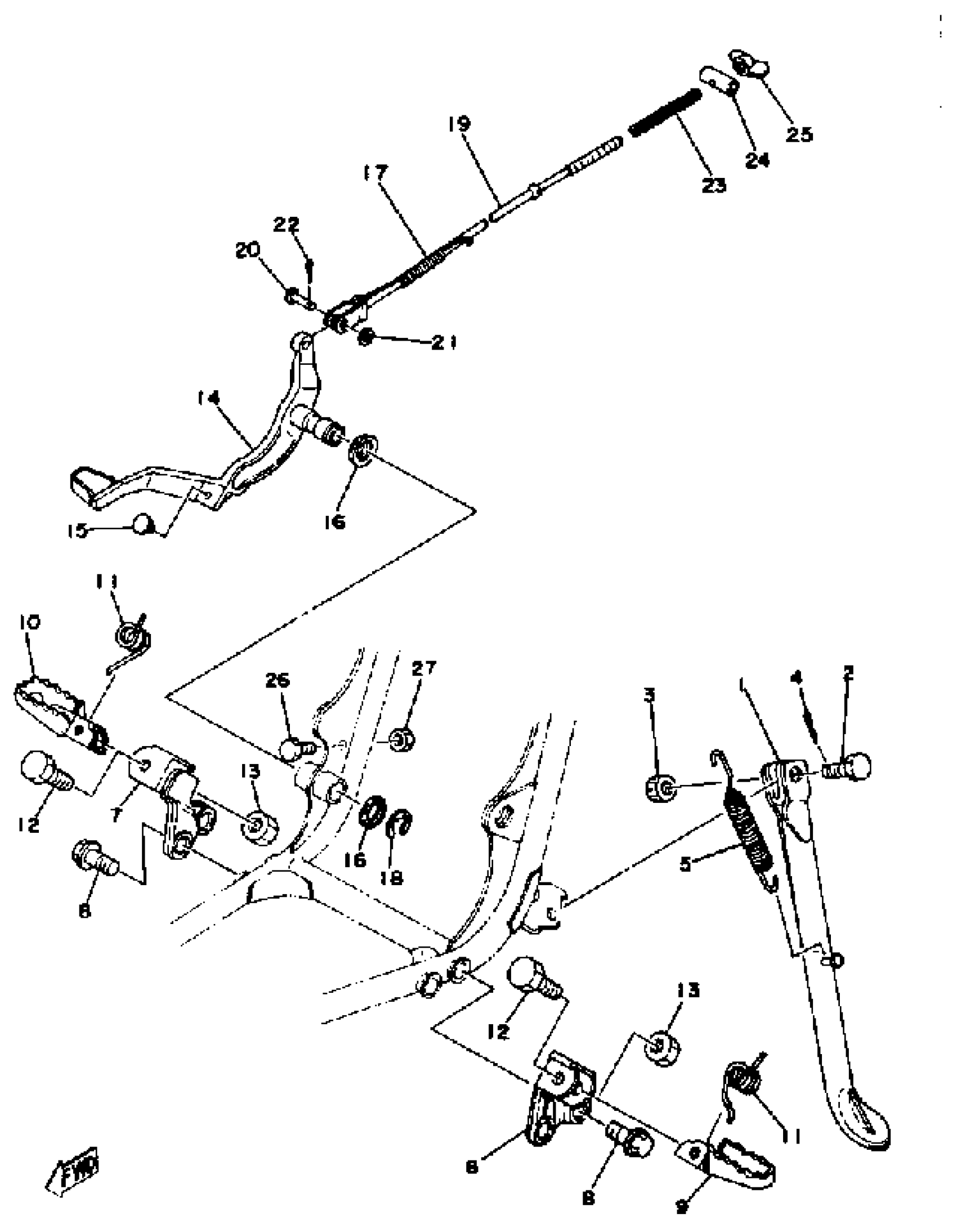

Yamaha YZ400C (YZ400C_D_E) 1976 STAND FOOTREST BRAKE PEDAL YZ400D E Diagram

#

Description
Price

1

STAND, SIDE

1W4-27311-00-00

Unavailable

1

STAND, SIDE

(2K7-27311-00-00)

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT, CASTLE

95307-10900-00

Unavailable

4

PIN, COTTER

91490-20025-00

$1.99

5

SPRING (434)

90507-29008-00

$28.99

6

BRACKET, FOOTREST 1

(1W4-27412-10-00)

Unavailable

7

BRACKET, FOOTREST 2

(1W4-27422-10-00)

Unavailable

8

BOLT, WASHER BASED

90105-12096-00

Unavailable

9

FOOTREST 1

1W4-27411-00-00

Unavailable

10

FOOTREST 2

1W4-27421-00-00

Unavailable

11

SPRING, TORSION (214-27426-00)

90508-20023-00

$8.49

12

UNAVAILABLE IN PRICE BOOK

90101-08424-00

Unavailable

13

NUT, U

95617-08100-00

$9.49

14

PEDAL, BRAKE

(1W4-27211-01-00)

Unavailable

15

GROMMET

90480-15215-00

Unavailable

16

COVER, DUST

498-27235-00-00

Unavailable

17

SPRING, TENSION

90506-20128-00

Unavailable

18

CIRCLIP, E-TYPE

99001-15600-00

Unavailable

19

ROD, BRAKE

483-27231-00-00

Unavailable

20

PIN, CLEVIS (24X)

90240-06103-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

PIN, COTTER

91490-20025-00

$1.99

23

SPRING, (180-27236-00)

90501-10245-00

Unavailable

24

PIN 1562723700

90249-12008-00

Unavailable

25

NUT (25K)

90179-06411-00

Unavailable

26

BOLT, HEXAGON

97017-06020-00

Unavailable

27

NUT(650)

95380-06700-00

Unavailable
