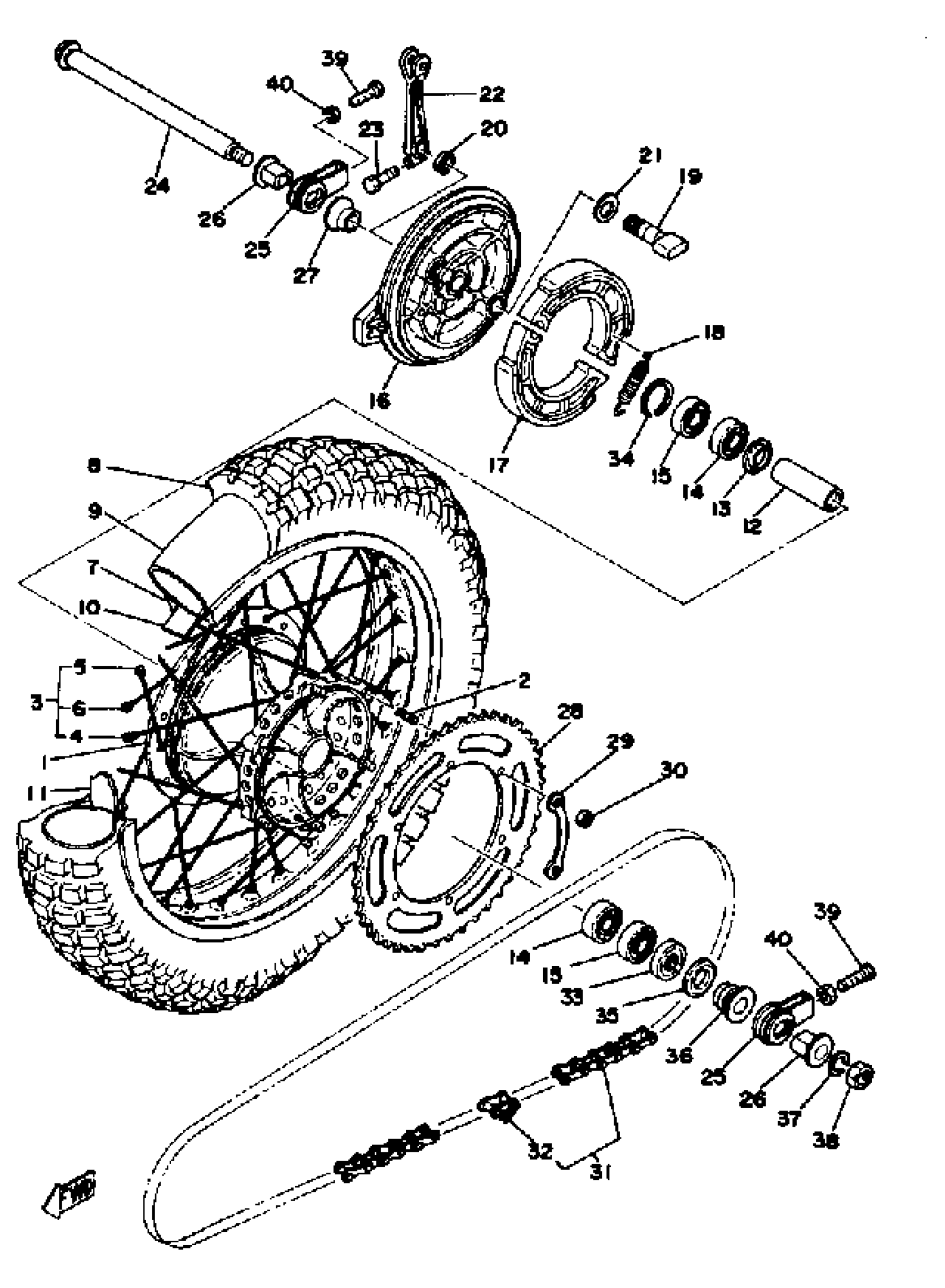

Yamaha YZ400C (YZ400C_D_E) 1976 REAR WHEEL YZ400D E Diagram

#

Description
Price

1

HUB, REAR

(483-25311-13-98)

Unavailable

2

BOLT, STUD (483)

90116-08218-00

$8.49

3

SPOKE SET, REAR (431-25304-00)

431-25304-01-00

Unavailable

4

SPOKE SET, INNER 2

(431-25396-90-00)

Unavailable

5

SPOKE SET, INNER 1

(431-25391-90-00)

Unavailable

6

SPOKE SET, OUTER 1

(431-25392-90-00)

Unavailable

7

RIM 2.15X18 (94421-18151) (2.15-18)

94421-18238-00

Unavailable

8

150/80-18 M2A (TT) (94151-18684) (4.50-18-4PR)

94115-186A2-00

Unavailable

9

TUBE (5A8)

94212-18188-00

$35.99

10

BAND, RIM (2J4)

94340-18086-00

$17.99

11

SPACER,BEAD

1T1-25394-01-00

Unavailable

12

SPACER, BEARING

483-25317-01-00

Unavailable

13

FLANGE, SPACER

483-25315-00-00

Unavailable

14

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

15

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

16

PLATE, BRAKE SHOE

1W4-25321-00-98

Unavailable

17

BRAKE SHOE KIT

4GR-W253E-00-00

Unavailable

18

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

19

CAMSHAFT

1E6-25151-00-00

Unavailable

20

SEAL, CAM SHAFT

148-25359-00-00

Unavailable

21

SHIM, CAM SHAFT

148-25353-00-00

Unavailable

22

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

23

BOLT, HEXAGON (462)

90101-06291-00

Unavailable

24

AXLE, WHEEL

2K8-25381-00-00

Unavailable

24

AXLE, WHEEL

(431-25381-00-00)

Unavailable

25

PULLER, CHAIN 1

2K8-25388-00-00

Unavailable

25

PULLER, CHAIN 1

431-25388-00-00

Unavailable

26

BUSH, SOLID

90381-17027-00

Unavailable

27

COLLAR

90387-17215-00

Unavailable

27

COLLAR

(90387-17651-00)

Unavailable

28

SPROCKET, DRIVN 48T

(431-25448-04-XX)

Unavailable

28

SPROCKET, DRIVN 50TSPROCKET WHEEL (50T)

431-25450-04-XX

Unavailable

28

SPROCKET, DRIVN 52T

(431-25452-04-XX)

Unavailable

29

WASHER

2XJ-25412-00-00

Unavailable

30

NUT (583)

90170-08193-00

Unavailable

31

520 DS 106L

94585-20106-00

Unavailable

31

520 DS 108L (520DS-108L)

94585-20108-00

Unavailable

32

. JOINT CHAIN

94680-11001-00

Unavailable

33

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

34

CIRCLIP, INNER

(93450-41050-00)

Unavailable

35

COVER, HUB DUST

431-25367-00-00

Unavailable

36

COLLAR

90387-17555-00

Unavailable

36

COLLAR

90387-17650-00

Unavailable

37

WASHER(JN5)

92907-16100-00

Unavailable

38

NUT, HEXAGON

90170-16177-00

Unavailable

39

BOLT

90101-08060-00

Unavailable

40

. NUT

95380-08700-00

Unavailable
