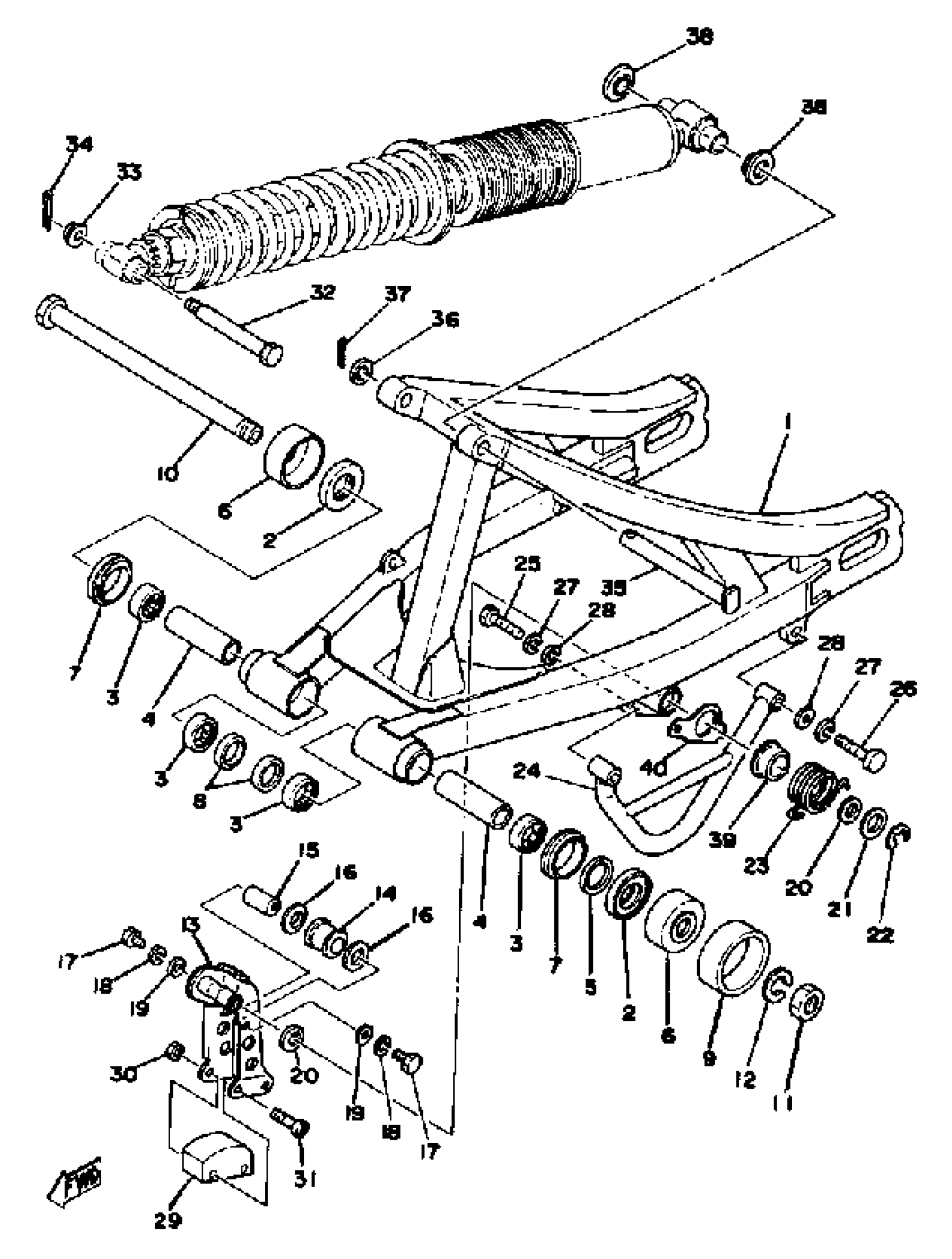

Yamaha YZ400C (YZ400C_D_E) 1976 REAR ARM YZ400D E Diagram

#

Description
Price

1

REAR ARM

(1W4-22110-00-33)

Unavailable

1

REAR ARM

(2K8-22110-00-00)

Unavailable

2

BEARING, THRUST

93342-22205-00

$70.99

3

BRG,CYL-CAL ROLLER 14.5G TM

93317-22214-00

$47.99

4

BUSH, SOLID

90380-16056-00

Unavailable

5

UNAVAILABLE IN PRICE BOOK

648-45533-00-33

Unavailable

6

COVER, THRUST 2

2K8-22129-00-00

$37.99

7

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

8

OIL SEAL, SDO-TYPE

93109-22018-00

Unavailable

9

SEAL, GUARD

431-22151-03-00

$27.99

10

SHAFT, PIVOT

1W4-22141-00-00

Unavailable

11

NUT

90170-16111-00

Unavailable

12

WASHER(JN5)

92907-16100-00

$14.99

13

ARM, TENSIONER

(1W4-22179-01-00)

Unavailable

13

ARM, TENSIONER

2K8-22179-00-00

Unavailable

14

TENSIONER

1W1-22178-00-00

Unavailable

15

NUT, SPEC''L SHAPE

90179-06239-00

Unavailable

16

WASHER, PLAIN (434)

90201-14411-00

Unavailable

17

BOLT (661)

97013-06012-00

Unavailable

18

WASHER, SPRING

92995-06100-00

Unavailable

19

WASHER, PLAIN (646)

92990-06600-00

Unavailable

20

OIL SEAL (2K8)

93109-14021-00

Unavailable

20

OIL SEAL (2K8)

93109-14021-00

Unavailable

21

WASHER, PLAIN (434)

90201-14411-00

Unavailable

22

CIRCLIP (137)

93430-10015-00

Unavailable

23

SPRING, TORSION (90508-32347)

90508-35365-00

Unavailable

23

SPRING, TORSION (90508-32347)

90508-35366-00

Unavailable

24

GUARD, CHAIN

(1W4-22153-00-00)

Unavailable

24

GUARD, CHAIN

(2K8-22153-00-00)

Unavailable

25

BOLT, HEXAGON

97013-08030-00

Unavailable

26

BOLT

97013-08035-00

Unavailable

27

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

28

.. WASHER, PLATE

92990-08600-00

Unavailable

29

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

30

NUT, HEXAGON SMALL

95317-05700-00

Unavailable

31

SCREW, PAN

98507-05035-00

Unavailable

32

BOLT

90109-08480-00

Unavailable

33

NUT, SPEC''L SHAPE

90179-08243-00

Unavailable

33

NUT, FLANGE

95704-08500-00

Unavailable

34

PIN, COTTER

91490-20025-00

Unavailable

35

PIN,CLEVIS

90240-12059-00

Unavailable

36

WASHER, PLATE

90201-12047-00

Unavailable

37

PIN, COTTER

91490-30030-00

Unavailable

38

COVER, THRUST

1W1-22128-00-00

Unavailable

39

PORTECTOR, CHAIN

2K8-22147-00-00

Unavailable

40

COVER

2K8-2219X-00-00

Unavailable
