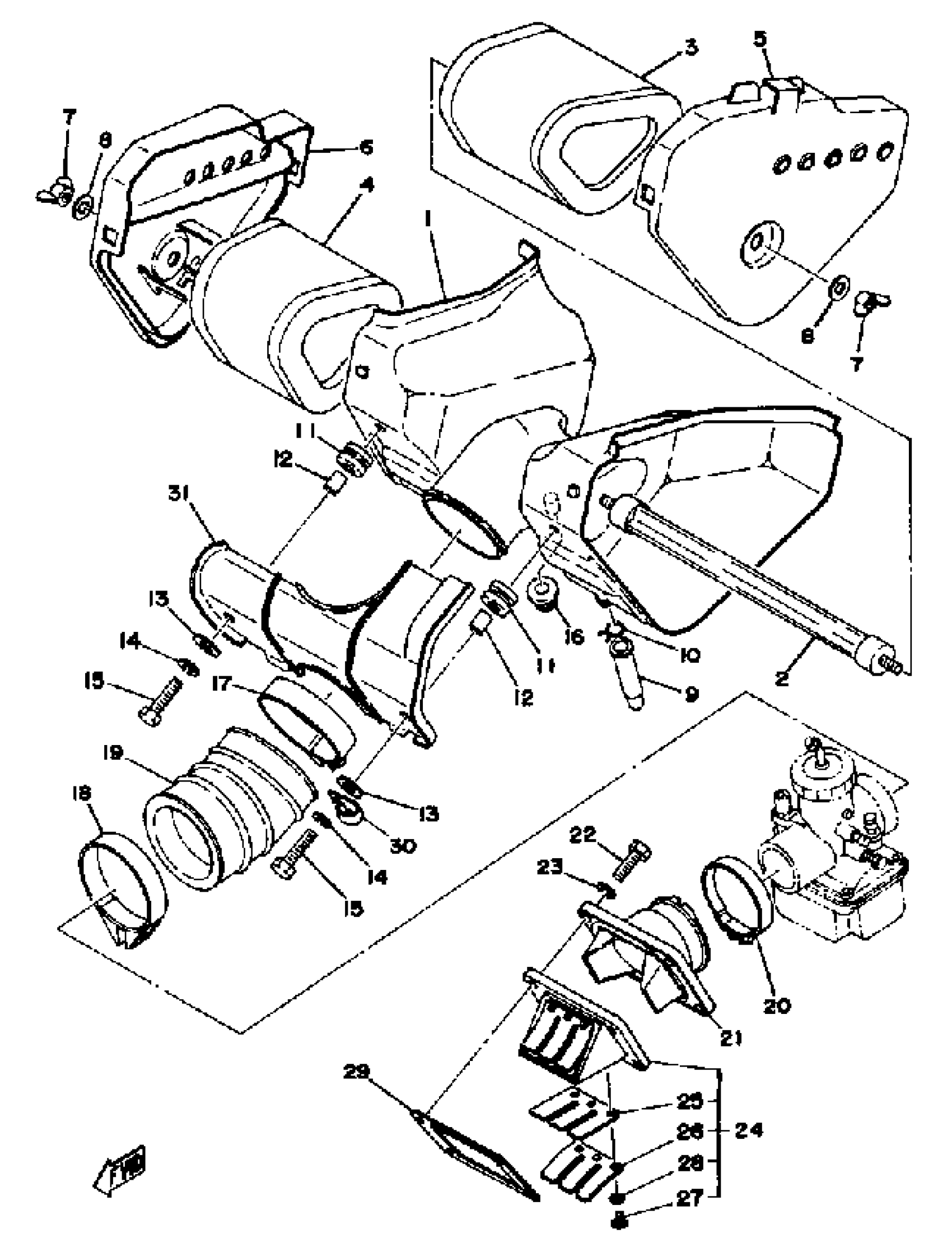

Yamaha YZ400C (YZ400C_D_E) 1976 INTAKE YZ400C Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

(509-14411-01-00)

Unavailable

2

BOLT

(509-14428-00-00)

Unavailable

3

ELEMENT, AIR CLNR

509-14451-09-00

Unavailable

4

ELEMENT, AIR CLNR 2 (509-14412-02)

509-14461-09-00

Unavailable

5

CAP, CLEANER CASE 1

(509-14412-02-00)

Unavailable

6

CAP, CLEANER CASE 2

509-14422-01-00

Unavailable

7

NUT, WING (646)

90175-06008-00

$2.17

8

WASHER, PLATE

90201-06380-00

$0.60

9

SEAL (509-14457-01)

509-14457-00-00

Unavailable

10

CLIP (806-24358-00)

90467-15012-00

$8.49

11

GROMMET 839774310000

90480-14023-00

$7.49

12

COLLAR 437216330000

90387-07391-00

Unavailable

13

WASHER, PLATE

90201-06380-00

$0.60

14

WASHER, SPRING

92995-06100-00

Unavailable

15

BOLT, HEXAGON

97017-06030-00

$3.61

16

GROMMET (509)

90480-18171-00

Unavailable

17

CLAMP, HOSE

(90460-66067-00)

Unavailable

18

CLAMP, HOSE (90460-71017)

90460-71129-00

Unavailable

19

JOINT, AIR CLNR 1

(510-14453-00-00)

Unavailable

20

CLAMP HOSE 304144550000

90460-51059-00

Unavailable

21

MANIFOLD, INTAKE

510-13555-02-00

Unavailable

22

BOLT, HEXAGON

97017-06020-00

Unavailable

23

WASHER, SPRING

92995-06100-00

Unavailable

24

REED VALVE ASSEMBLY

(431-13610-01-00)

Unavailable

25

. REED, VALVE

363-13613-00-00

Unavailable

26

. STOPPER, REED VALVE

363-13616-00-00

Unavailable

27

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

28

WASHER, SPRING

92990-03100-00

Unavailable

29

GASKET, MANIFOLD

8Y7-13556-01-00

Unavailable

30

CLAMP

(90465-06062-00)

Unavailable

31

COVER 1

(510-14417-00-00)

Unavailable
