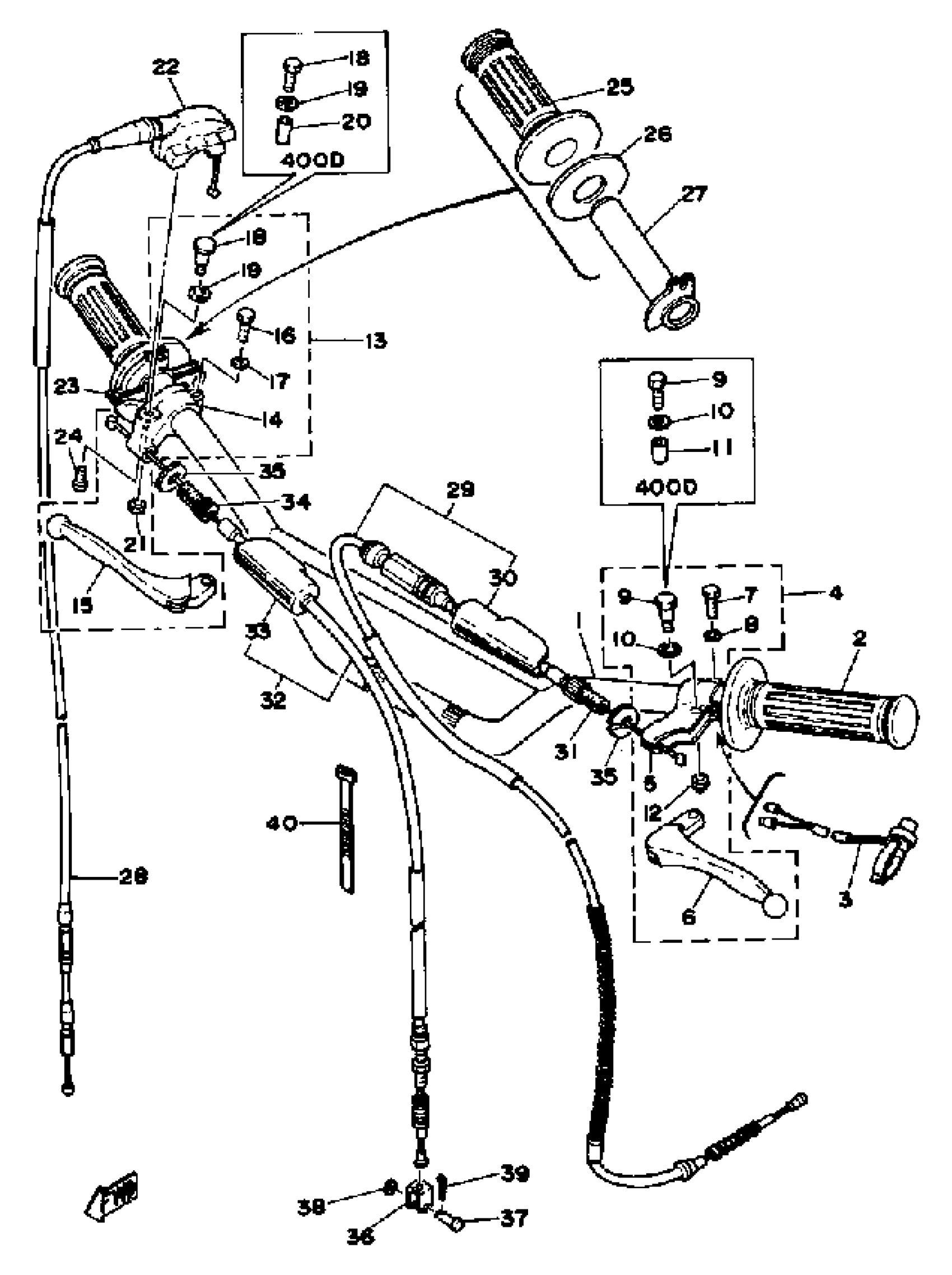

Yamaha YZ400C (YZ400C_D_E) 1976 HANDLE WIRE YZ400D E Diagram

#

Description
Price

1

HANDLE

2A8-26111-00-00

$129.99

2

GRIP, HANDLE (L.H)

1E6-26241-00-00

$34.99

3

SWITCH, HANDLE 1

23X-83976-01-00

Unavailable

4

LEVER HOLDER ASSEMBLY 1 (583-82910-10)

583-82910-11-00

Unavailable

5

HOLDER, LEVER (L.H)

214-82911-01-00

$56.99

6

LEVER, HANDLE (L.H)

1J3-83912-20-00

$44.99

7

BOLT, HEXAGON

97013-06022-00

$0.90

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BOLT(3GB)

90109-061F3-00

$7.49

9

BOLT(3DM)

97024-06020-00

$8.49

10

WASHER, PLATE 1562722600

90201-08083-00

$9.49

11

. COLLAR, LEVER

(214-83913-00-00)

Unavailable

12

NUT, SELF-LOCKING

95617-06100-00

$8.49

13

LEVER HOLDER ASSEMBLY 2

(583-82920-11-00)

Unavailable

14

HOLDER, LEVER 2

516-82921-30-00

Unavailable

15

LEVER (R.H)

2A6-83922-00-00

Unavailable

16

BOLT, HEXAGON

97013-06022-00

$0.90

16

BOLT, HEXAGON

97013-06022-00

$0.90

17

WASHER, SPRING

92995-06100-00

Unavailable

18

BOLT(3GB)

90109-061F3-00

$7.49

18

BOLT(3DM)

97024-06020-00

$8.49

19

WASHER, PLATE 1562722600

90201-08083-00

$9.49

20

. COLLAR, LEVER

(214-83913-00-00)

Unavailable

21

NUT, SELF-LOCKING

95617-06100-00

$8.49

22

CAP, GRIP UPPER (431-26281-01)

431-26281-01-98

Unavailable

23

CAP, GRIP UNDER

431-26282-03-00

Unavailable

24

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

25

GRIP (R.H)

583-26242-00-00

Unavailable

26

RING, LEAF

1W1-26249-00-00

Unavailable

27

TUBE, THRTL GUIDE

431-26243-00-00

Unavailable

28

WIRE, THROTTLE

2K8-26311-01-00

Unavailable

28

WIRE, THROTTLE

2K8-26311-01-00

Unavailable

29

CABLE, CLUTCH (960MM)

1W4-26335-00-00

Unavailable

30

COVER, LEVER

498-26372-00-00

Unavailable

31

BOLT

90123-08002-00

Unavailable

32

CABLE, BRAKE (1230MM)

1W4-26341-01-00

Unavailable

32

CABLE, BRAKE (1230MM)

1W4-26341-02-00

Unavailable

33

COVER, LEVER

498-26372-00-00

Unavailable

34

BOLT

90123-08002-00

Unavailable

34

BOLT

90123-08002-00

Unavailable

35

NUT

90179-08030-00

Unavailable

36

JOINT, WIRE

156-26347-00-00

Unavailable

37

PIN W/HOLE 307181180000

90240-08013-00

Unavailable

38

WASHER, PLATE 1562722600

90201-08083-00

$9.49

39

PIN, COTTER (648)

91490-20015-00

Unavailable

40

BAND, SWITCH CORD

437-83936-01-00

Unavailable
