FRONT WHEEL YZ400C D E

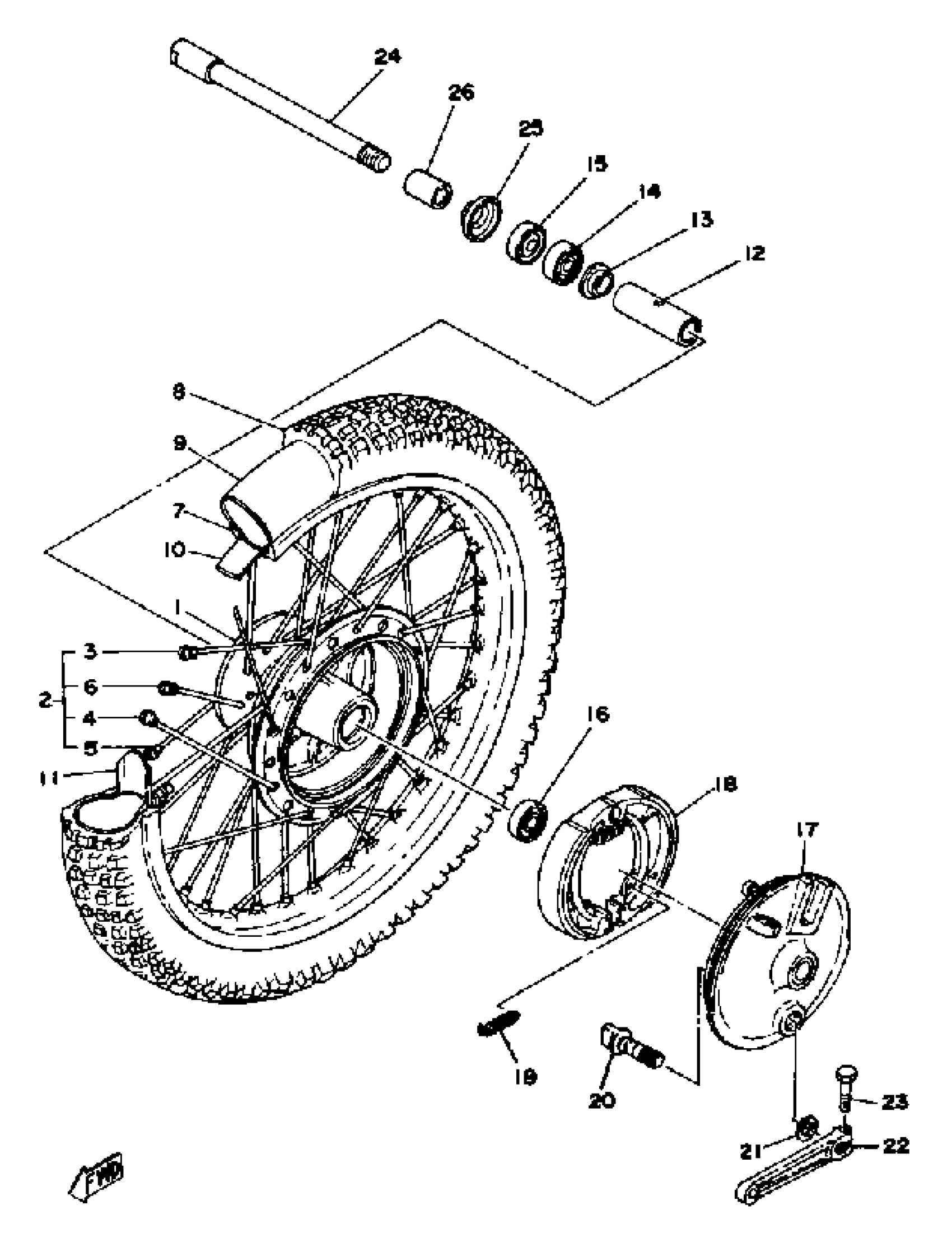

Yamaha YZ400C (YZ400C_D_E) 1976 FRONT WHEEL YZ400C D E Diagram
#
1
HUB, FRONT
1K7-25111-10-98
Unavailable
1
HUB, FRONT
(322-25111-00-98)
Unavailable
2
SPOKE SET, FRONT
2W6-25104-02-00
Unavailable
2
SPOKE SET, FRONT
(322-25104-01-00)
Unavailable
3
SPOKE SET, INNER 1
(1K7-25196-90-00)
Unavailable
3
SPOKE SET, INNER 1
(322-25196-90-00)
Unavailable
4
SPOKE SET, OUTER 1
(1K7-25197-90-00)
Unavailable
4
SPOKE SET, OUTER 1
(322-25197-90-00)
Unavailable
5
SPOKE SET, INNER 2
(1K7-25179-90-00)
Unavailable
5
SPOKE SET, INNER 2
(322-25179-90-00)
Unavailable
6
SPOKE SET, OUTER 2
(1K7-25189-90-00)
Unavailable
6
SPOKE SET, OUTER 2
(322-25189-90-00)
Unavailable
7
RIM 1.60X21
94416-21326-00
Unavailable
8
300X21 IRC MX
(94130-21376-00)
Unavailable
8
300-21 M1B (TT)
(94130-213A4-00)
Unavailable
9
TUBE, FRONT (2A6)
94227-21123-00
Unavailable
9
TUBE, FRONT (2A6)
94227-21123-00
Unavailable
10
BAND, RIM
(94327-21024-00)
Unavailable
11
SPACER, BEAD
1T1-25194-00-00
Unavailable
12
SPACER
90560-15116-00
Unavailable
13
FLANGE, SPACER
146-25116-00-00
Unavailable
14
BEARING
93306-20205-00
Unavailable
15
OIL SEAL (20X35X7-136)
93102-20009-00
Unavailable
16
BRG,R-B 6202Z 35MM 48G NT
93306-20204-00
Unavailable
16
BEARING(3DL)
93306-20226-00
Unavailable
17
BRAKE SHOE PLT ASSEMBLY (1W1-25121-02-98)
1W1-25016-11-98
Unavailable
17
PLATE, BRAKE SHOE
(483-25121-00-98)
Unavailable
18
BRAKE SHOE KIT
322-W253A-10-00
Unavailable
19
SPRING (5T9)
90506-17328-00
Unavailable
20
CAMSHAFT
23X-25151-00-00
Unavailable
21
SEAL, CAMSHAFT
137-25159-00-00
Unavailable
22
UNAVAILABLE IN PRICE BOOK
322-25155-10-00
Unavailable
23
BOLT, HEXAGON (462)
90101-06291-00
Unavailable
23
BOLT, HEXAGON
97017-06025-00
Unavailable
24
AXLE, WHEEL
509-25181-00-00
Unavailable
25
COVER, HUB DUST
322-25118-00-00
Unavailable
26
COLLAR (34L)
90387-152J3-00
Unavailable
