1976 Yamaha YZ400C_D_E (YZ400C) Front Fork YZ400D E Diagram

← All diagrams

Find the part on the Front Fork YZ400D E diagram for your 1976 Yamaha YZ400C_D_E (YZ400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

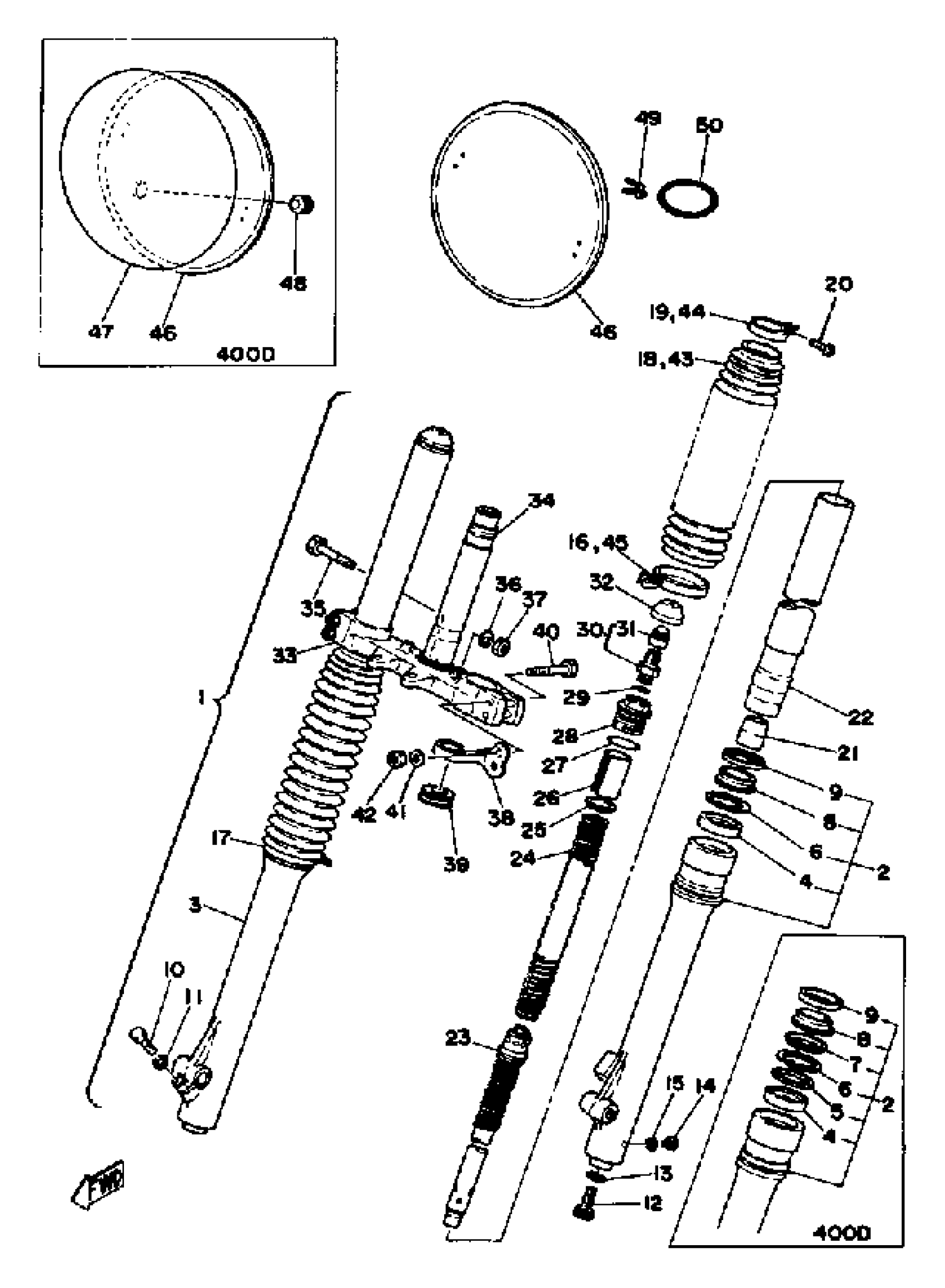

1976 Yamaha YZ400C_D_E (YZ400C) Front Fork YZ400D E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(2K8-23101-L0-00)

1
Out of stock

2

TUBE, OUTER 1

(1W4-23126-L0-00)

1
Out of stock

2

TUBE, OUTER 1

(2K8-23126-L0-00)

1
Out of stock

3

TUBE, OUTER 2

(1W4-23136-L0-00)

1
Out of stock

3

TUBE, OUTER 2

(2K8-23136-L0-00)

1
Out of stock

4

OIL SEAL

3EN-23145-00-00

1

$22.96

In stock

5

WASHER, OIL SEAL

(1W4-23146-L0-00)

1
Out of stock

6

CLIP, OIL SEAL

(1W4-23156-L0-00)

1
Out of stock

7

RING, SNAP

(1W4-23153-L0-00)

1
Out of stock

8

.. SEAL, DUST

1W4-23144-L0-00

1
Out of stock

9

.. COVER, DUST SEAL

1W4-23148-L0-00

1
Out of stock

10

BOLT, AXLE HOLDER

(1W4-23128-L0-00)

1
Out of stock

11

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

12

. BOLT, HEX SCKT HEAD

1T3-23181-50-00

1
Out of stock

12

BOLT, HEX SCKT HEAD

(2K8-23181-L0-00)

1
Out of stock

13

GASKET

2K8-23158-L0-00

—
Out of stock

13

GASKET

509-23158-L0-00

—

$14.34

In stock

14

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

15

GASKET, DRAIN PLUG

122-23129-00-00

—

$6.37

In stock

16

HOLDER, CABLE 1

(1W4-23318-L1-00)

1
Out of stock

16

HOLDER, CABLE 1

(2K8-23318-L0-00)

1
Out of stock

17

BAND

1W4-23489-L0-00

1
Out of stock

18

. BOOT, FRONT FORK

1W4-23191-L0-00

1
Out of stock

19

BAND, BOOT

341-92090-60-00

—
Out of stock

20

SCREW

509-23194-L0-00

—

$4.12

In stock

21

SPINDLE, TAPER

(1W4-23173-L0-00)

1
Out of stock

21

SPINDLE, TAPER

(3R4-23173-L0-00)

1
Out of stock

22

INNER TUBE 1

(2K8-23110-L0-00)

1
Out of stock

23

CYLINDER, FRTFRK

(1W4-23170-L0-00)

1
Out of stock

23

CYLINDER, FRTFRK

(2K8-23170-L0-00)

1
Out of stock

24

SPRING, FRONT FORK

(1W4-23141-10-00)

1
Out of stock

24

SPRING, FRONT FORK

(1W4-23141-20-00)

1
Out of stock

24

SPRING, FRONT FORK

(1W4-23141-L0-00)

1
Out of stock

25

. SEAT, SPRING UPPER

1W4-23142-L0-00

1
Out of stock

26

SPACER

(1W4-23118-L0-00)

1
Out of stock

27

O-RING

1W4-23114-L0-00

—

$7.45

In stock

28

. BOLT, CAP

1W4-23111-L1-00

1
Out of stock

29

. O-RING

509-23163-L0-00

1
Out of stock

30

. AIR VALVE

509-23190-L0-00

1
Out of stock

31

CAP, AIR VALVE

509-23184-L0-00

—

$6.48

In stock

32

. COVER, VALVE

1W1-23185-L0-00

1
Out of stock

33

BRACKET, LOWER

(1W4-23345-L1-33)

1
Out of stock

34

SHAFT, STEERING

(1W1-23341-L0-00)

1
Out of stock

35

BOLT 2

(1W1-23356-L0-00)

1
Out of stock

36

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

37

NUT

(322-23357-00-00)

1
Out of stock

38

. HOLDER, CABLE

1W1-23317-01-00

1
Out of stock

39

GUIDE, WIRE

1W1-23389-00-00

—

$24.12

In stock

40

BOLT (1E6)

90101-08340-00

—

$2.72

In stock

41

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

41

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

42

NUT, HEXAGON

(90170-08180-00)

1
Out of stock

42

NUT(6L2)

95333-08600-00

—

$3.20

In stock

43

BOOT, FRONT FORK

2K8-23191-L0-00

1
Out of stock

44

BAND, BOOT

341-92090-60-00

—
Out of stock

45

BAND

1W4-23489-L0-00

1
Out of stock

46

. BAND

2X4-23489-00-00

1
Out of stock

46

PLATE, NUMBER

322-23485-00-00

1
Out of stock

46

. PLATE, NUMBER

3R0-23485-00-00

1
Out of stock

46

HOSE

(90446-09158-00)

1
Out of stock

46

PLATE NUMBER

(99999-01016-00)

1
Out of stock

47

EMBLEM

322-23395-00-00

1
Out of stock

48

GROMMET (1W1)

90480-17213-00

—
Out of stock

49

STAY, PLATE

431-23486-02-00

1
Out of stock

50

O-RING (3.0-69.0)

93210-69355-00

1
Out of stock
