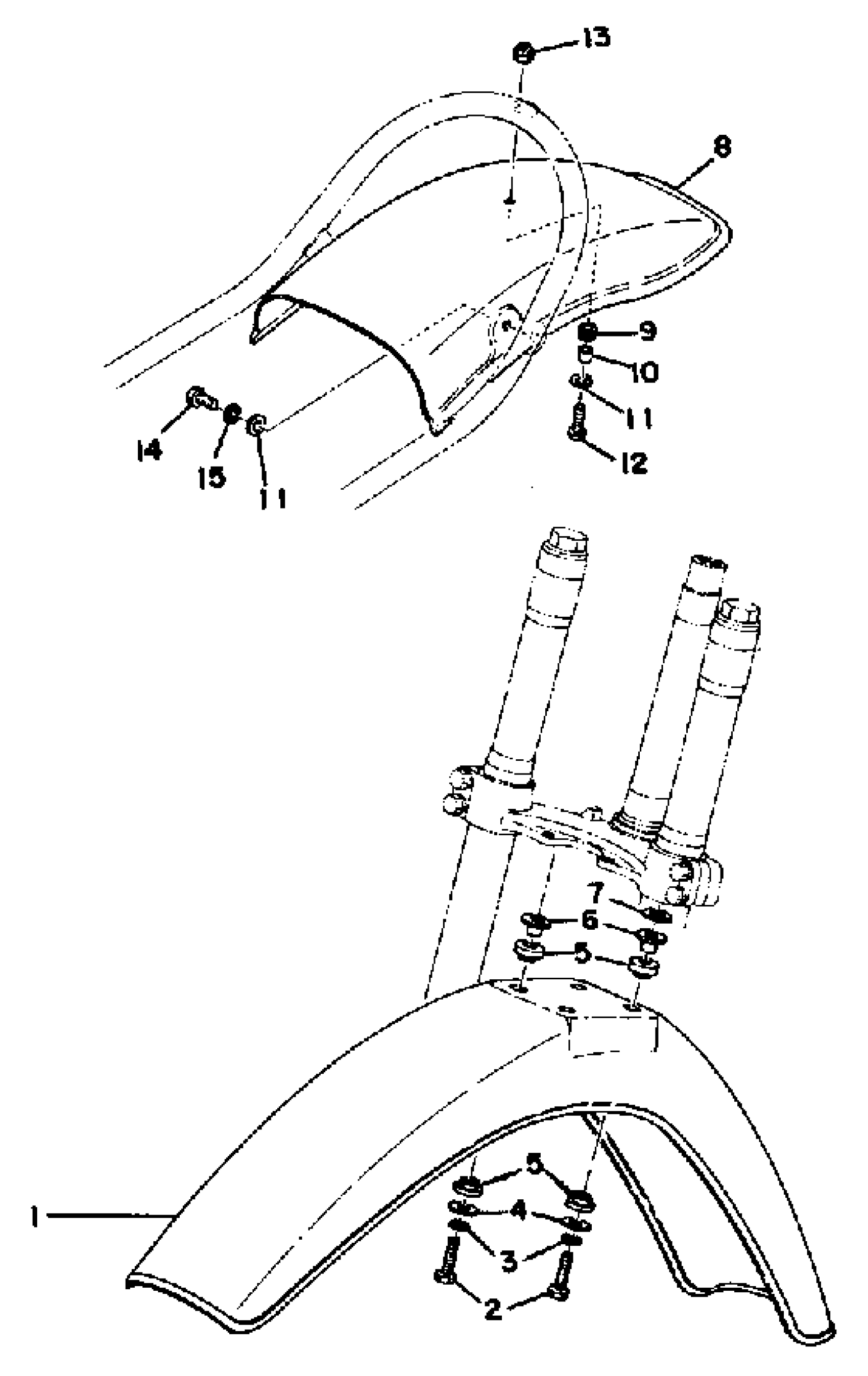

Yamaha YZ400C (YZ400C_D_E) 1976 FRONT FENDER REAR FENDER YZ400C Diagram

#

Description
Price

1

FENDER, FRONT

453-21511-01-00

Unavailable

2

BOLT, HEXAGON

97017-06030-00

$3.61

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

DAMPER, FENDER

322-21541-00-00

$7.99

6

COLLAR

90387-06158-00

$8.49

7

SPACER

(90560-06151-00)

Unavailable

8

FENDER, REAR

363-21611-00-00

Unavailable

9

GROMMET (431)

90480-14052-00

$5.60

10

COLLAR (3H5)

90387-060A3-00

$8.49

11

WASHER, PLATE

90201-06380-00

$0.60

12

BOLT, HEXAGON

97017-06020-00

$4.06

13

NUT, SELF-LOCKING

95617-06100-00

$8.49

14

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

15

WASHER, SPRING

92995-06100-00

Unavailable
