FRAME SIDE COVER YZ400D E

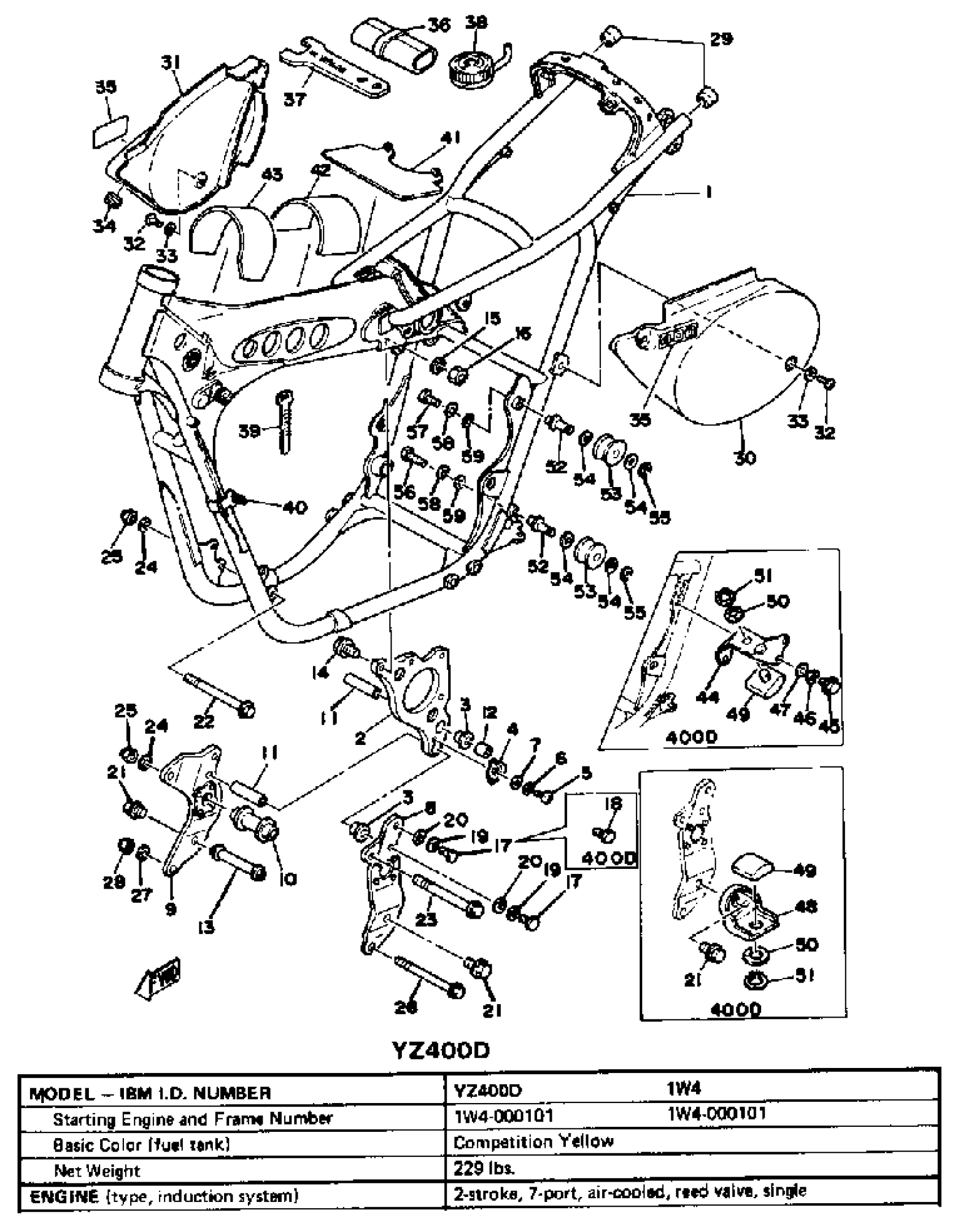

Yamaha YZ400C (YZ400C_D_E) 1976 FRAME SIDE COVER YZ400D E Diagram
#
1
FRAME
(1W4-21110-00-33)
Unavailable
1
FRAME
(2K8-21110-00-33)
Unavailable
2
BRACKET, REAR UPR 1
(1W4-21425-00-00)
Unavailable
3
BUSH, SOLID
90381-14026-00
Unavailable
4
PLATE, PATCH
(1W4-21456-00-00)
Unavailable
5
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
8
BRACKET, REAR LWR 1
1W4-21427-00-00
Unavailable
9
BRACKET, REAR LWR 2
(1W4-21428-00-00)
Unavailable
10
SPACER
1W4-21459-00-00
Unavailable
11
BOSS, ENGINE MOUNT
(1W4-21414-00-00)
Unavailable
12
COLLAR
(90387-14625-00)
Unavailable
13
BOSS, ENGINE MOUNT
(1W4-21424-00-00)
Unavailable
15
WASHER, PLAIN
92990-08200-00
Unavailable
16
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
17
BOLT, HEXAGON
97013-08020-00
Unavailable
17
BOLT, HEXAGON
97013-08020-00
Unavailable
18
BOLT, HEXAGON
97017-08025-00
Unavailable
19
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
20
.. WASHER, PLATE
92990-08600-00
Unavailable
21
BOLT, FLANGE(JN5)
95817-08016-00
Unavailable
22
BOLT, FLANGE
95817-08115-00
Unavailable
23
BOLT, FLANGE(2UJ)
95814-08110-00
Unavailable
24
WASHER, PLAIN
92990-08200-00
Unavailable
25
NUT, SELF-LOCKING (3Y2)
90185-08089-00
Unavailable
26
BOLT, WASHER BASED (2H7)
90105-10105-00
Unavailable
27
958-69527-00 WASHER, PLAIN
92990-10200-00
Unavailable
28
NUT, SELFLOCKING (533 FRAME)
90185-10060-00
Unavailable
29
PLUG (2K5)
90339-13005-00
Unavailable
30
COVER, SIDE 1
1W4-21711-00-00
Unavailable
31
COVER, SIDE 2
1W4-21721-00-00
Unavailable
32
SCREW, BIND(J45)
98980-06012-00
Unavailable
33
WASHER, PLATE
90201-06380-00
Unavailable
34
DAMPER, SIDE COVER (437)
90480-12053-00
Unavailable
35
EMBLEM 6
(1W4-21786-00-00)
Unavailable
36
TOOL KIT
(1W4-28100-00-00)
Unavailable
37
SPANNER, SPECIAL
10V-28135-00-00
Unavailable
38
GAUGE, AIR
(1W1-2811A-00-00)
Unavailable
39
BAND, SWITCH CORD
437-83936-01-00
Unavailable
40
BAND, SWITCH CORD
437-83936-11-00
Unavailable
41
DAMPER, LOCATING 1
(1W1-24181-00-00)
Unavailable
42
DAMPER, LOCATING 3
1W1-24183-00-00
Unavailable
43
DAMPER, LOCATING 3
(1W4-24183-00-00)
Unavailable
44
STAY, CHAIN CASE 3
(1W4-22133-00-00)
Unavailable
45
BOLT(3JP)
97017-06010-00
Unavailable
46
WASHER, SPRING
92995-06100-00
Unavailable
47
WASHER, PLAIN (646)
92990-06600-00
Unavailable
48
PLATE
(1W4-21329-00-00)
Unavailable
49
GUIDE, CHAIN
1W4-22187-00-00
Unavailable
50
WASHER, WAVE (583 CHAIN PROTEC
90206-15023-00
Unavailable
51
CIRCLIP(1AR)
99009-15400-00
Unavailable
52
SHAFT
2K6-2148A-01-00
Unavailable
53
TENSIONER
2K6-22178-00-00
Unavailable
54
WASHER, PLATE
90201-13013-00
Unavailable
55
CIRCLIP (137)
93430-10015-00
Unavailable
56
BOLT, HEXAGON
97013-08030-00
Unavailable
57
BOLT, HEXAGON
97013-08020-00
Unavailable
58
YBS67-8 WASHER, SPRING
92990-08100-00
Unavailable
59
WASHER, PLAIN
92990-08200-00
Unavailable
