1976 Yamaha YZ400C_D_E (YZ400C) Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1976 Yamaha YZ400C_D_E (YZ400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

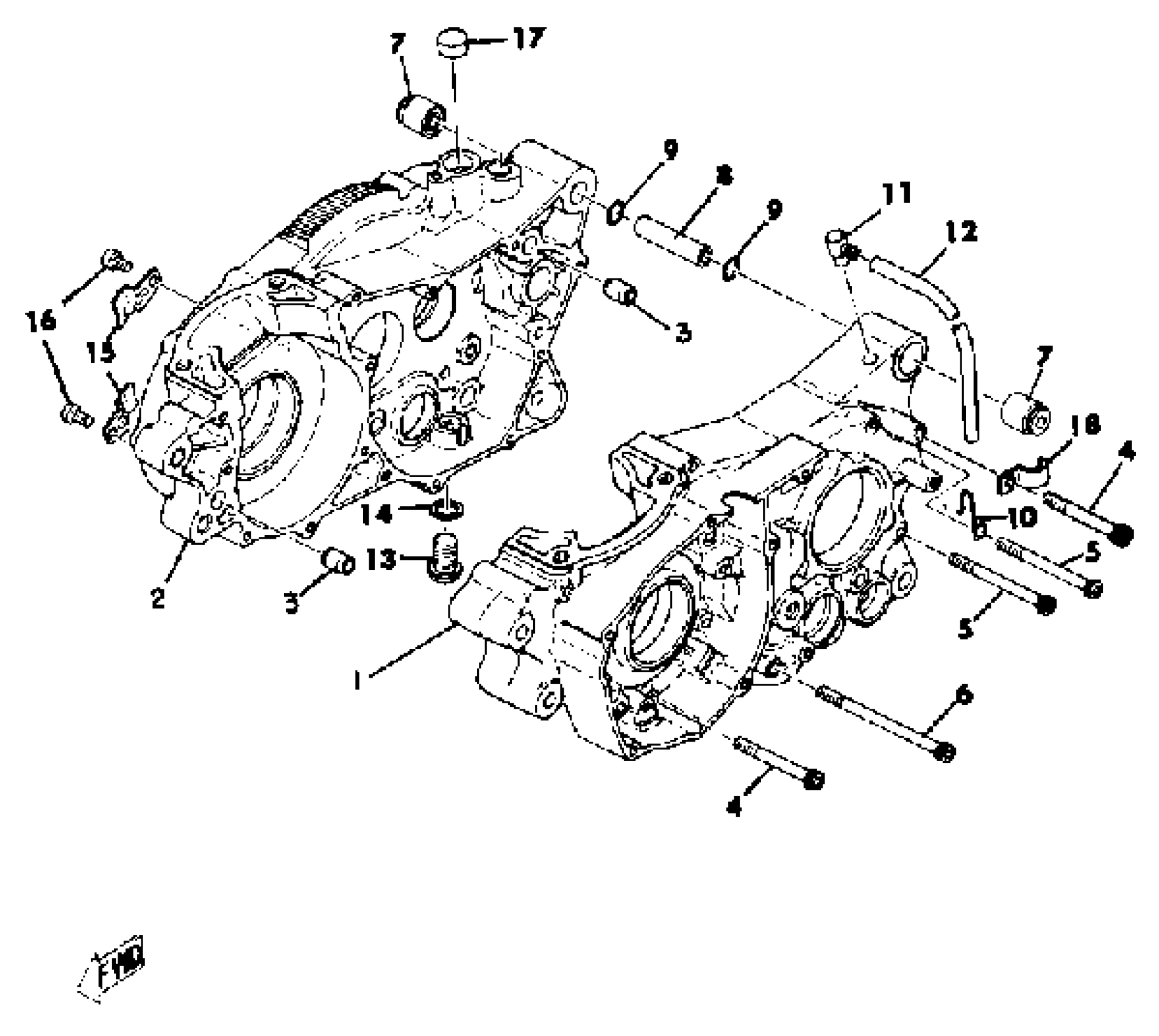

1976 Yamaha YZ400C_D_E (YZ400C) Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1

(510-15111-00-00)

1
Out of stock

2

CRANKCASE 2

(510-15121-00-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT,SOCKET

91317-06055-00

1

$3.57

In stock

5

BOLT, SOCKET

91317-06070-00

1

$3.46

In stock

6

BOLT, SOCKET HEAD

91316-06095-00

1
Out of stock

7

DAMPER

90388-08003-00

1

$16.29

In stock

8

SPACER, ENGINE MOUNT

438-15317-00-00

1
Out of stock

9

O-RING (P95)

93210-11073-00

1
Out of stock

10

CLAMP

90465-20035-00

1
Out of stock

11

BREATHER

583-15371-00-00

1
Out of stock

12

HOSE (L570)

90445-07MF1-00

1

$8.45

In stock

13

BOLT

90109-14385-00

1

$13.66

In stock

14

GASKET

214-11198-01-00

1

$2.66

In stock

15

HOLDER

434-15118-00-00

1
Out of stock

16

SCREW,PAN HEAD

98580-08012-00

1
Out of stock

17

PLUG 363174810000

90338-20023-00

—

$5.14

In stock

18

CLAMP 363154850100

90462-05005-00

—

$6.92

In stock
