1976 Yamaha YZ400C_D_E (YZ400C) Crankcase YZ400D E Diagram

← All diagrams

Find the part on the Crankcase YZ400D E diagram for your 1976 Yamaha YZ400C_D_E (YZ400C), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

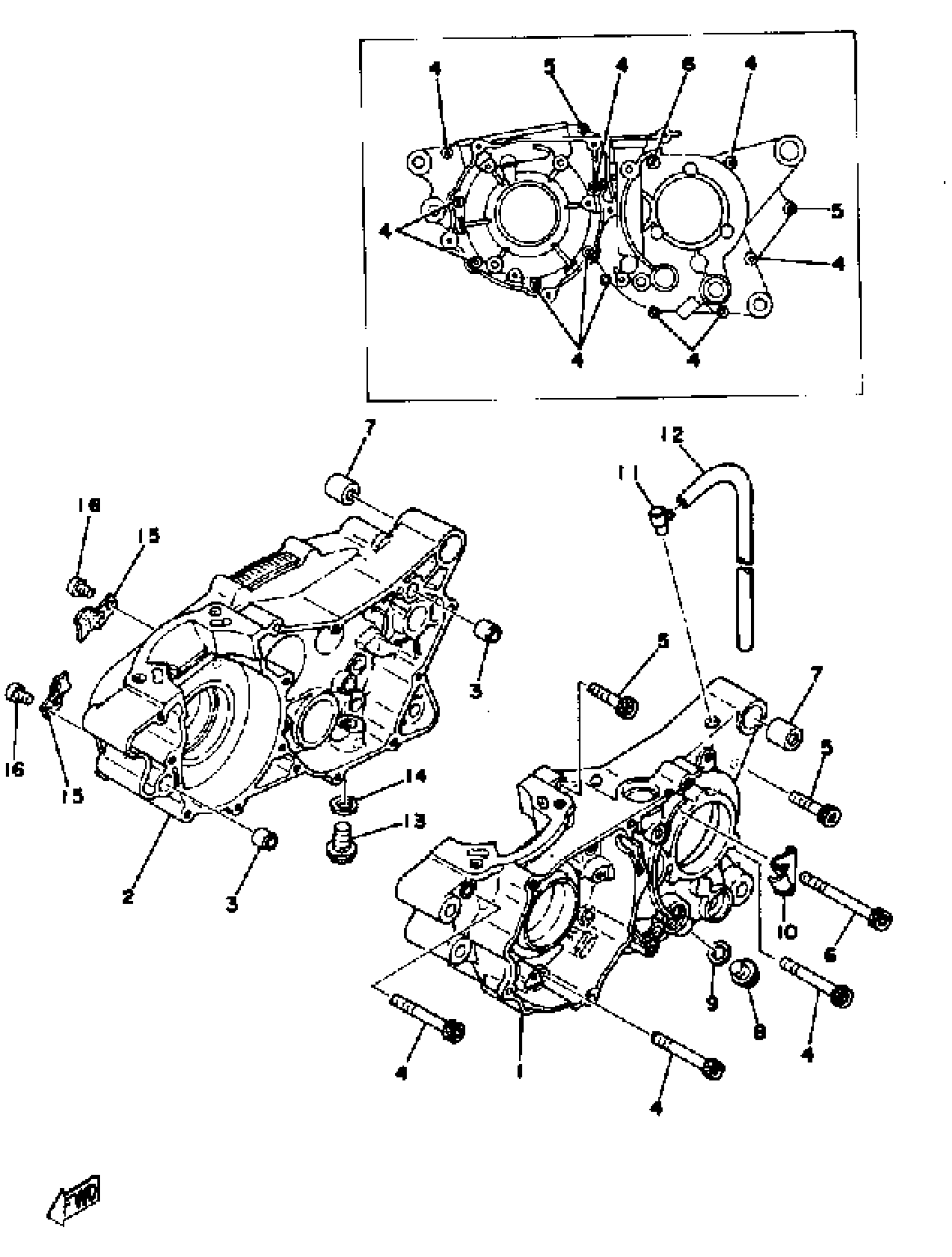

1976 Yamaha YZ400C_D_E (YZ400C) Crankcase YZ400D E Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE 1 (1M2-15111-00)

1M2-15111-01-00

1
Out of stock

2

CRANKCASE 2

(1M2-15121-01-00)

1
Out of stock

3

PIN, DOWEL

99530-12016-00

1

$4.12

In stock

4

BOLT,SOCKET

91317-06060-00

1
Out of stock

5

BOLT,SOCKET

91317-06035-00

1

$3.47

In stock

6

BOLT,SOCKET

91317-06080-00

—

$3.78

In stock

7

COLLAR

(90387-08607-00)

1
Out of stock

9

GASKET (5R6)

90430-10171-00

1

$3.17

In stock

10

CLAMP

(90462-14033-00)

1
Out of stock

11

BREATHER

583-15371-00-00

1
Out of stock

12

HOSE (L1050)

90445-072G8-00

1

$23.46

In stock

13

PLUG, STRAIGHT SCRW

90340-14048-00

1
Out of stock

14

WASHER, PROTECTOR

4F4-14766-00-00

1

$6.11

In stock

15

HOLDER

434-15118-00-00

1
Out of stock

16

SCREW, PAN

98507-08010-00

1
Out of stock
