- YZ400C (YZ400C_D_E) 1976
CRANK PISTON YZ400C D E

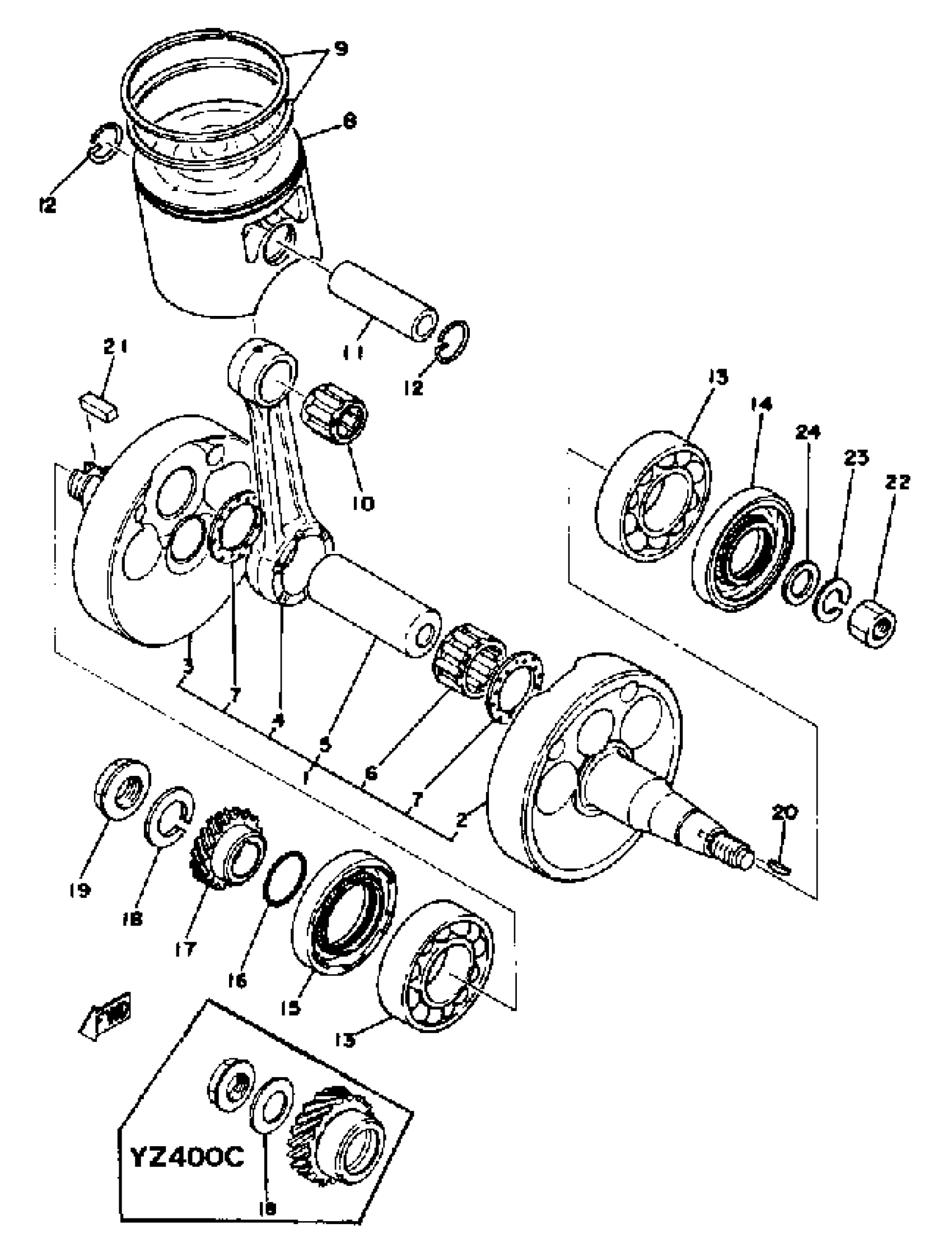

Yamaha YZ400C (YZ400C_D_E) 1976 CRANK PISTON YZ400C D E Diagram
#
1
CRANKSHAFT ASSEMBLY
(2K8-11400-00-00)
Unavailable
1
CRANKSHAFT ASSEMBLY
(510-11400-02-00)
Unavailable
2
CRANK 1
(1W4-11412-00-00)
Unavailable
2
CRANK 1
(2K8-11412-00-00)
Unavailable
2
. UNAVAILABLE IN PRICE BOOK
510-11120-10-0
Unavailable
3
CRANK 2
(1W4-11422-00-00)
Unavailable
3
CRANK 2
(2K8-11422-00-00)
Unavailable
3
CRANK 2
(510-11422-00-00)
Unavailable
4
. ROD, CONNECTING
431-11651-00-00
Unavailable
6
BEARING, CYLINDRICAL(4JW)
93310-425P2-00
Unavailable
8
PISTON STD
(2K8-11631-00-96)
Unavailable
8
. PISTON 1 O/S 025 (1W4-11635-00)
2K8-11635-00-00
Unavailable
8
. PISTON 2 O/S 050 (1W4-11636-00)
2K8-11636-00-00
Unavailable
8
. PISTON 3 O/S 075 (510-11637-05)
2K8-11637-00-00
Unavailable
8
. PISTON 4 O/S 100 (510-11638-05)
2K8-11638-00-00
Unavailable
8
PISTON KIT STD
(510-11630-02-00)
Unavailable
8
PISTON KIT 1ST
(510-11630-12-00)
Unavailable
8
PISTON KIT 2ND
(510-11630-22-00)
Unavailable
8
PISTON KIT 3RD
(510-11630-32-00)
Unavailable
8
PISTON KIT 4TH
(510-11630-42-00)
Unavailable
9
PISTON RINGSET STD
(510-11601-03-00)
Unavailable
9
PISTON RINGSET 1ST
510-11601-13-00
Unavailable
9
PISTON RINGSET 2ND
510-11601-23-00
Unavailable
9
PISTON RINGSET 3RD
510-11601-33-00
Unavailable
9
PISTON RINGSET 4TH
510-11601-43-00
Unavailable
10
BRG,CYL-CAL ROLLER 15.6G KY
93310-218A6-00
Unavailable
11
PIN, PISTON
275-11633-00-00
Unavailable
12
CLIP 6041163400
93450-20026-00
Unavailable
13
BRG,R-B 6306 72MM 351G KY
93306-30615-00
Unavailable
14
OIL SEAL(38V)
93103-30150-00
Unavailable
15
OIL SEAL (434)
93103-40091-00
Unavailable
16
O-RING (498)
93210-29282-00
Unavailable
17
GEAR, PRI DRIVE
(1W4-16111-00-00)
Unavailable
17
GEAR, PRI DRIVE
(510-16111-00-00)
Unavailable
18
SPRING
214-16119-00-00
Unavailable
18
WASHER(N15)
92907-18100-00
Unavailable
19
NUT (498)
90179-18172-00
Unavailable
20
KEY, WOODRUFF
90280-05001-00
Unavailable
21
KEY, STRAIGHT (498)
90282-07019-00
Unavailable
22
NUT, HEXAGON (525)
90170-12181-00
Unavailable
23
YBS67-12 WASHER,SPRING
92990-12100-00
Unavailable
24
WASHER (492)
90201-12535-00
Unavailable
24
WASHER, PLATE (583)
90201-12593-00
Unavailable
