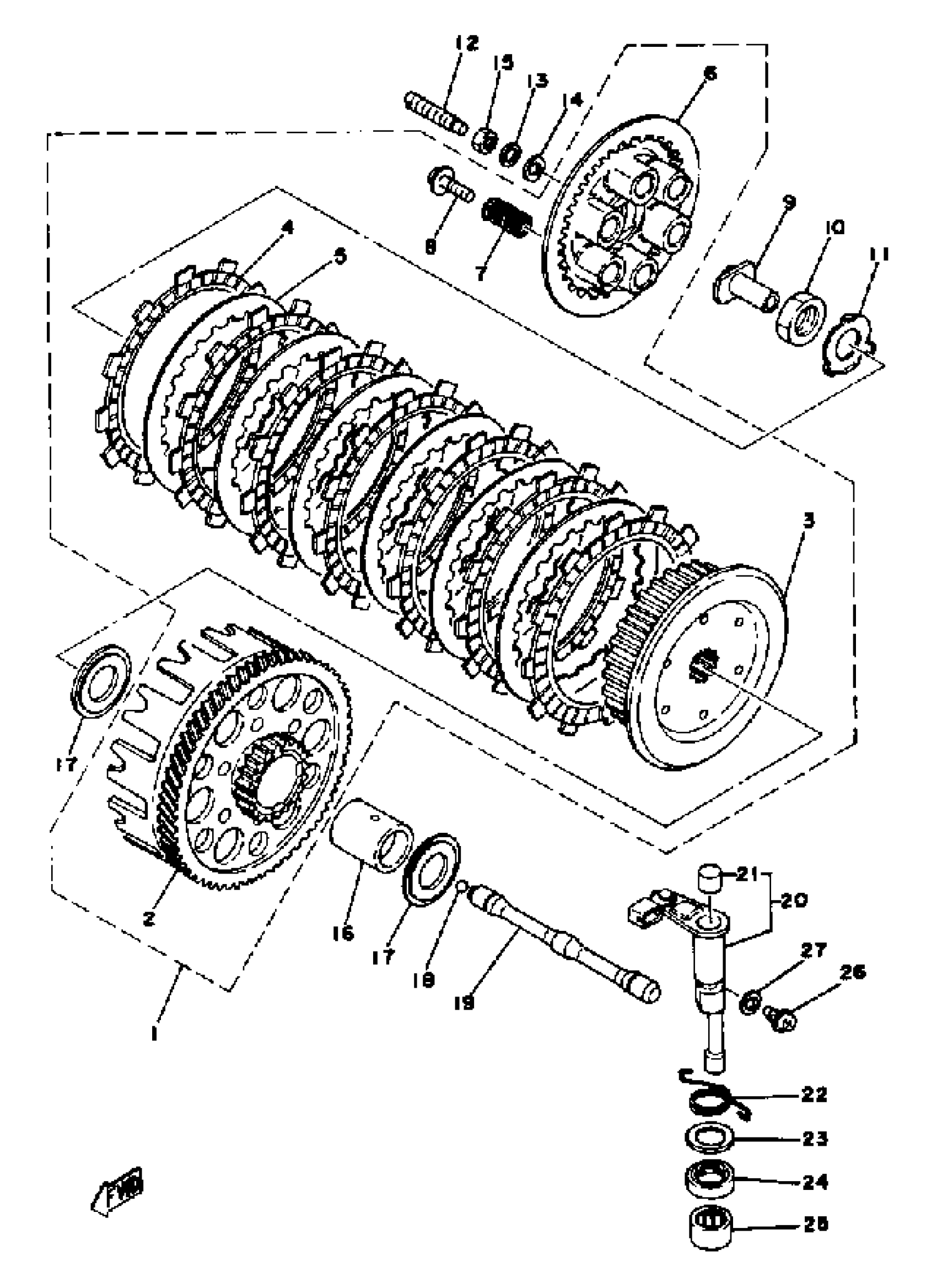

Yamaha YZ400C (YZ400C_D_E) 1976 CLUTCH YZ400D E Diagram

#

Description
Price

1

CLUTCH ASSEMBLY

(1W4-16301-00-00)

Unavailable

2

. PRI DRVN GEAR

1W4-16150-00-00

Unavailable

3

. BOSS, CLUTCH

509-16371-01-00

Unavailable

4

PLATE, FRICTION

4H7-16321-02-00

$23.99

5

PLATE, CLUTCH 2

360-16325-10-00

$35.99

6

. PLATE, PRESSURE 1

1M1-16351-00-00

Unavailable

7

SPRING, COMPRESSION (510)

90501-24408-00

$5.60

8

SCREW, WITH WASHER (1W4)

90159-06016-00

$8.49

9

ROD, PUSH 1

1M1-16356-00-00

Unavailable

10

NUT (3R4)

90170-20255-00

$10.49

11

WASHER, LOCK (3Y1)

90215-20159-00

Unavailable

12

SCREW, SPECIAL SHAPE

90149-08105-00

Unavailable

13

WASHER, PLAIN

92990-08200-00

Unavailable

14

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

15

NUT, HEXAGON SMALL

95317-08700-00

$9.49

16

SPACER 1

1M1-16181-00-00

Unavailable

17

PLATE, THRUST

360-16154-00-00

Unavailable

18

BALL (1M1)

93515-32029-00

Unavailable

19

ROD, PUSH 2

1W4-16357-00-00

Unavailable

20

PUSH LEVER ASSEMBLY

1W4-16380-00-00

Unavailable

21

. PLUG, BLIND

214-17481-00-00

Unavailable

22

SPRING, TORSION

90508-14360-00

Unavailable

23

WASHER PLATE 168217580000

90201-18262-00

Unavailable

24

OIL SEAL (17X28X6-101)

93102-17004-00

Unavailable

25

BRG,CYL-CAL ROLLER 10G KY

93315-11720-00

Unavailable

26

SCREW (1M1)

90149-08108-00

Unavailable

27

GASKET(3AJ)

90430-08204-00

Unavailable
