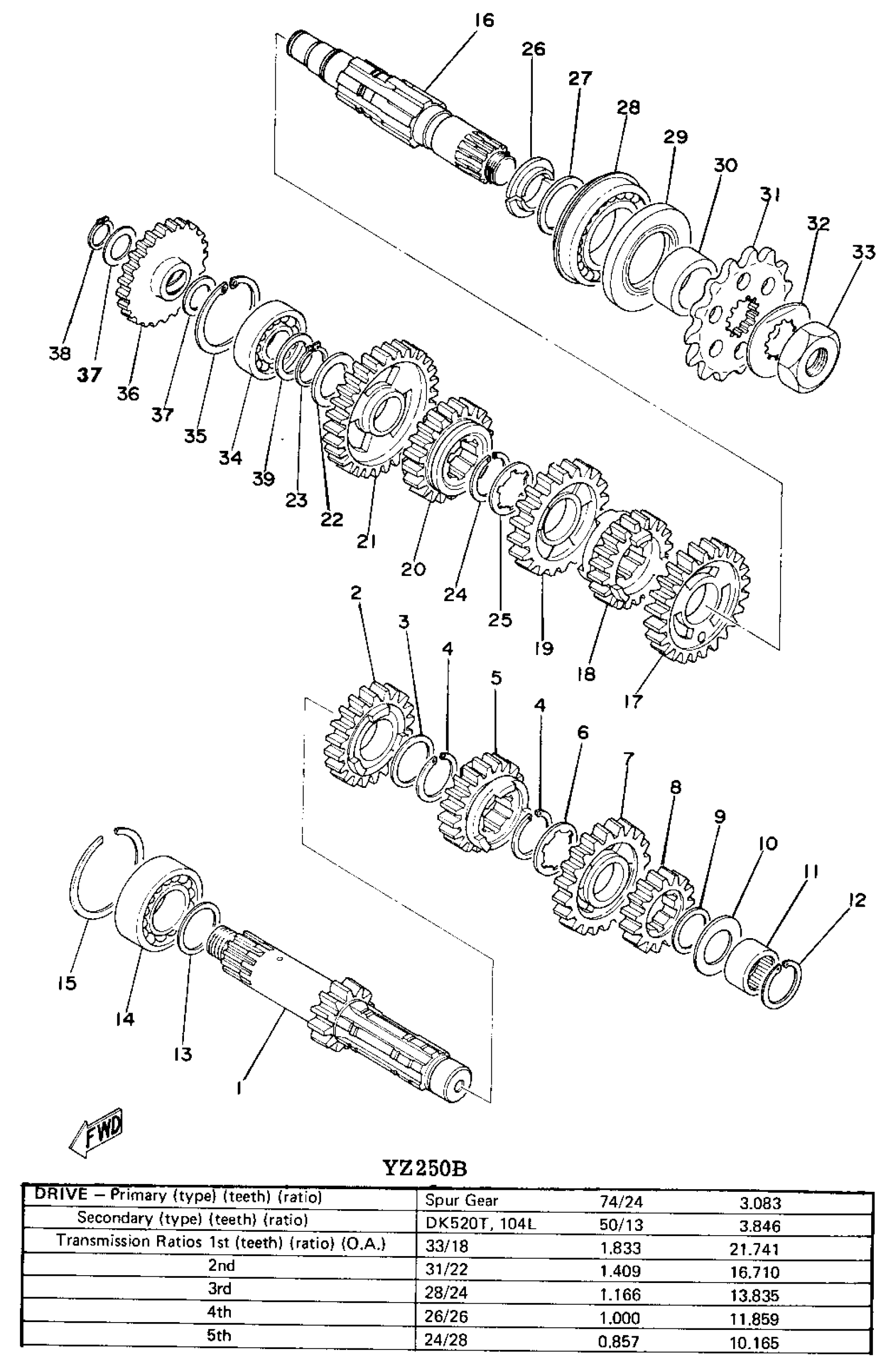

Yamaha YZ360B (YZ250B_360B) 1975 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(431-17411-01-00)

Unavailable

2

GEAR, 4TH PINION

(431-17141-00-00)

Unavailable

3

WASHER PLATE 152172260000

90201-25490-00

$10.49

4

CIRCLIP (4L0)

93440-25084-00

$5.60

5

GEAR, 3RD PINION

(431-17131-00-00)

Unavailable

5

GEAR, 3RD PINION 001

(431-17131-01-00)

Unavailable

6

WASHER, SPEC''L SHAP

(90209-21080-00)

Unavailable

7

GEAR, 5TH PINION

(431-17151-01-00)

Unavailable

8

GEAR, 2ND PINION

(431-17121-00-00)

Unavailable

9

WASHER PLATE 132172160000

90201-20266-00

$9.49

10

SHIM 1

(137-17427-00-09)

Unavailable

11

BEARING

93315-22004-00

Unavailable

12

CIRCLIP, R-TYPE (R-26)

93420-26024-00

Unavailable

13

SHIM 1

156-17417-00-01

Unavailable

13

SHIM 1 (25.1-31-0.2)

156-17417-00-02

Unavailable

13

SHIM 1

156-17417-00-03

Unavailable

14

BEARING

93306-20503-00

Unavailable

15

CIRCLIP, INNER

(93450-52014-00)

Unavailable

16

AXLE, DRIVE

(291-17421-00-00)

Unavailable

17

GEAR, 2ND WHEEL

(431-17221-00-00)

Unavailable

18

GEAR, 5TH WHEEL

(431-17251-00-00)

Unavailable

19

GEAR, 3RD WHEEL

(431-17231-01-00)

Unavailable

20

GEAR, 4TH WHEEL

(431-17241-00-00)

Unavailable

21

GEAR, 1ST WHEEL

(431-17211-01-00)

Unavailable

22

WASHER PLATE 168171160000

90201-20278-00

Unavailable

23

CIRCLIP(1EY)

99009-19400-00

Unavailable

24

CIRCLIP (4L0)

93440-25084-00

$5.60

25

WASHER, SPEC''L SHAP

(90209-21080-00)

Unavailable

26

SPACER, DRIVE AXLE

156-17429-00-00

Unavailable

27

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

Unavailable

27

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

Unavailable

28

BRG,R-B 6305 62MM 225G NK

93306-30504-00

Unavailable

29

OIL SEAL (35X62X6-371)

93102-35109-00

Unavailable

30

COLLAR

(90387-25193-00)

Unavailable

31

SPROCKET, DRIVE (13T)

9383E-13216-00

Unavailable

31

SPROCKET, DRIVE

4DN-17460-00-00

Unavailable

32

WASHER, LOCK(3LD)

90215-21290-00

Unavailable

33

NUT 152174630000

90179-18020-00

Unavailable

34

BRG,R-B 6203 42MM 70G KY

93306-20306-00

Unavailable

35

CIRCLIP(5U8)

99009-42500-00

Unavailable

36

GEAR, KICK IDLE (23T)

275-15651-00-00

Unavailable

37

SHIM, MAIN AXLE (1.0)

164-17417-00-10

Unavailable

38

CIRCLIP(1AR)

99009-15400-00

Unavailable

39

SHIM 1

(150-17417-00-03)

Unavailable

39

SHIM 1

(150-17417-00-05)

Unavailable

39

SHIM 2

(214-17428-00-07)

Unavailable
