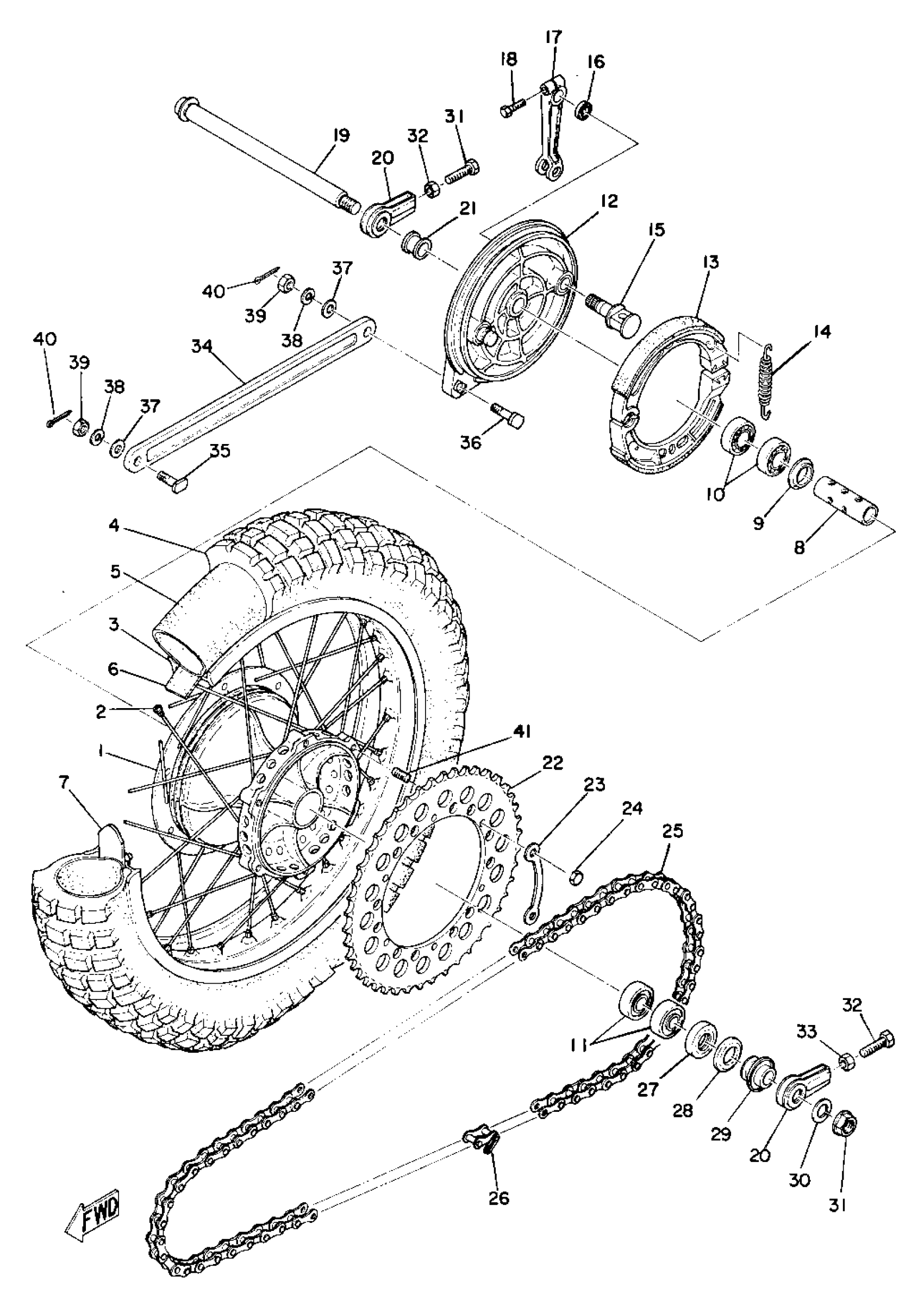

Yamaha YZ360B (YZ250B_360B) 1975 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(483-25311-13-98)

Unavailable

2

SPOKE SET, REAR (431-25304-00)

431-25304-01-00

Unavailable

2

SPOKE SET, INNER 1

(431-25391-90-00)

Unavailable

2

SPOKE SET, OUTER 1

(431-25392-90-00)

Unavailable

2

SPOKE SET, INNER 2

(431-25396-90-00)

Unavailable

3

RIM 2.15X18 (94421-18151) (2.15-18)

94421-18238-00

Unavailable

4

460X18 DUN SR SPRT

(94146-18109-00)

Unavailable

5

TUBE

(94246-18040-00)

Unavailable

6

BAND, RIM (2J4)

94340-18086-00

$17.99

7

SPACER,BEAD

1T1-25394-01-00

Unavailable

8

SPACER, BEARING

483-25317-01-00

Unavailable

9

FLANGE, SPACER

483-25315-00-00

Unavailable

10

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

11

BRG,R-B 6203RS 40MM 63.3G KY

93306-20310-00

$37.99

12

PLATE, BRAKE SHOE

(483-25321-00-98)

Unavailable

13

BRAKE SHOE SET-2PCS

431-W2536-00-00

Unavailable

14

SPRING, TENSION 2462533300

90507-20002-00

Unavailable

15

CAMSHAFT

(431-25351-00-00)

Unavailable

16

OIL SEAL (2K8)

93109-14021-00

Unavailable

17

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

18

BOLT, HEXAGON

97017-06025-00

Unavailable

19

AXLE, WHEEL

(431-25381-00-00)

Unavailable

20

PULLER, CHAIN 1

431-25388-00-00

Unavailable

21

COLLAR

90387-17215-00

Unavailable

22

SPROCKET, DRIVN 48T

(431-25448-04-XX)

Unavailable

22

SPROCKET, DRIVN 48T

(431-25448-04-XX)

Unavailable

22

SPROCKET, DRIVN 50TSPROCKET WHEEL (50T)

431-25450-04-XX

Unavailable

22

SPROCKET, DRIVN 52T

(431-25452-04-XX)

Unavailable

22

SPROCKET, DRIVN 52T

(431-25452-04-XX)

Unavailable

22

SPROCKET, DRIVN 54TSPROCKET WHEEL (54T)

431-25454-04-XX

Unavailable

23

WASHER

(431-25412-00-00)

Unavailable

24

NUT, HEXAGON (509)

90170-08158-00

Unavailable

25

520 DS 110L

94585-20110-00

Unavailable

26

. JOINT CHAIN

94680-11001-00

Unavailable

27

OIL SEAL (25X40X8-248)

93102-25061-00

Unavailable

28

COVER, HUB DUST

431-25367-00-00

Unavailable

29

COLLAR

90387-17555-00

Unavailable

30

WASHER(JN5)

92907-16100-00

Unavailable

31

NUT, HEXAGON

90170-16177-00

Unavailable

32

BOLT

90101-08060-00

Unavailable

33

. NUT

95380-08700-00

Unavailable

34

BAR, TENSION

(431-25371-00-00)

Unavailable

35

BOLT

(90109-08378-00)

Unavailable

36

BOLT

90109-08176-00

Unavailable

37

WASHER, PLAIN

92990-08200-00

Unavailable

38

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable

39

. NUT

95380-08700-00

Unavailable

40

PIN, COTTER

91490-20025-00

Unavailable

41

BOLT, STUD (483)

90116-08218-00

Unavailable
