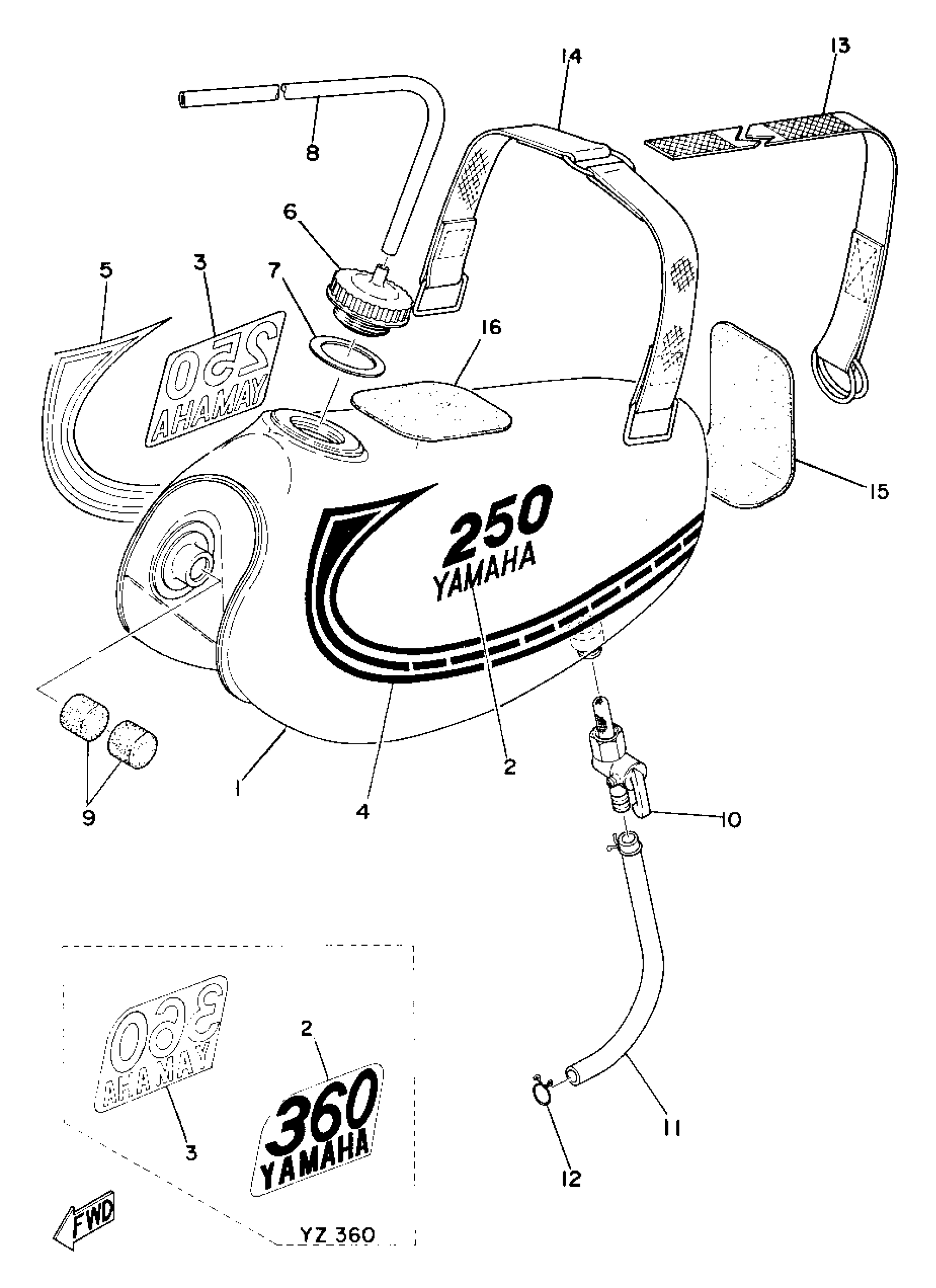

Yamaha YZ360B (YZ250B_360B) 1975 FUEL TANK Diagram
#
Description
Price
1
FUEL TANK
(483-24110-00-03)
Unavailable
1
FUEL TANK
(483-24110-01-01)
Unavailable
1
FUEL TANK
(483-24110-01-03)
Unavailable
2
EMBLEM 1
(483-24161-00-00)
Unavailable
2
EMBLEM 1
(484-24161-00-00)
Unavailable
3
EMBLEM 2
(483-24162-00-00)
Unavailable
3
EMBLEM 2
(484-24162-00-00)
Unavailable
4
GRAPHIC, FUEL TNK 1
(483-24244-00-00)
Unavailable
5
GRAPHIC, FUEL TNK 2
(483-24245-00-00)
Unavailable
7
GASKET (322-24612-00)
90430-37052-00
Unavailable
12
CLIP
90467-100A1-00
Unavailable
13
BAND, TNK FITTING 1
(431-24173-00-00)
Unavailable
14
BAND, TNK FITTING 2
(431-24199-00-00)
Unavailable
15
DAMPER, LOCATING 3
(431-24183-00-00)
Unavailable
16
DAMPER, LOCATING 2
(431-24182-00-00)
Unavailable
