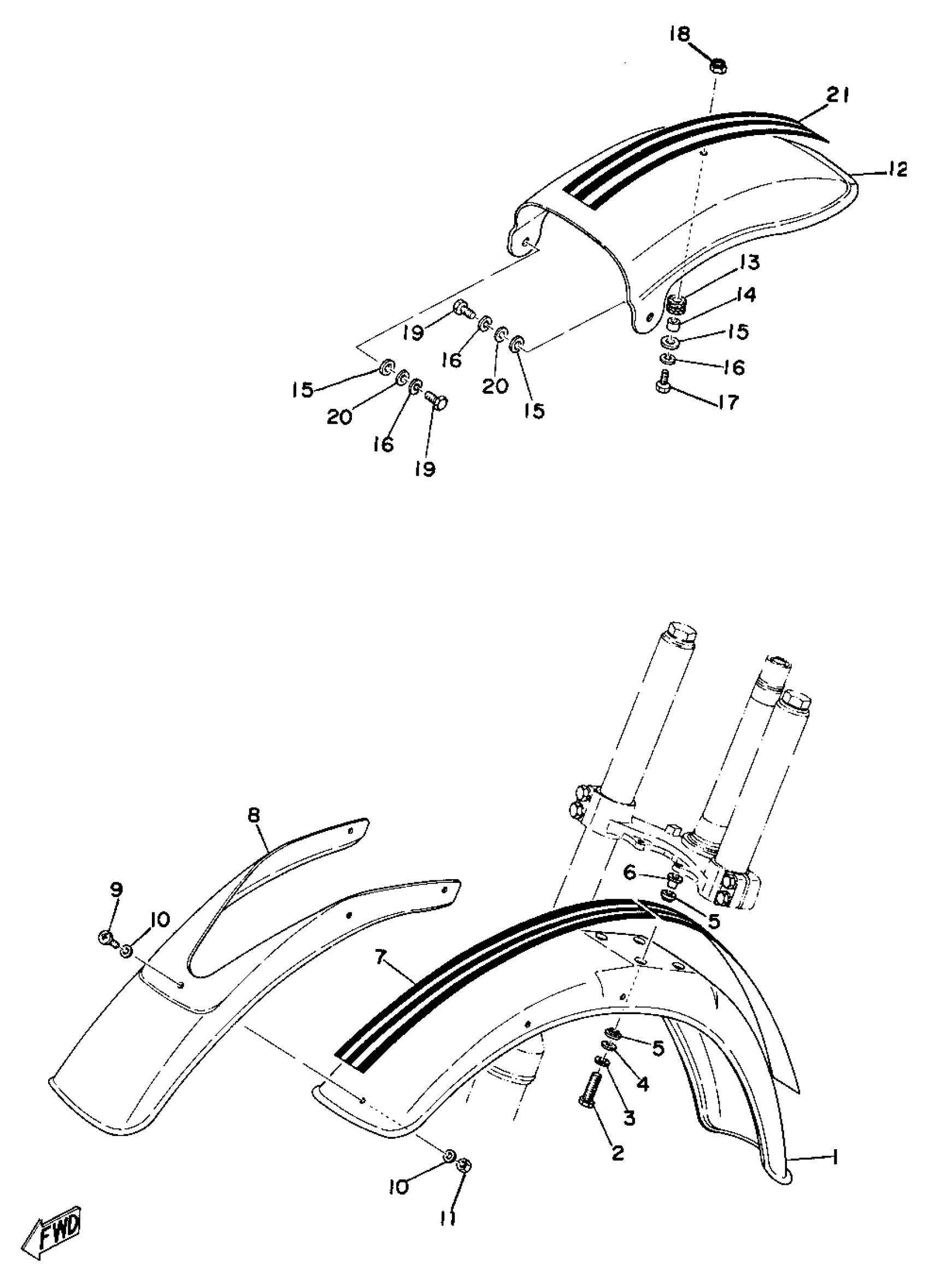

Yamaha YZ360B (YZ250B_360B) 1975 FRONT FENDER - REAR FENDER Diagram

#

Description
Price

1

FENDER, FRONT

453-21511-01-00

Unavailable

2

BOLT(JF7)

97080-06030-00

$5.49

3

WASHER, SPRING

92995-06100-00

Unavailable

4

WASHER, PLATE

90201-06380-00

$0.60

5

DAMPER, FENDER

322-21541-00-00

$7.99

6

COLLAR

90387-06158-00

$8.49

7

MOLD, FENDER

(483-21519-00-00)

Unavailable

8

OVER, FENDER

(483-21551-01-00)

Unavailable

9

SCREW, BIND (682)

98980-04012-00

$3.55

10

YBS66-4 WASHER, PLAIN

92990-04200-00

$1.86

11

NUT(6TA)

95307-04600-00

$8.49

12

FENDER, REAR

363-21611-00-00

Unavailable

13

GROMMET (431)

90480-14052-00

$5.60

14

COLLAR (3H5)

90387-060A3-00

$8.49

15

WASHER, PLATE

90201-06380-00

$0.60

16

WASHER, SPRING

92995-06100-00

Unavailable

17

BOLT, HEXAGON

97017-06020-00

Unavailable

18

NUT, SELF-LOCKING

95617-06100-00

Unavailable

19

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

Unavailable

20

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

21

STRIPE, REAR FENDER

(483-21619-00-00)

Unavailable
