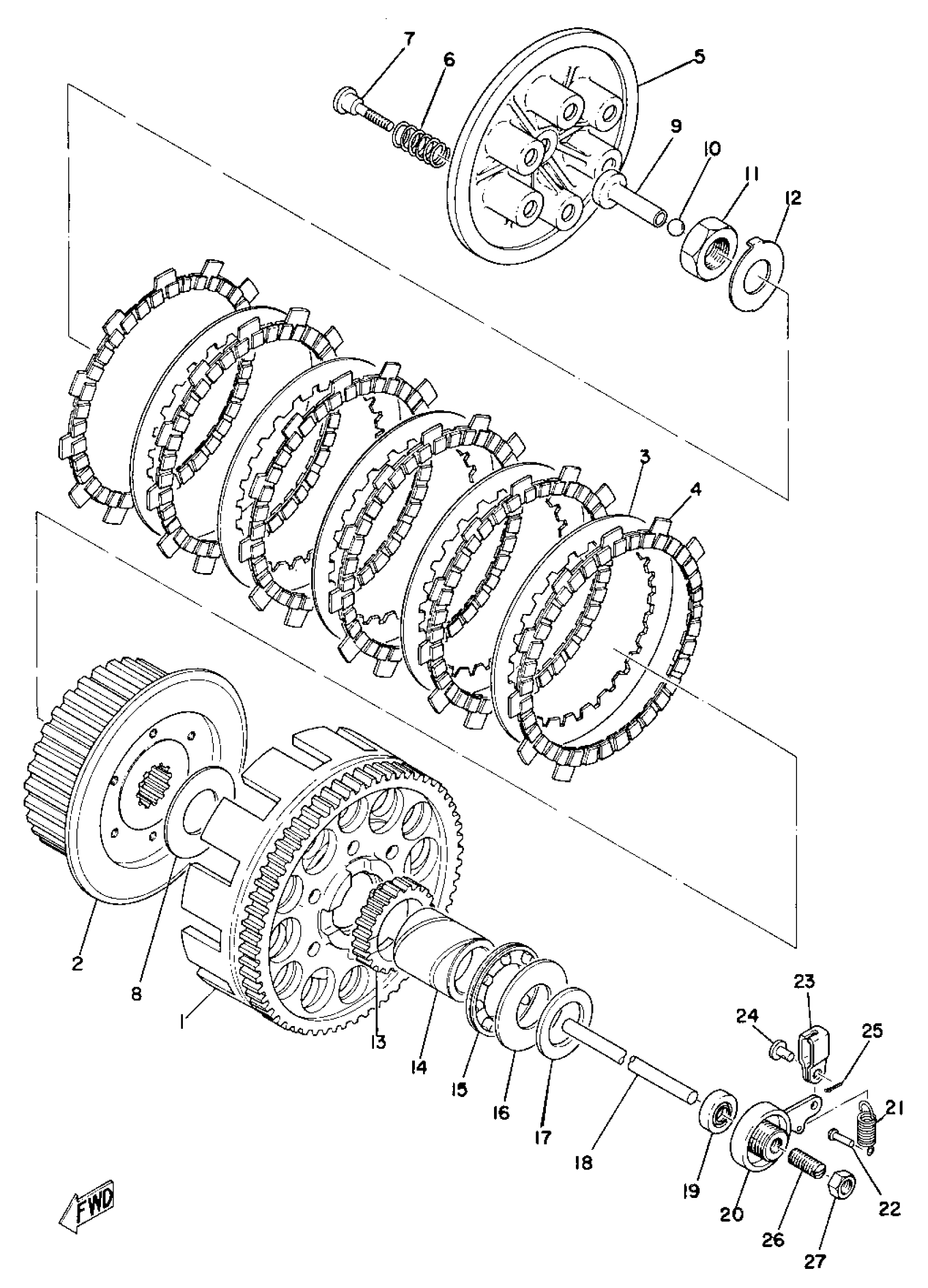

Yamaha YZ360B (YZ250B_360B) 1975 CLUTCH Diagram

#

Description
Price

1

PRI DRVN GEAR

(431-16150-00-00)

Unavailable

1

CLUTCH ASSEMBLY

(431-16301-00-00)

Unavailable

2

BOSS, CLUTCH

(431-16371-01-00)

Unavailable

3

PLATE, CLUTCH 2

168-16325-10-00

$14.49

4

PLATE, FRICTION

4H7-16321-02-00

$23.99

5

PLATE, PRESSURE 1

(363-16351-00-00)

Unavailable

6

SPRING, COMPRESSION

(90501-23319-00)

Unavailable

7

SCREW, SPECL SHAPE

(90149-05147-00)

Unavailable

8

PLATE, THRUST (2)

170-16164-00-00

$9.99

9

ROD, PUSH 1

(431-16356-00-00)

Unavailable

10

BALL

93505-16006-00

$8.49

11

NUT

90170-18089-00

Unavailable

12

WASHER, LOCK

(90215-18111-00)

Unavailable

13

GEAR, KICK PINION

(438-15631-00-00)

Unavailable

14

SPACER 1

(214-16181-00-00)

Unavailable

15

BEARING, FLAT #41

93341-23307-00

Unavailable

16

PLATE, THRUST (2)

170-16164-00-00

$9.99

17

WASHER, PLATE(1FK)

90201-252K4-00

Unavailable

18

ROD, PUSH 2

307-16357-00-00

Unavailable

19

OIL SEAL, SDO-TYPE (SDO-6.8-26-6)

93109-07009-00

Unavailable

20

PUSH LEVER ASSEMBLY

483-16340-00-00

Unavailable

21

SPRING, TENSION

90506-10020-00

Unavailable

22

HOOK, SPRING

132-16346-00-00

Unavailable

23

JOINT

214-16389-00-00

Unavailable

24

PIN W/HOLE 214163790000

90240-06005-00

Unavailable

25

. PIN, COTTER

91401-10015-00

Unavailable

26

BOLT, SET (214-16343-00)

90113-08017-00

Unavailable

27

NUT

90179-08179-00

Unavailable
