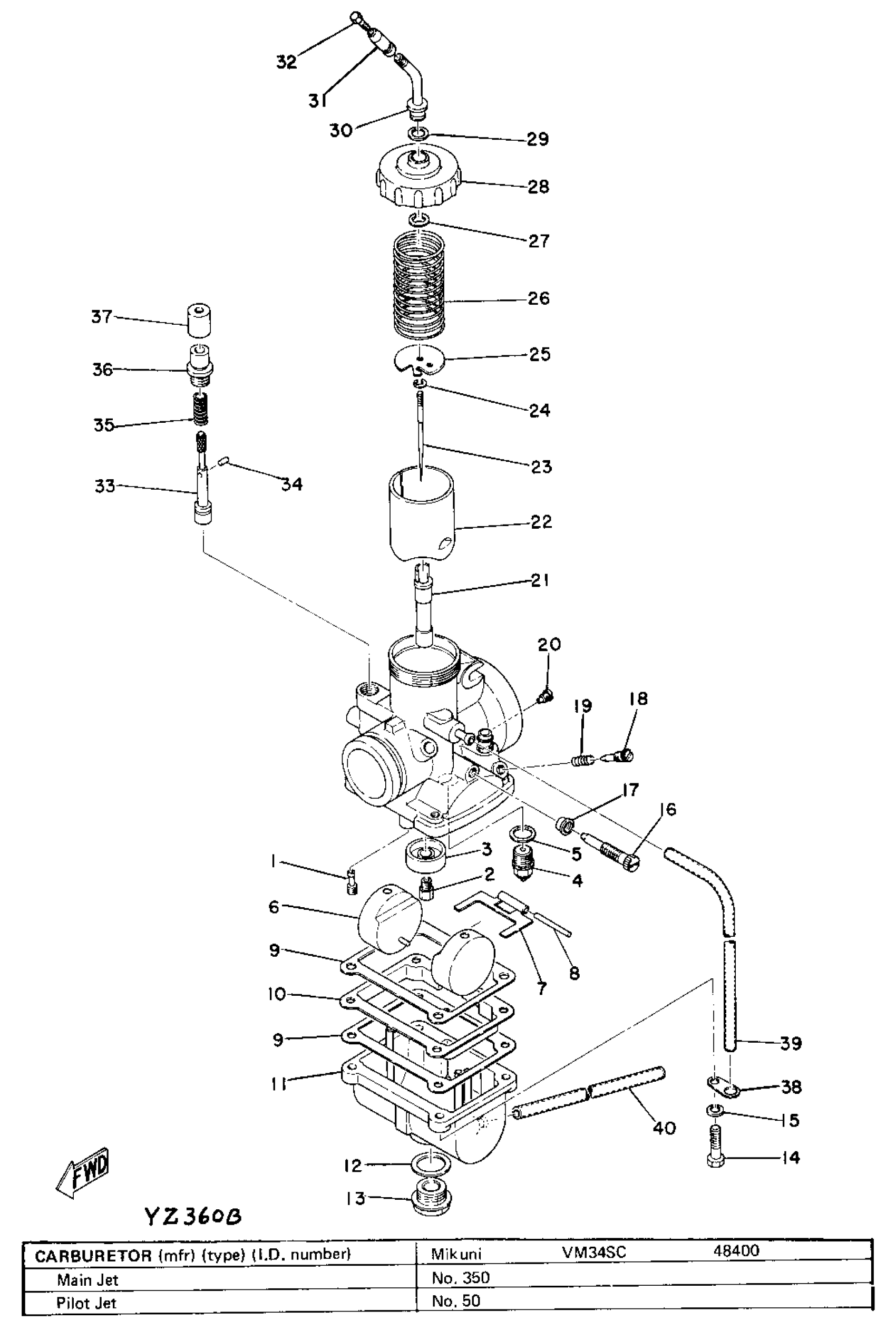

Yamaha YZ360B (YZ250B_360B) 1975 CARBURETOR Diagram

#

Description
Price

1

JET, PILOT (# 50)

193-14142-50-00

$8.99

1

JET, PILOT (# 70)

193-14142-70-00

$10.99

1

CARBURETOR ASSEMBLY 1

(483-14101-00-00)

Unavailable

1

CARBURETOR ASSEMBLY 1

(484-14101-00-00)

Unavailable

2

JET, MAIN #310

137-14143-62-A1

Unavailable

2

JET, MAIN #320

137-14143-64-00

Unavailable

2

JET, MAIN #330

137-14143-66-A1

Unavailable

2

JET,MAIN #340

137-14143-68-00

$9.99

2

JET,MAIN #360

137-14143-72-00

$6.99

3

RING

(310-14194-00-00)

Unavailable

4

NEEDLE VALVE SET

24X-14107-33-00

$50.99

5

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

6

. FLOAT

310-14185-00-00

Unavailable

7

. ARM, FLOAT

310-14187-00-00

Unavailable

8

PIN, FLOAT

127-14186-00-00

$6.65

9

GASKET, FLOAT CHAMBER

483-14184-00-00

Unavailable

10

. PLATE

483-14146-00-00

Unavailable

11

BODY, FLOAT CHMBR 1

(310-14181-00-33)

Unavailable

12

. WASHER, PLUG SCREW

239-14117-00-00

Unavailable

13

PLUG, SCREW

(239-14115-00-00)

Unavailable

14

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

16

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

17

NUT, CABLE ADJUSTING

(310-14161-00-00)

Unavailable

18

AIR SCREW SET

23X-14104-00-00

Unavailable

19

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

20

JET, AIR (#2.0)

239-14172-20-00

Unavailable

21

. NOZZLE, MAIN P-8

239-14141-48-00

Unavailable

22

VALVE, THROTTLE 1

(431-14112-35-00)

Unavailable

23

. NEEDLE (6F15-3)

239-14116-15-00

Unavailable

24

CLIP

3FA-14137-00-00

Unavailable

25

. SEAT, SPRING

239-14136-00-00

Unavailable

26

. SPRING, THROTTLE VALVE

431-14131-00-00

Unavailable

27

CLIP

363-14137-00-00

Unavailable

28

TOP, MIXING CHAMBER

(364-14158-00-33)

Unavailable

29

GASKET

363-14198-00-00

Unavailable

30

. GUIDE, CABLE

363-14155-00-00

Unavailable

31

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

32

CABLE ADJUST SCREW SET

17L-14106-00-00

Unavailable

33

PLUNGER, STARTER

(432-14171-00-00)

Unavailable

34

. CLIP, PLUNGER

432-14138-01-00

Unavailable

35

SPRING, PLUNGER

127-14135-00-00

Unavailable

36

CAP, PLUNGER

(432-14174-00-00)

Unavailable

37

COVER, PLUNGER CAP

(432-14173-00-00)

Unavailable

38

. PLATE

313-14146-00-00

Unavailable

39

HOSE

89A-14987-00-00

Unavailable

40

. PIPE, OVERFLOW

310-14196-00-00

Unavailable
