TRANSMISSION

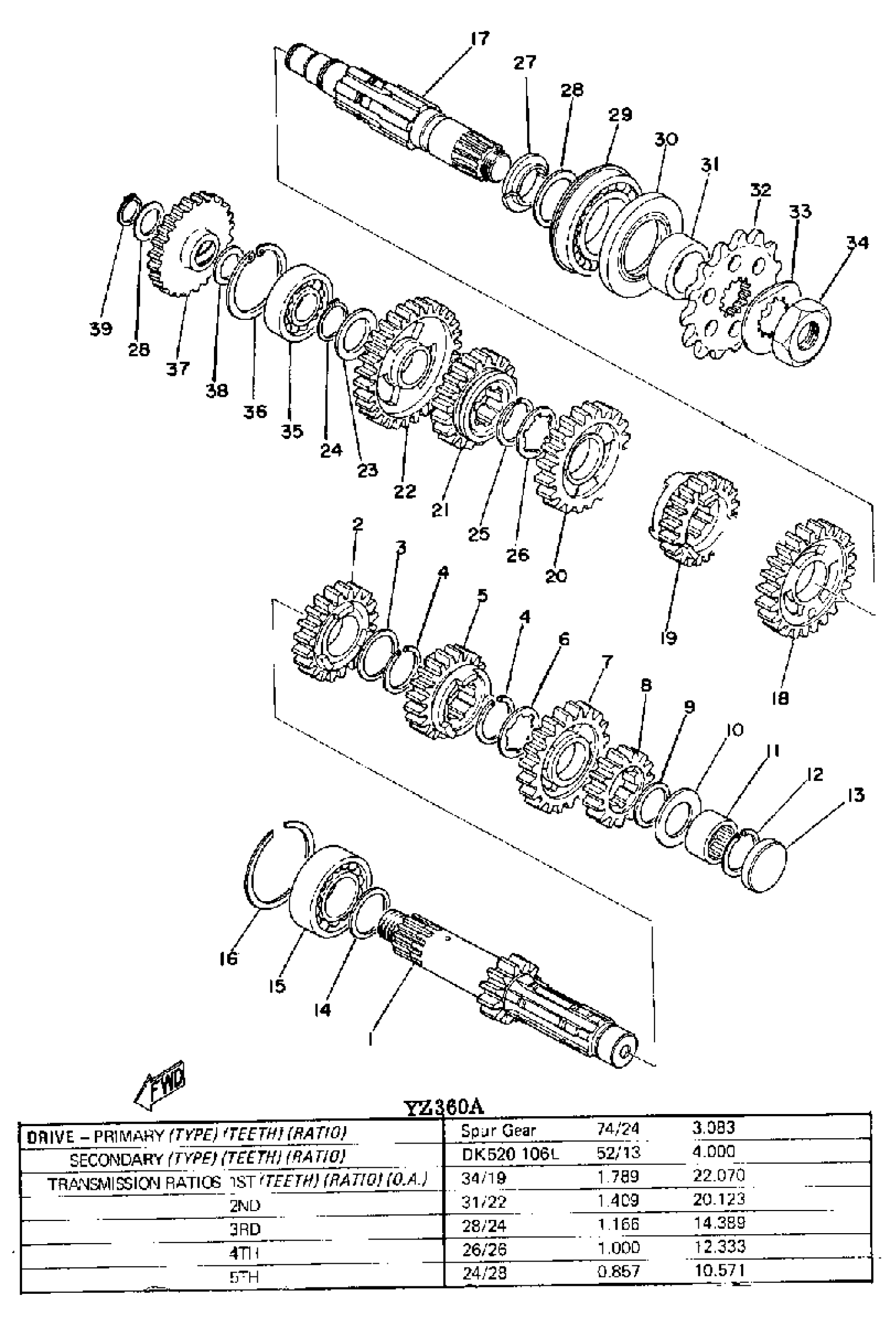

Yamaha YZ360A (YZ250A_360A) 1974 TRANSMISSION Diagram
#
1
AXLE, MAIN
(431-17411-00-00)
Unavailable
2
GEAR, 4TH PINION
(431-17141-00-00)
Unavailable
5
GEAR, 3RD PINION
(431-17131-00-00)
Unavailable
6
WASHER, SPEC''L SHAP
(90209-21080-00)
Unavailable
7
GEAR, 5TH PINION
(431-17151-01-00)
Unavailable
8
GEAR, 5TH PINION
(431-17151-01-00)
Unavailable
10
SHIM 1
(137-17427-00-09)
Unavailable
11
BEARING
93315-22004-00
Unavailable
12
CIRCLIP, R-TYPE (R-26)
93420-26024-00
Unavailable
13
PLUG, SPEC''L SHAPE
(90338-32031-00)
Unavailable
14
SHIM 1
156-17417-00-01
Unavailable
14
SHIM 1 (25.1-31-0.2)
156-17417-00-02
Unavailable
14
SHIM 1
156-17417-00-03
Unavailable
15
BEARING
93306-20503-00
Unavailable
16
CIRCLIP, INNER
(93450-52014-00)
Unavailable
17
AXLE, DRIVE
(291-17421-00-00)
Unavailable
18
GEAR, 2ND WHEEL
(431-17221-00-00)
Unavailable
19
GEAR, 5TH WHEEL
(431-17251-00-00)
Unavailable
20
GEAR, 3RD WHEEL
(431-17231-01-00)
Unavailable
21
GEAR, 4TH WHEEL
(431-17241-00-00)
Unavailable
22
GEAR, 1ST WHEEL
(431-17211-00-00)
Unavailable
23
WASHER PLATE 168171160000
90201-20278-00
Unavailable
24
CIRCLIP(1EY)
99009-19400-00
Unavailable
26
WASHER, SPEC''L SHAP
(90209-21080-00)
Unavailable
27
SPACER, DRIVE AXLE
156-17429-00-00
Unavailable
28
SHIM, DRIVE AXLE (0.5)
168-17428-01-05
Unavailable
28
SHIM, DRIVE AXLE (0.5)
168-17428-01-05
Unavailable
29
BRG,R-B 6305 62MM 225G NK
93306-30504-00
Unavailable
30
OIL SEAL (35X62X6-371)
93102-35109-00
Unavailable
31
COLLAR
(90387-25193-00)
Unavailable
32
SPROCKET, DRIVE (13T)
9383E-13216-00
Unavailable
32
SPROCKET, DRIVE
4DN-17460-00-00
Unavailable
33
WASHER, LOCK(3LD)
90215-21290-00
Unavailable
34
NUT 152174630000
90179-18020-00
Unavailable
35
BRG,R-B 6203 42MM 70G KY
93306-20306-00
Unavailable
36
CIRCLIP(5U8)
99009-42500-00
Unavailable
37
GEAR, KICK IDLE (23T)
275-15651-00-00
Unavailable
38
SHIM, MAIN AXLE (1.0)
164-17417-00-10
Unavailable
39
CIRCLIP(1AR)
99009-15400-00
Unavailable
