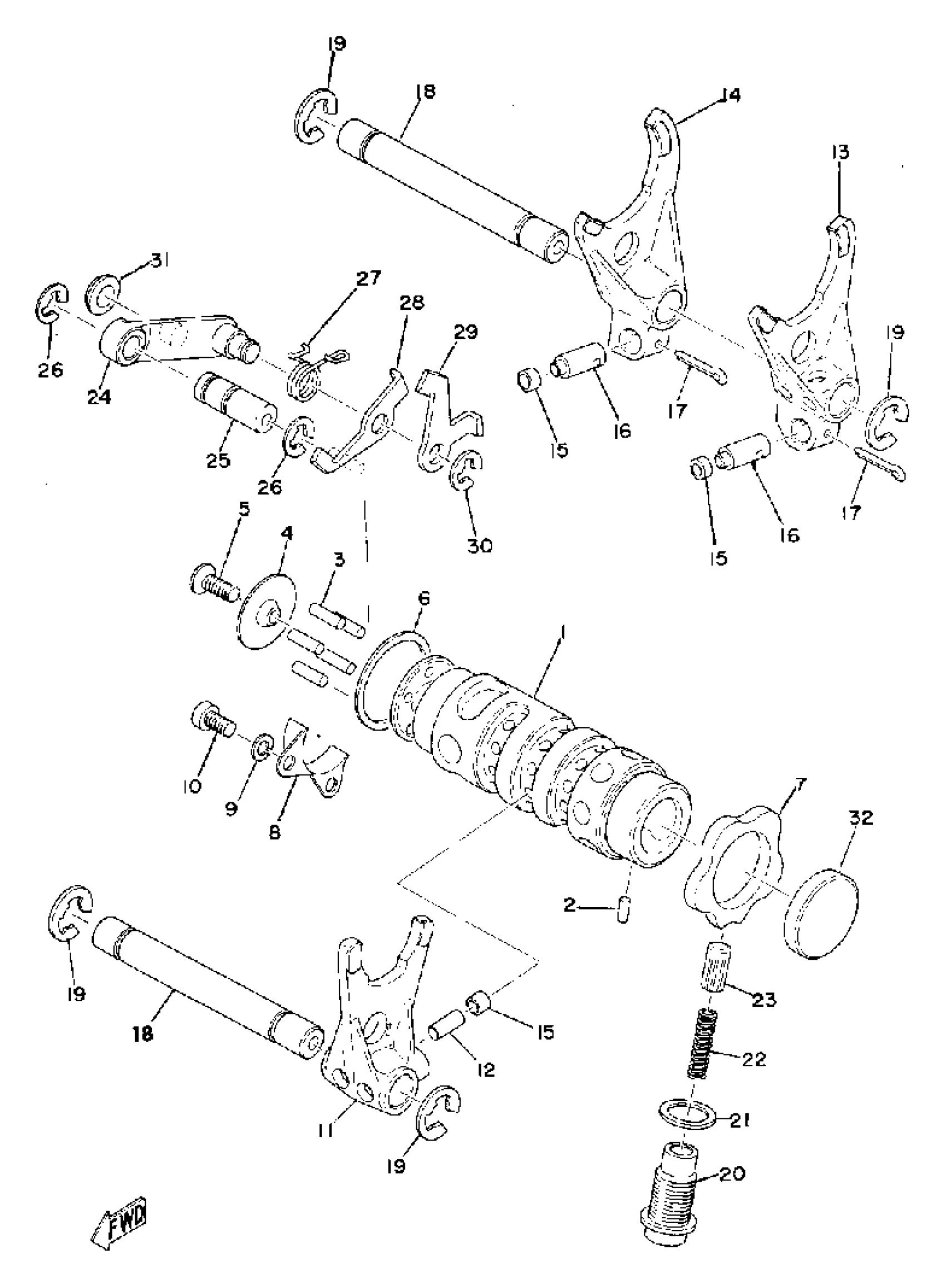

Yamaha YZ360A (YZ250A_360A) 1974 SHIFTER 1 Diagram
#
1
CAM, SHIFT
(431-18541-00-00)
Unavailable
4
PLATE, SIDE 1
214-18561-00-00
Unavailable
6
SHIM, SHIFT CAM
(431-18591-00-02)
Unavailable
6
SHIM, SHIFT CAM
(431-18591-00-03)
Unavailable
7
PLATE, STOPPER
(278-18141-00-00)
Unavailable
8
GUIDE
214-18179-00-00
Unavailable
10
SCREW, PAN HEAD(62X)
97885-05010-00
Unavailable
11
3RD PIN & FRK SHF1
(431-10000-00-00)
Unavailable
12
PIN, DOWEL
(93605-13077-00)
Unavailable
13
FORK, SHIFT 2
(431-18512-00-00)
Unavailable
14
FORK, SHIFT 3
(431-18513-00-00)
Unavailable
15
PIN,SPEC'L SHAPE
90249-05035-00
Unavailable
16
PIN, SPEC''L SHAPE (214-18552-00)
90249-05042-00
Unavailable
17
PIN, COTTER(6L5)
91490-25030-00
Unavailable
18
BAR, SHIF FRK GDE 1
(431-18531-00-00)
Unavailable
19
CIRCLIP
99006-10600-00
Unavailable
20
BOLT
(90109-14389-00)
Unavailable
21
GASKET
(431-18567-00-00)
Unavailable
22
SPRING, COMPRESSION
(90501-10311-00)
Unavailable
23
STOPPER, CAM
278-18547-02-00
Unavailable
24
BRACKET
(431-18128-00-00)
Unavailable
25
AXLE, PAWL HOLDER
(431-18188-00-00)
Unavailable
26
CIRCLIP(J51)
99080-09600-00
Unavailable
27
SPRING, TORSION
(90508-08234-00)
Unavailable
28
LEVER, SHIFT 4
(431-18152-00-00)
Unavailable
29
LEVER, SHIFT 3
(431-18151-00-00)
Unavailable
30
CIRCLIP
99080-07600-00
Unavailable
31
ROLLER, SHIFT LEVER
214-18178-00-00
Unavailable
32
PLUG, SPEC''L SHAPE
(90338-32031-00)
Unavailable
