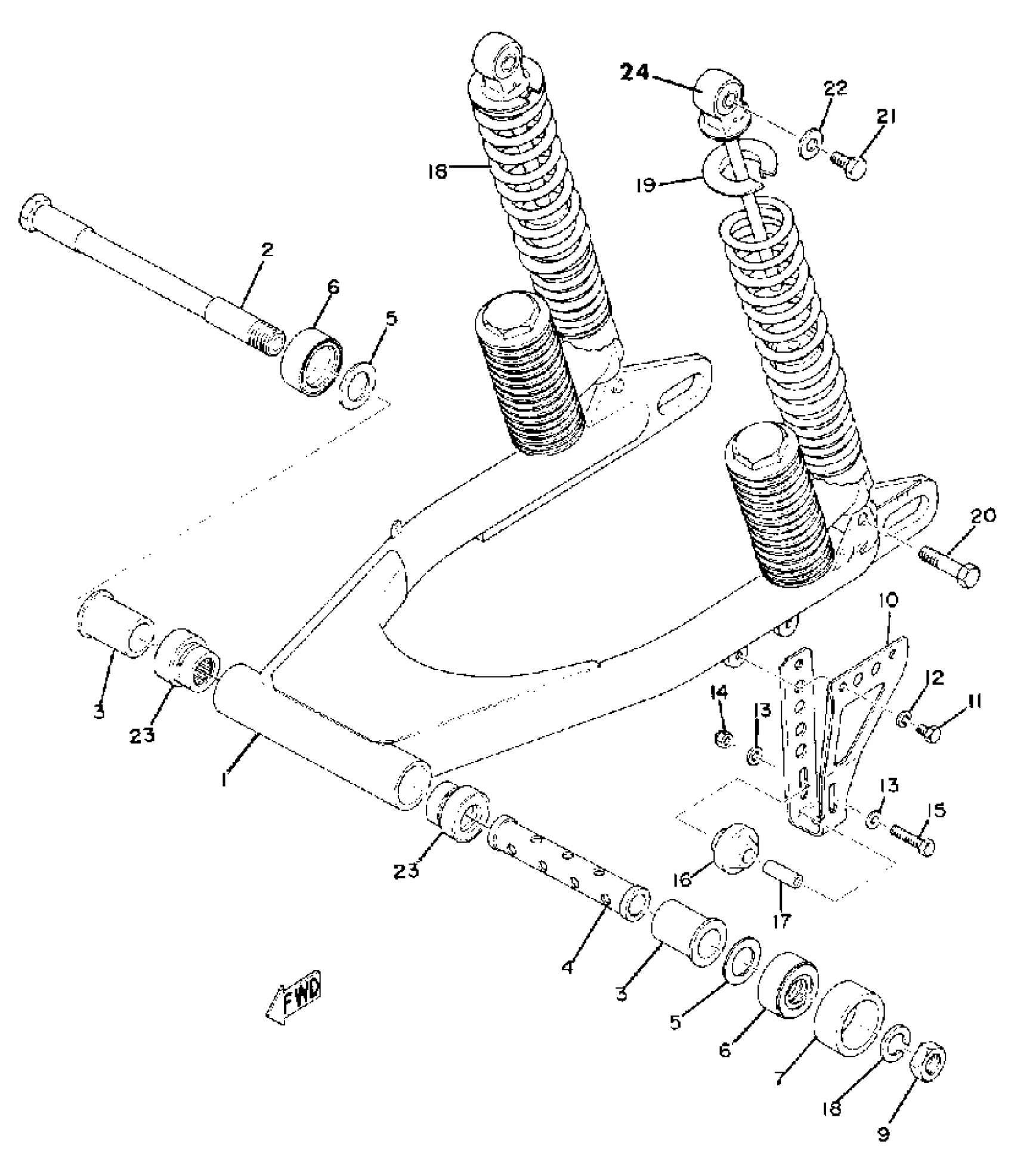

Yamaha YZ360A (YZ250A_360A) 1974 REAR ARM REAR CUSHION Diagram

#

Description
Price

1

REAR ARM

(431-22110-01-33)

Unavailable

2

SHAFT, PIVOT

1W4-22141-00-00

Unavailable

3

COLLAR

(90387-16449-00)

Unavailable

4

COLLAR, DISTANCE

(431-22126-00-00)

Unavailable

5

SHIM

(431-22127-00-04)

Unavailable

5

SHIM

(431-22127-00-05)

Unavailable

6

COVER, THRUST 1

(431-22128-00-00)

Unavailable

7

SEAL, GUARD

431-22151-03-00

$27.99

8

WASHER(JN5)

92907-16100-00

$14.99

9

NUT

90170-16111-00

Unavailable

10

GUARD, CHAIN

322-22153-00-33

Unavailable

11

BOLT(3JP)

97017-06010-00

$3.76

12

WASHER, SPRING

92995-06100-00

Unavailable

13

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

14

NUT 136217130000

90179-06034-00

$7.49

15

BOLT (682)

97095-06040-00

Unavailable

16

TENSIONER

322-22178-00-00

Unavailable

17

SPACER (322-22137-00)

90560-06003-00

Unavailable

18

SHK/ABS ASSEMBLY, REAR

(431-22210-04-00)

Unavailable

19

SEAT, SPRING UPPER

(322-22213-20-00)

Unavailable

20

BOLT

90109-10195-00

Unavailable

21

BOLT (661)

97013-06012-00

Unavailable

22

WASHER, PLATE

90201-06380-00

Unavailable

23

BEARING, CYLINDER.#21

(93321-22001-00)

Unavailable

24

DAMPER UNIT ASSEMBLY

(431-22250-09-00)

Unavailable
