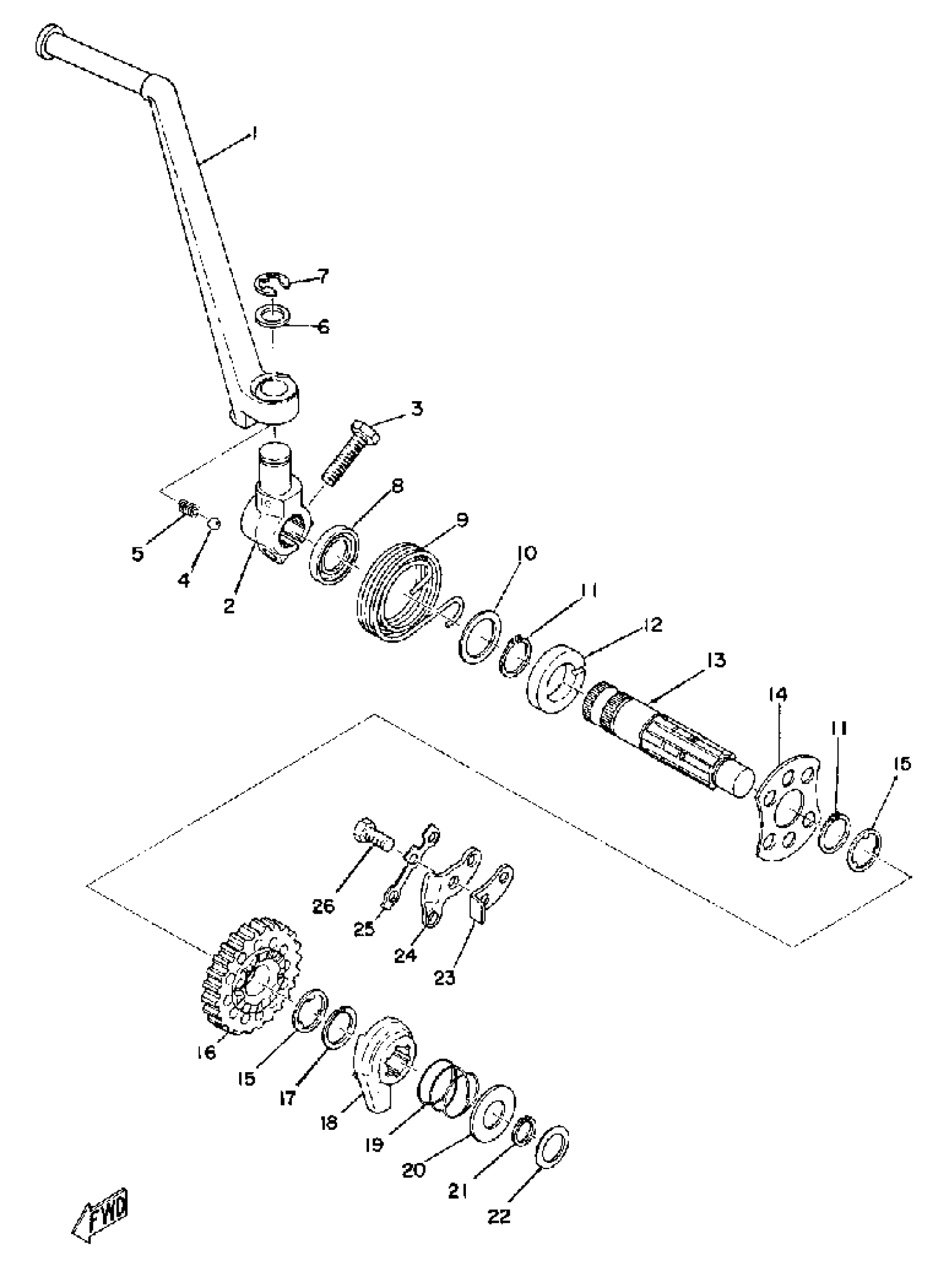

Yamaha YZ360A (YZ250A_360A) 1974 KICK STARTER Diagram

#

Description
Price

1

CRANK,KICK

278-15611-00-00

Unavailable

2

BOSS, KICK CRANK

(431-15621-00-00)

Unavailable

3

BOLT, HEXAGON

97013-08030-00

$2.49

4

BALL (12R)

93507-32031-00

$4.73

5

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

6

WASHER PLATE 278156130000

90201-15234-00

$8.49

7

CIRCLIP

99006-10600-00

$9.49

8

OIL SEAL (20X30X4.5-146)

93104-20007-00

$8.49

9

SPRING TORSION 291156650000

90508-32061-00

$8.49

10

WASHER, PLATE (5N0)

90201-203E7-00

Unavailable

11

CIRCLIP(1AR)

99009-20400-00

$8.49

12

SPACER

(431-15666-00-00)

Unavailable

13

AXLE, KICK

(431-15661-00-00)

Unavailable

14

COVER, SPRING

(431-15676-00-00)

Unavailable

15

WASHER, CLAW (168-15653-00)

90214-16009-00

Unavailable

16

GEAR, KICK

(431-15641-00-00)

Unavailable

17

CIRCLIP (525)

93410-20038-00

Unavailable

18

WHEEL, RATCHET

(308-15671-00-00)

Unavailable

19

SPRING COMPRESSION168156750000

90501-16107-00

Unavailable

20

WASHER, PLAIN (1JL)

90201-155K6-00

Unavailable

21

CIRCLIP(1AR)

99009-15400-00

Unavailable

22

SHIM

132-15644-00-00

Unavailable

23

STOPPER

214-15668-00-00

Unavailable

24

GUIDE, RATCHET WHL

(291-15674-00-00)

Unavailable

25

WASHER, LOCK

(291-15686-00-00)

Unavailable

26

BOLT, HEXAGON

97017-06020-00

Unavailable
