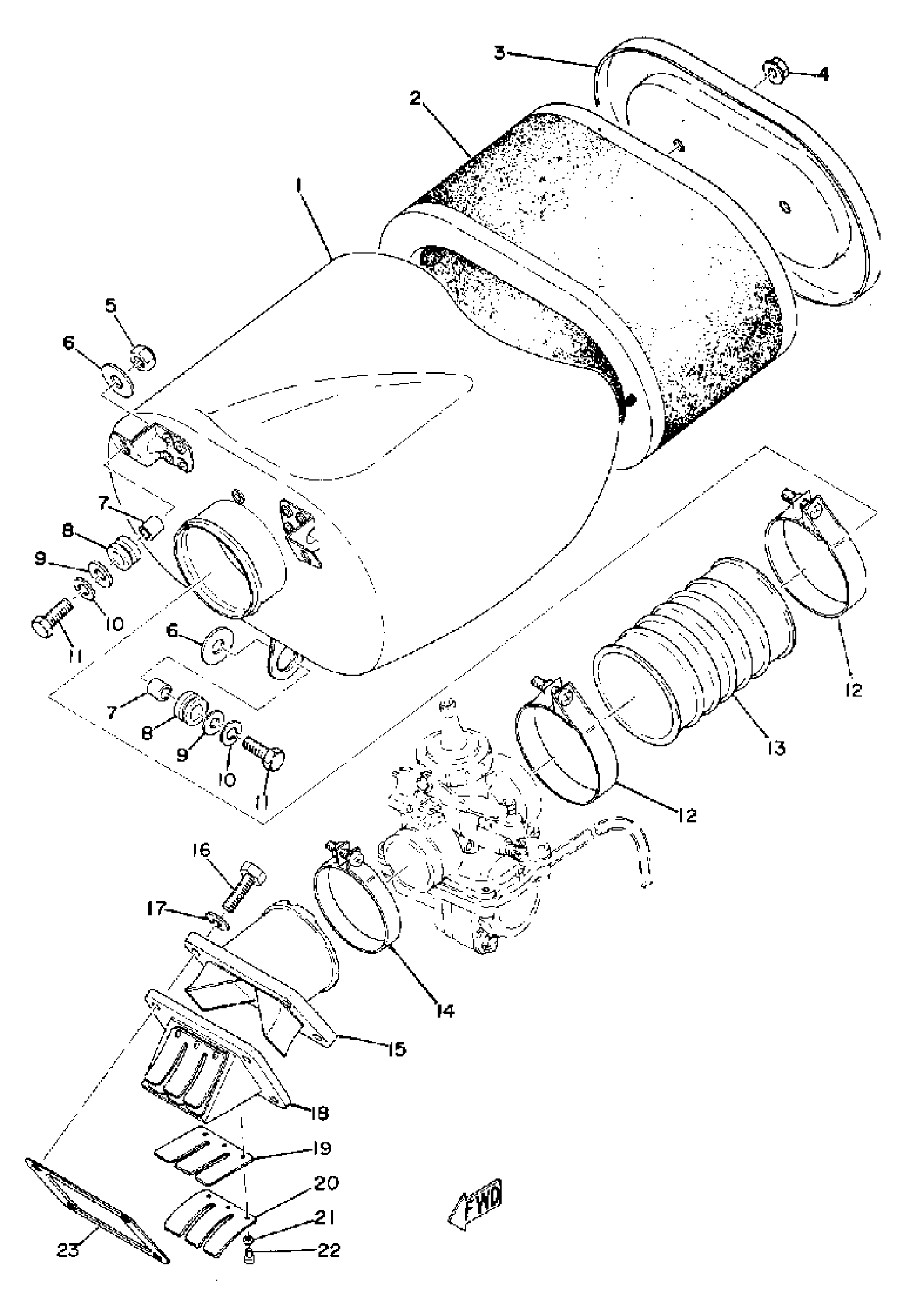

Yamaha YZ360A (YZ250A_360A) 1974 INTAKE Diagram

#

Description
Price

1

CASE, AIR CLEANER 1

(431-14411-00-00)

Unavailable

2

ELEMENT, AIR CLNR

(431-14451-00-00)

Unavailable

3

CAP, CLEANER CASE 1

(431-14412-00-00)

Unavailable

4

NUT, NYLON

95707-06300-00

$2.98

5

NUT (21W)

90179-06403-00

$4.93

6

WASHER, PLATE

90201-06380-00

$0.54

7

COLLAR (3H5)

90387-060A3-00

$6.74

8

GROMMET (431)

90480-14052-00

$4.09

9

YBS66-6 WASHER, PLAIN

92990-06200-00

$0.73

10

WASHER, SPRING

92995-06100-00

$2.95

11

BOLT(3DM)

97024-06020-00

$5.75

12

CLAMP, HOSE

(90460-61064-00)

Unavailable

13

JOINT, AIR CLNR 1

(431-14453-00-00)

Unavailable

14

CLAMP HOSE 278144550000

90460-49058-00

$6.29

15

MANIFOLD, INTAKE

(431-13555-01-00)

Unavailable

16

BOLT(3DM)

97024-06020-00

$5.75

17

WASHER, SPRING

92995-06100-00

$2.95

18

REED VALVE ASSEMBLY

(431-13610-01-00)

Unavailable

19

. REED, VALVE

363-13613-00-00

Unavailable

20

. STOPPER, REED VALVE

363-13616-00-00

Unavailable

21

WASHER, SPRING

92990-03100-00

Unavailable

22

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

23

GASKET, MANIFOLD

8Y7-13556-01-00

Unavailable
