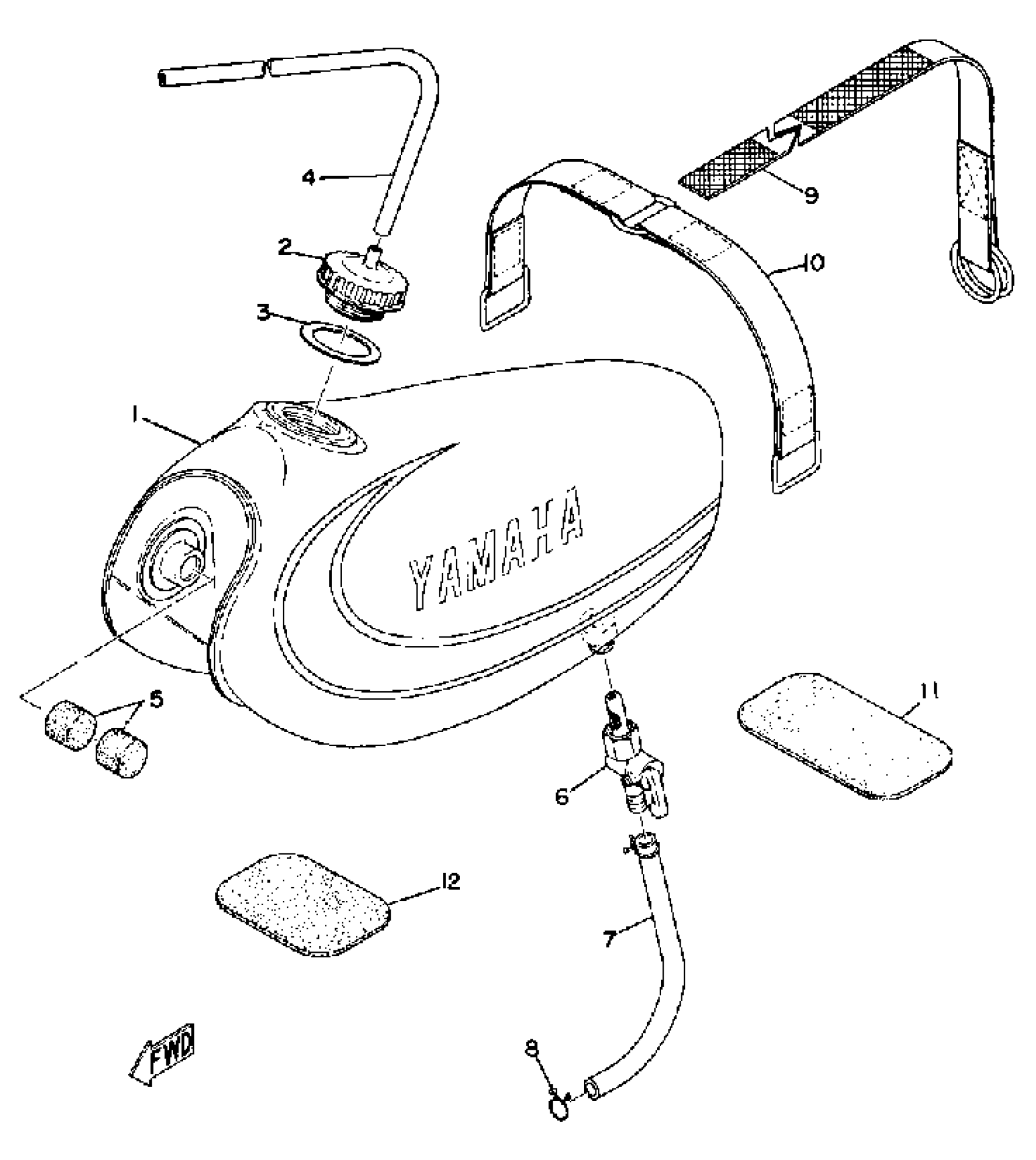

Yamaha YZ360A (YZ250A_360A) 1974 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(431-24110-01-01)

Unavailable

2

BODY, CAP

322-24611-02-00

$46.67

3

GASKET (322-24612-00)

90430-37052-00

Unavailable

4

HOSE (L1500)

90445-090F6-00

$24.98

5

DAMPER, LOCATING 1

3TB-24181-00-00

$11.48

6

FUEL COCK ASSY

322-24500-02-00

$74.83

7

HOSE (L370)

90445-112E1-00

$19.06

8

CLIP

90467-100A1-00

$5.96

9

BAND, TNK FITTING 1

(431-24173-00-00)

Unavailable

10

BAND, TNK FITTING 2

(431-24199-00-00)

Unavailable

11

DAMPER, LOCATING 3

(431-24183-00-00)

Unavailable

12

DAMPER, LOCATING 2

(431-24182-00-00)

Unavailable
