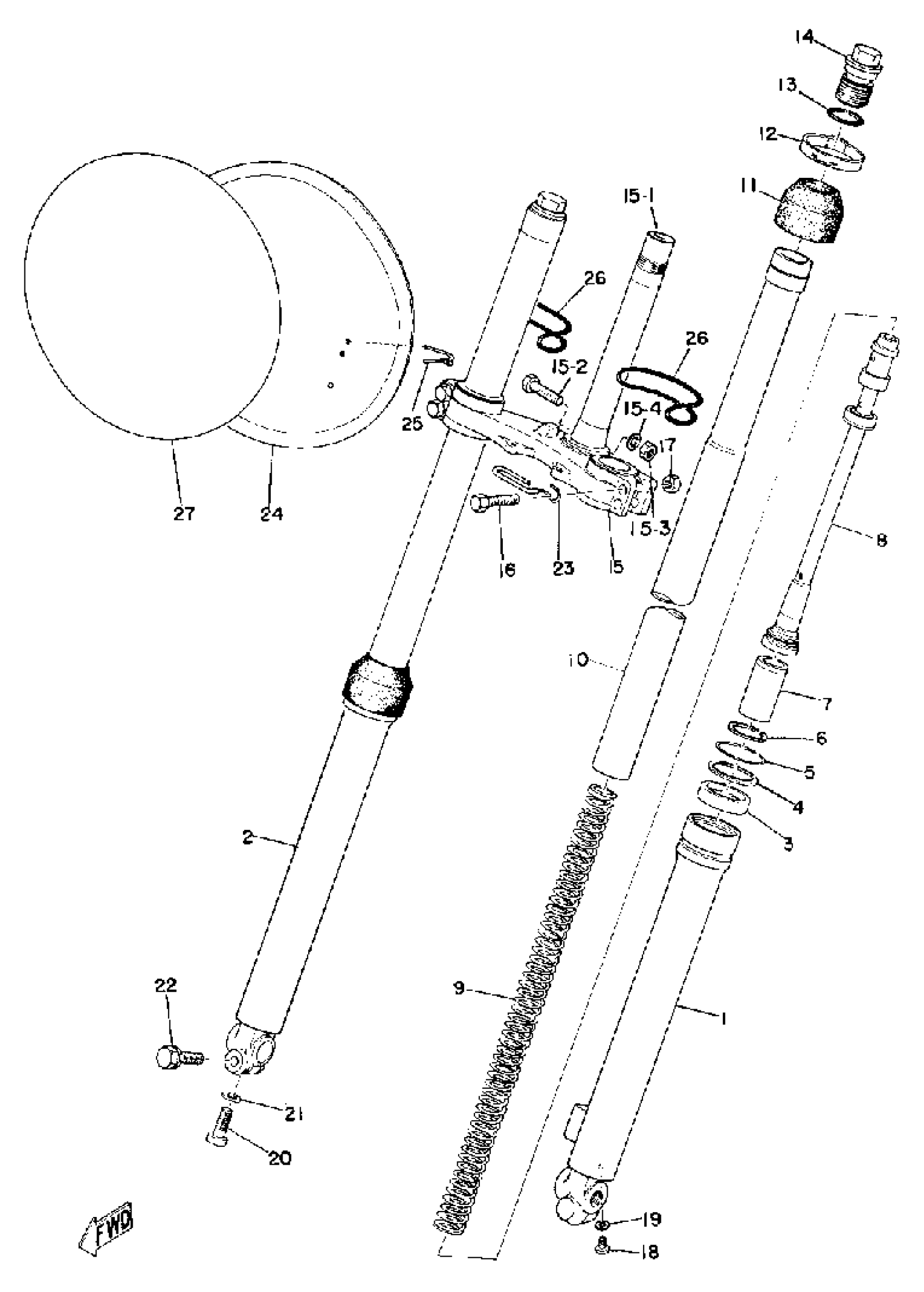

Yamaha YZ360A (YZ250A_360A) 1974 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(431-23101-01-00)

Unavailable

1

TUBE, OUTER 1

(431-23126-00-00)

Unavailable

2

TUBE, OUTER 2

(431-23136-00-00)

Unavailable

3

OIL SEAL

584-23145-50-00

$62.99

4

.. WASHER, OIL SEAL

214-23146-00-00

Unavailable

5

.. CLIP, OIL SEAL

214-23156-00-00

Unavailable

6

. CIRCLIP, INNER

93450-30033-00

Unavailable

7

PISTON, FRONT FORK

(322-23171-00-00)

Unavailable

8

CYLINDER, FRTFRK

(363-23170-00-00)

Unavailable

9

SPRING, FRONT FORK

(363-23141-01-00)

Unavailable

10

TUBE, INNER 1

(431-23124-00-00)

Unavailable

11

. SEAL, DUST

292-23144-00-00

Unavailable

12

CLAMP, HOSE

(90460-54061-00)

Unavailable

13

. GASKET

214-23114-00-00

Unavailable

14

BOLT, CAP

(291-23111-60-00)

Unavailable

15

UNDER BRACKET

(431-23340-00-33)

Unavailable

16

BOLT 1

(322-23346-00-00)

Unavailable

17

SCREW, PAN HEAD (713)

98580-04008-00

Unavailable

18

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

20

GASKET

509-23158-L0-00

Unavailable

21

. BOLT 1 (90119-08011)

J60-23346-00-00

Unavailable

22

PLATE, NUMBER

322-23485-00-00

Unavailable

23

STAY, PLATE

431-23486-02-00

Unavailable

24

O-RING (802)

93210-99103-00

Unavailable

25

EMBLEM

322-23395-00-00

Unavailable
