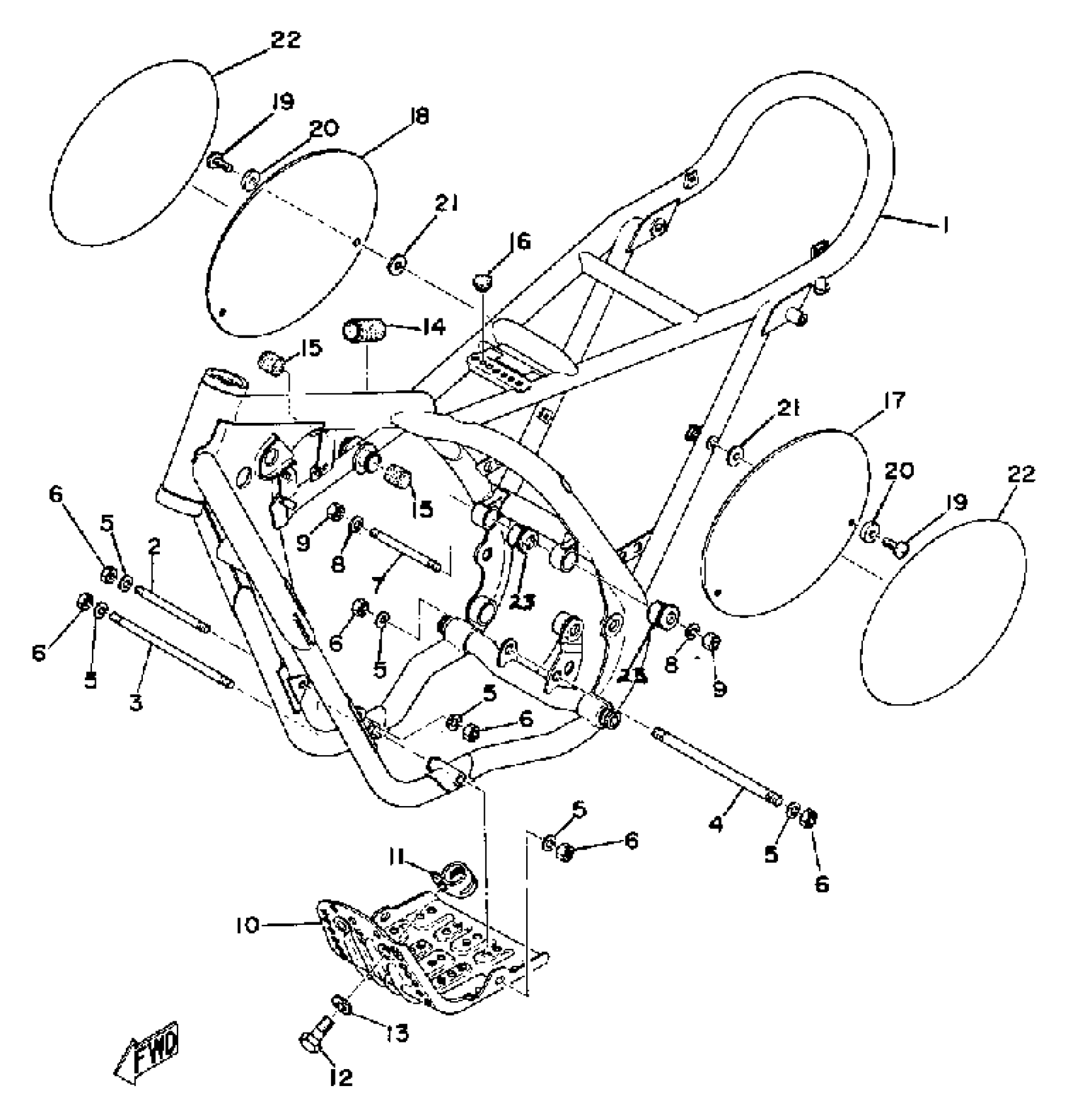

Yamaha YZ360A (YZ250A_360A) 1974 FRAME SIDE COVER Diagram

#

Description

Price

1

FRAME

(431-21110-00-33)

Unavailable

2

BOLT, STUD

(90116-08141-00)

Unavailable

3

BOLT, STUD

(90116-08144-00)

Unavailable

4

BOLT, STUD

(90116-08142-00)

Unavailable

5

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

6

. NUT

95380-08700-00

Unavailable

7

BOLT, STUD

(90116-10143-00)

Unavailable

8

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

9

NUT (682)

95380-10700-00

Unavailable

10

PROTECTOR, ENGINE

(483-21471-01-00)

Unavailable

11

BRACKET, PROTC FRT

(214-21433-00-33)

Unavailable

12

SCREW, BIND(J45)

98980-06012-00

$8.49

13

WASHER, SPRING

92995-06100-00

Unavailable

14

DAMPER, SEAT

(431-24723-00-00)

Unavailable

15

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

16

DAMPER, LOCATING 1

22W-24181-00-00

Unavailable

17

COVER, SIDE 1

(431-21711-00-00)

Unavailable

18

COVER, SIDE 1

(431-21711-00-00)

Unavailable

19

SCREW(3JM)

90149-06306-00

Unavailable

20

WASHER, PLATE

(90202-07048-00)

Unavailable

21

WASHER, PLATE 1012832300

90201-06066-00

Unavailable

22

EMBLEM 7

(401-21787-00-00)

Unavailable

23

DAMPER

90388-08003-00

Unavailable
