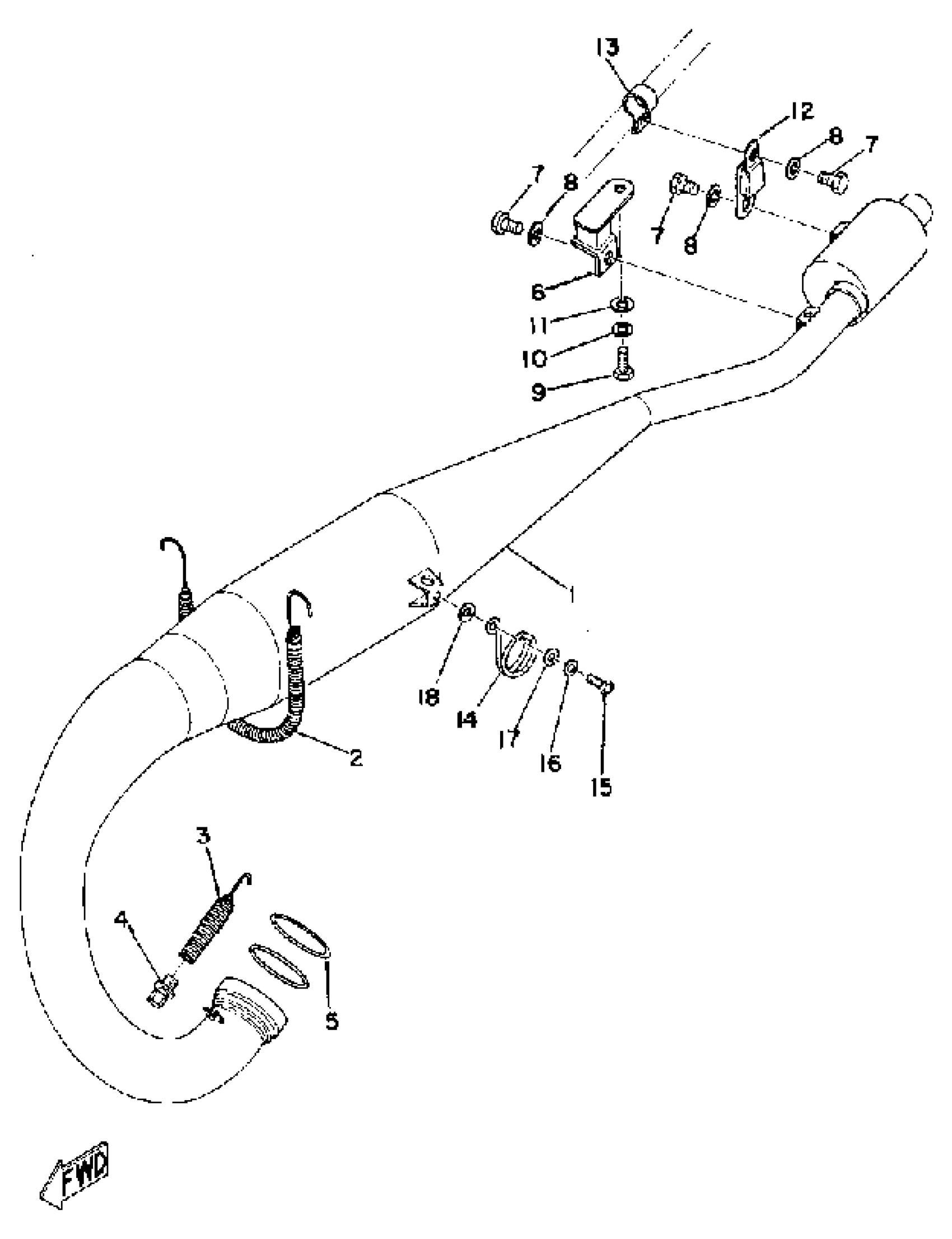

Yamaha YZ360A (YZ250A_360A) 1974 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSEMBLY L

(431-14610-00-00)

Unavailable

1

EXHAUST PIPE ASSEMBLY L

(432-14610-00-00)

Unavailable

2

SPRING, TENSION

(90507-16016-00)

Unavailable

3

SPRING,TENSION

90507-20012-00

Unavailable

4

BOLT (322-14684-10)

90109-08305-00

Unavailable

5

GASKET, EXST PIPE

(431-14613-00-00)

Unavailable

6

STAY, MUFFLER

(285-14791-10-00)

Unavailable

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, SPRING

92995-06100-00

Unavailable

9

BOLT, HEXAGON

97013-08020-00

$1.16

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

WASHER, PLAIN

92990-08200-00

Unavailable

12

STAY, MUFFLER 1

308-14771-00-00

Unavailable

13

STAY, MUFFLER

(322-14792-10-00)

Unavailable

14

GUIDE, CABLE

(431-26399-00-00)

Unavailable

15

BOLT(3JP)

97017-06010-00

Unavailable

16

WASHER, SPRING

92995-06100-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

18

WASHER, PLATE

90201-06380-00

Unavailable
