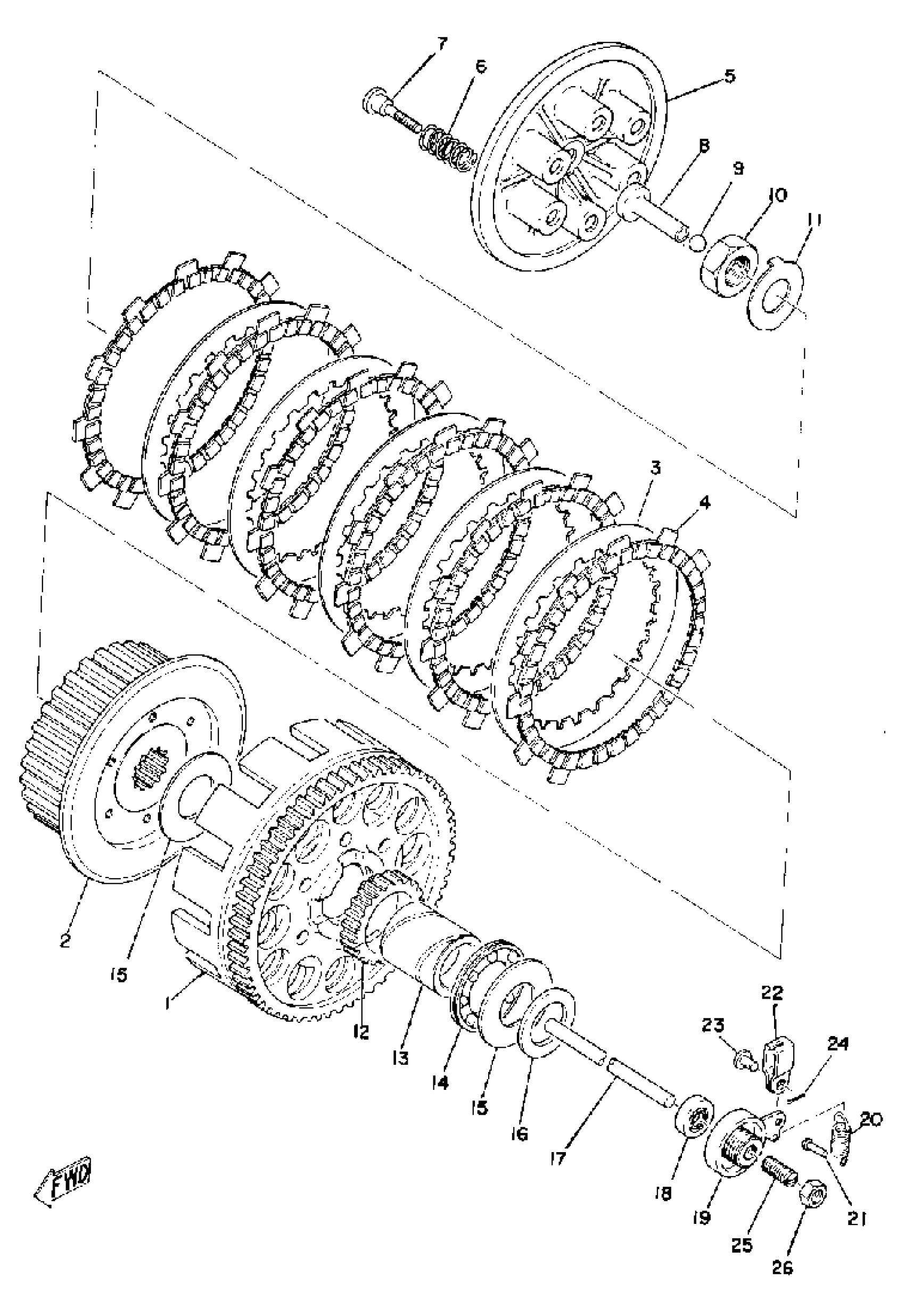

Yamaha YZ360A (YZ250A_360A) 1974 CLUTCH Diagram

#

Description
Price

1

PRI DRVN GEAR

(431-16150-00-00)

Unavailable

1

CLUTCH ASSEMBLY

(431-16301-00-00)

Unavailable

2

BOSS, CLUTCH

(431-16371-01-00)

Unavailable

3

PLATE, CLUTCH 2

168-16325-10-00

$14.49

4

PLATE, FRICTION

4H7-16321-02-00

$23.99

5

PLATE, PRESSURE 1

(363-16351-00-00)

Unavailable

6

SPRING, COMPRESSION

(90501-23319-00)

Unavailable

7

SCREW, SPECL SHAPE

(90149-05147-00)

Unavailable

8

ROD, PUSH 1

(431-16356-00-00)

Unavailable

9

BALL

93505-16006-00

$8.49

10

NUT

90170-18089-00

Unavailable

11

WASHER, LOCK

(90215-18111-00)

Unavailable

12

GEAR, KICK PINION

(214-15631-00-00)

Unavailable

13

SPACER 1

(214-16181-00-00)

Unavailable

14

BEARING, FLAT #41

93341-23307-00

Unavailable

15

PLATE, THRUST (2)

170-16164-00-00

Unavailable

16

WASHER, PLATE(1FK)

90201-252K4-00

Unavailable

17

ROD, PUSH 2

307-16357-00-00

Unavailable

18

OIL SEAL, SDO-TYPE (SDO-6.8-26-6)

93109-07009-00

Unavailable

19

PUSH LEVER ASSEMBLY

214-16340-00-00

Unavailable

20

SPRING, TENSION

90506-10020-00

Unavailable

21

HOOK, SPRING

132-16346-00-00

Unavailable

22

JOINT

214-16389-00-00

Unavailable

23

PIN W/HOLE 214163790000

90240-06005-00

Unavailable

24

. PIN, COTTER

91401-10015-00

Unavailable

25

BOLT, SET (214-16343-00)

90113-08017-00

Unavailable

26

NUT

90179-08179-00

Unavailable
