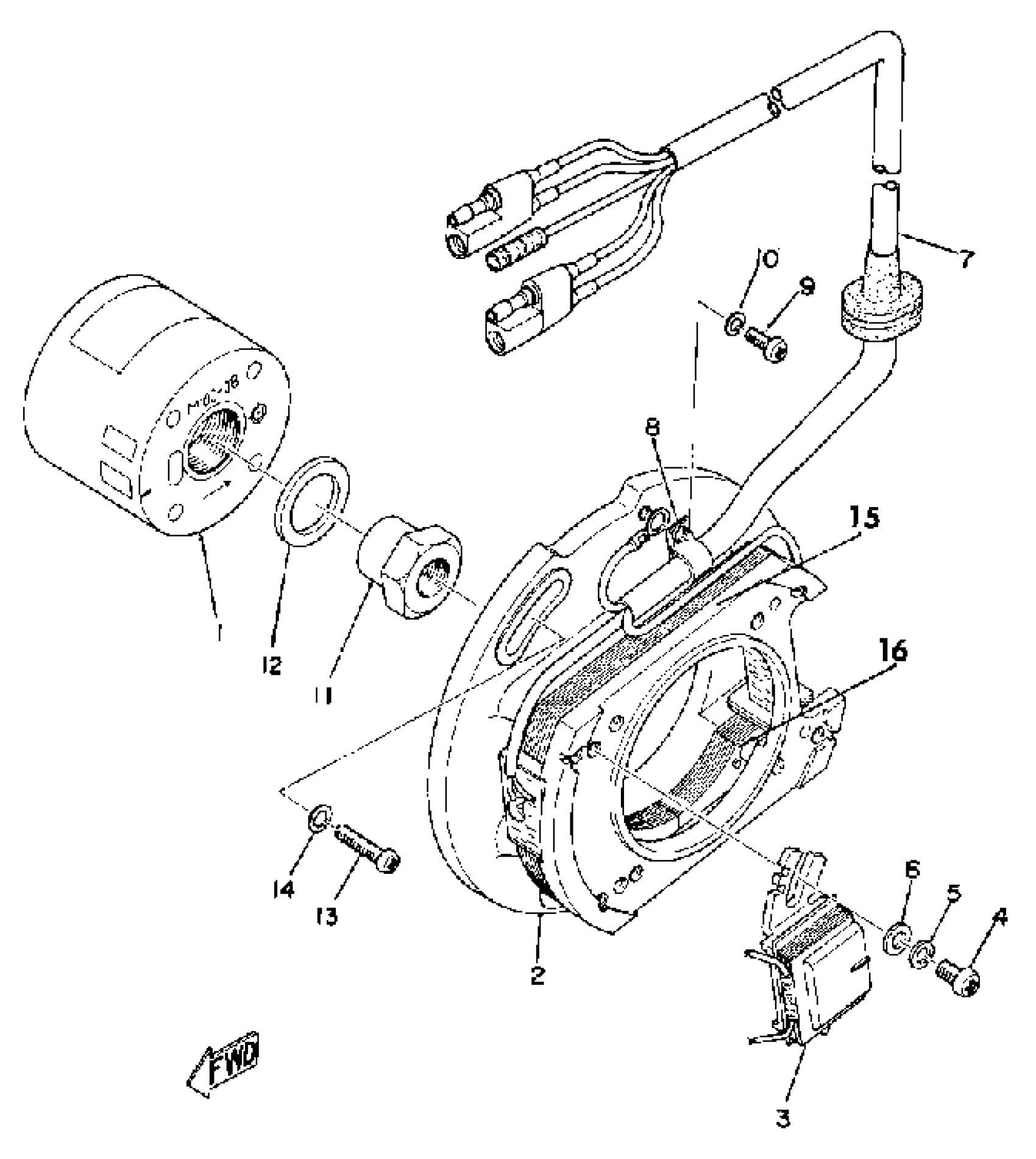

Yamaha YZ360A (YZ250A_360A) 1974 CDI MAGNETO Diagram

#

Description

Price

1

CDI MAGNETO ASSEMBLY

(431-85500-11-00)

Unavailable

1

ROTOR ASSEMBLY

(431-85550-11-00)

Unavailable

2

STATOR ASSEMBLY

(431-85510-11-00)

Unavailable

3

. COIL PULSER

364-85543-10-00

Unavailable

4

SCREW, PAN HEAD(62X)

97885-05010-00

Unavailable

5

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

6

. WASHER, PLAIN

92990-05200-00

Unavailable

7

LEAD WIRE ASSEMBLY

(431-85515-11-00)

Unavailable

8

. CLAMP

109-81328-11-00

Unavailable

9

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

10

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

11

. NUT, ROTOR

322-85553-10-00

Unavailable

12

. WASHER, ROTOR

322-85554-10-00

Unavailable

13

SCREW, PAN HEAD(6E5)

97880-06018-00

Unavailable

14

WASHER, SPRING

92995-06100-00

Unavailable

15

COIL, CHARGE 1

(322-85566-10-00)

Unavailable

16

COIL, CHARGE 2

(322-85567-10-00)

Unavailable
