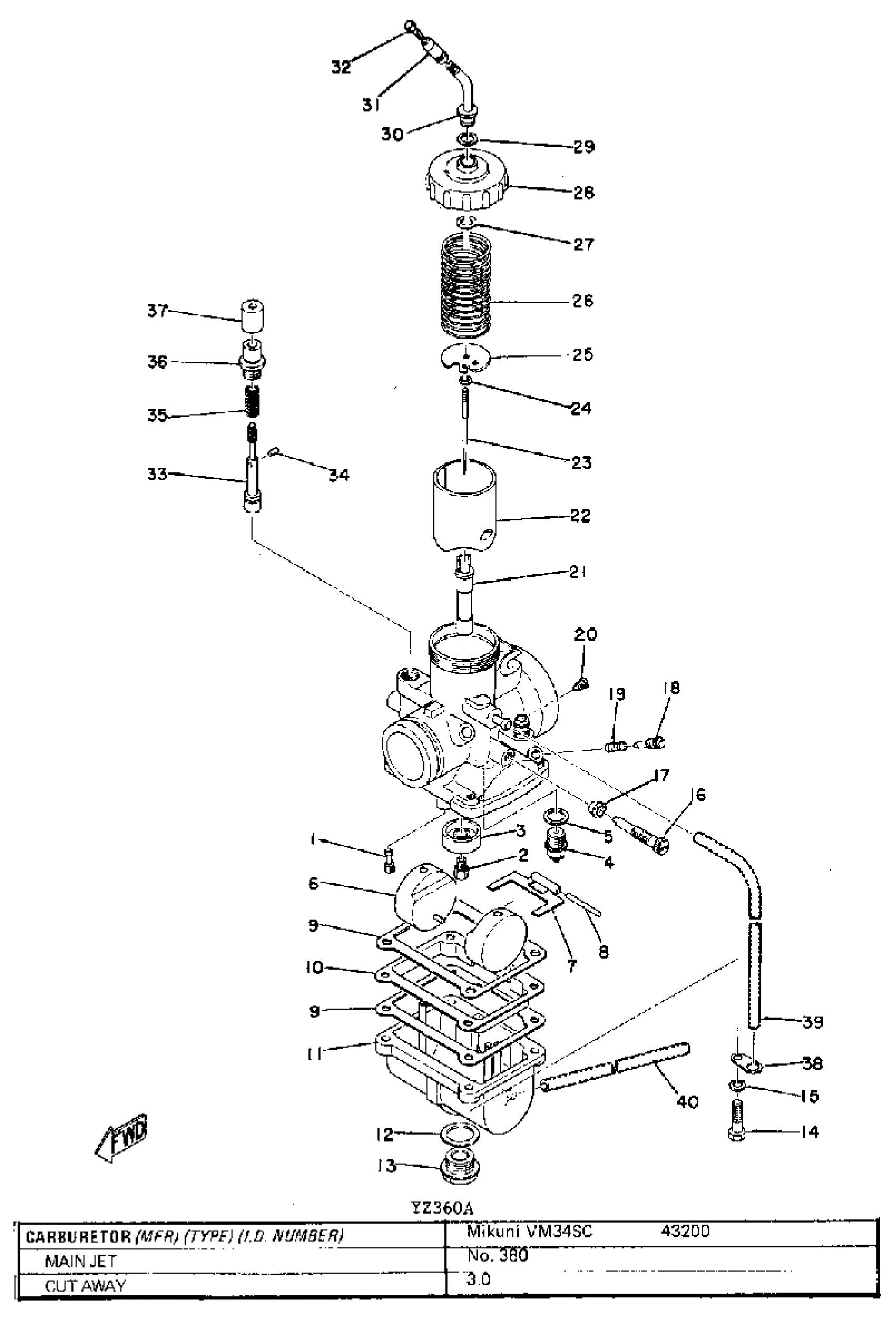

Yamaha YZ360A (YZ250A_360A) 1974 CARBURETOR Diagram

#

Description
Price

1

. JET, PILOT #60

193-14142-60-00

Unavailable

1

JET, PILOT (# 70)

193-14142-70-00

$10.99

1

CARBURETOR ASSEMBLY 1

(431-14101-03-00)

Unavailable

1

CARBURETOR ASSEMBLY 1

(432-14101-02-00)

Unavailable

2

JET,MAIN #350

137-14143-70-00

$6.99

2

JET,MAIN #380

137-14143-76-00

$7.99

3

RING

(310-14194-00-00)

Unavailable

4

NEEDLE VALVE SET

24X-14107-33-00

$50.99

5

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

6

. FLOAT

310-14185-00-00

Unavailable

7

. ARM, FLOAT

310-14187-00-00

Unavailable

8

PIN, FLOAT

127-14186-00-00

$6.65

9

. GASKET, FLOAT CHMBR

310-14184-00-00

Unavailable

10

PLATE

(310-14146-00-00)

Unavailable

11

BODY, FLOAT CHMBR 1

(310-14181-00-33)

Unavailable

12

. WASHER, PLUG SCREW

239-14117-00-00

Unavailable

13

PLUG, SCREW

(239-14115-00-00)

Unavailable

14

SCREW, PAN HEAD

98580-05020-00

Unavailable

15

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

16

THROTTLE SCREW SET

23X-14103-00-00

Unavailable

17

NUT, CABLE ADJUSTING

(310-14161-00-00)

Unavailable

18

AIR SCREW SET

23X-14104-00-00

Unavailable

19

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

20

JET, AIR (#2.0)

239-14172-20-00

Unavailable

21

. NOZZLE, MAIN P-8

239-14141-48-00

Unavailable

22

VALVE, THROTTLE 1

(275-14112-20-00)

Unavailable

22

VALVE, THROTTLE 1

(275-14112-30-00)

Unavailable

23

. NEEDLE

239-14116-05-00

Unavailable

24

CLIP

3FA-14137-00-00

Unavailable

25

. SEAT, SPRING

239-14136-00-00

Unavailable

26

SPRING, THRTL VALVE

(275-14131-00-00)

Unavailable

27

CLIP

363-14137-00-00

Unavailable

28

TOP, MIXING CHAMBER

(364-14158-00-33)

Unavailable

29

GASKET

363-14198-00-00

Unavailable

30

. GUIDE, CABLE

363-14155-00-00

Unavailable

31

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

32

CABLE ADJUST SCREW SET

17L-14106-00-00

Unavailable

33

PLUNGER, STARTER

(432-14171-00-00)

Unavailable

34

. CLIP, PLUNGER

432-14138-01-00

Unavailable

35

SPRING, PLUNGER

127-14135-00-00

Unavailable

36

CAP, PLUNGER

(432-14174-00-00)

Unavailable

37

COVER, PLUNGER CAP

(432-14173-00-00)

Unavailable

38

. PLATE

313-14146-00-00

Unavailable

39

. PIPE (43214-19700-00)

510-14197-00-00

Unavailable

40

. PIPE, OVERFLOW

310-14196-00-00

Unavailable
