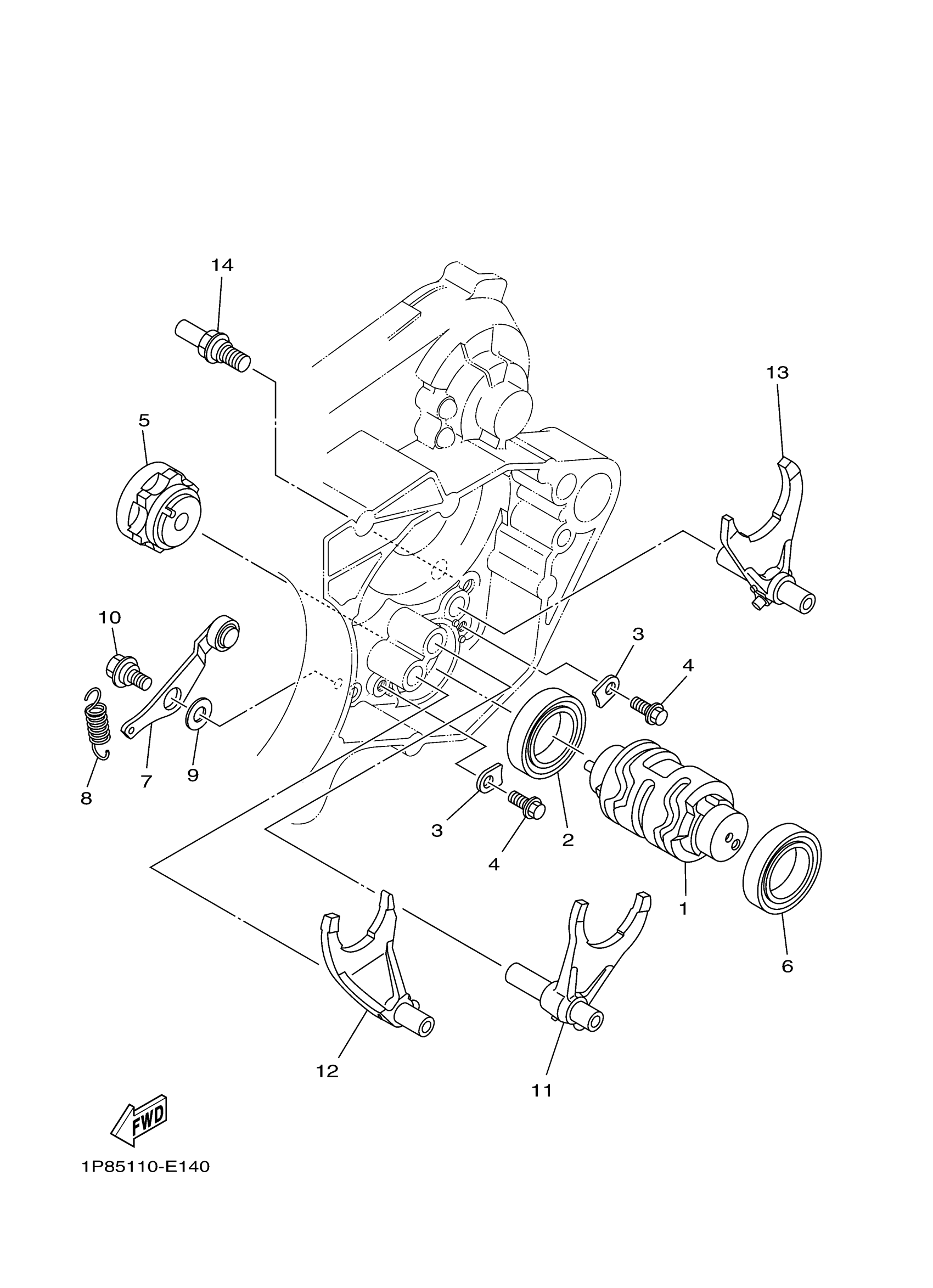

Yamaha YZ250Z (YZ250) 1P8M 2010 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

1P8-18541-00-00

$86.50

2

BEARING

93306-90506-00

$35.81

3

PLATE, STOPPER 2

5DH-18562-00-00

Unavailable

4

BOLT, FLANGE

95022-06012-00

$2.80

5

SEGMENT

4EW-18185-00-00

$90.43

6

BEARING (5K5)

93306-90501-00

$32.82

7

STOPPER LEVER ASSY

5CU-18140-01-00

$54.63

8

SPRING, TENSION(4NK)

90507-14064-00

$5.75

9

WASHER, PLATE

90201-06013-00

$3.65

10

BOLT

90109-06201-00

$5.23

11

FORK, SHIFT 1

5BE-18501-20-00

$101.83

12

FORK, SHIFT 2

5BE-18502-20-00

$114.75

13

FORK, SHIFT 3

5CU-18503-20-00

$72.32

14

BOLT

90109-08227-00

$6.92
