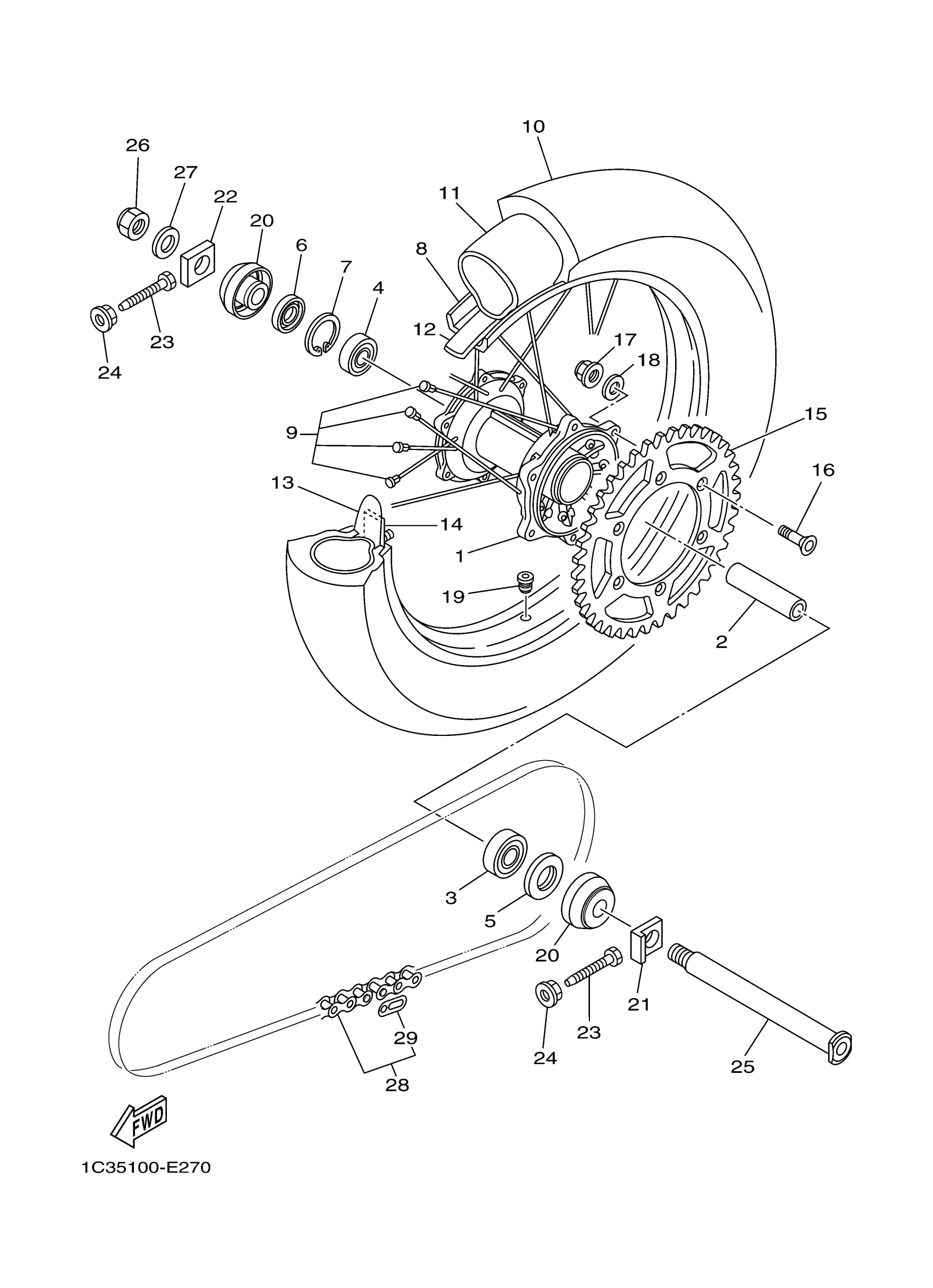

Yamaha YZ250Z (YZ250) 1P8M 2010 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

5ET-25311-00-00

$311.99

2

SPACER, BEARING

5ET-25317-00-00

$49.99

3

BEARING

93306-27212-00

$75.99

4

BEARING(85G)

93306-07202-00

$38.99

5

OIL SEAL

93106-30001-00

$12.49

6

OIL SEAL

93106-30045-00

$10.49

7

CIRCLIP

99009-45500-00

$2.17

8

RIM (2.15-19)

94421-19005-00

Unavailable

9

SPOKE SET, REAR

5HD-25304-00-00

$225.99

10

TIRE

94111-19015-00

Unavailable

11

TUBE(3JE)

94211-19273-00

$59.99

12

BAND, RIM(25-19)

94311-19155-00

$16.99

13

SPACER, BEAD

3JE-25394-00-00

$37.99

14

DAMPER

4XM-25364-00-00

$7.99

15

SPROCKET, DRIVEN (47T)

1C3-25447-00-00

Unavailable

15

SPROCKET, DRIVEN (48T)

1C3-25448-00-00

Unavailable

15

SPROCKET, DRIVEN (49T)

1C3-25449-00-00

Unavailable

15

SPROCKET, DRIVEN (50T)

1C3-25450-00-00

Unavailable

15

SPROCKET, DRIVEN (51T)

1C3-25451-00-00

Unavailable

15

SPROCKET, DRIVEN (52T)

1C3-25452-00-00

Unavailable

16

BOLT

90109-08078-00

Unavailable

17

NUT, SELF-LOCKING

90185-08008-00

Unavailable

18

WASHER, PLATE

90201-08048-00

Unavailable

19

GROMMET (397)

90480-10068-00

Unavailable

20

COLLAR ASSY

5TJ-2530S-81-00

Unavailable

21

PULLER, CHAIN 1

1C3-25388-H0-00

Unavailable

22

PULLER, CHAIN 2

1C3-25389-H0-00

Unavailable

23

BOLT

90101-08006-00

Unavailable

24

NUT

90179-08019-00

Unavailable

25

AXLE, WHEEL

1C3-25381-90-00

Unavailable

26

NUT, SELF-LOCKING

90185-20002-00

Unavailable

27

WASHER, PLATE

90201-20020-00

Unavailable

28

CHAIN(DID 520DMA4

9Y582-36113-00

Unavailable

29

JOINT, CHAIN

94682-28001-00

Unavailable
