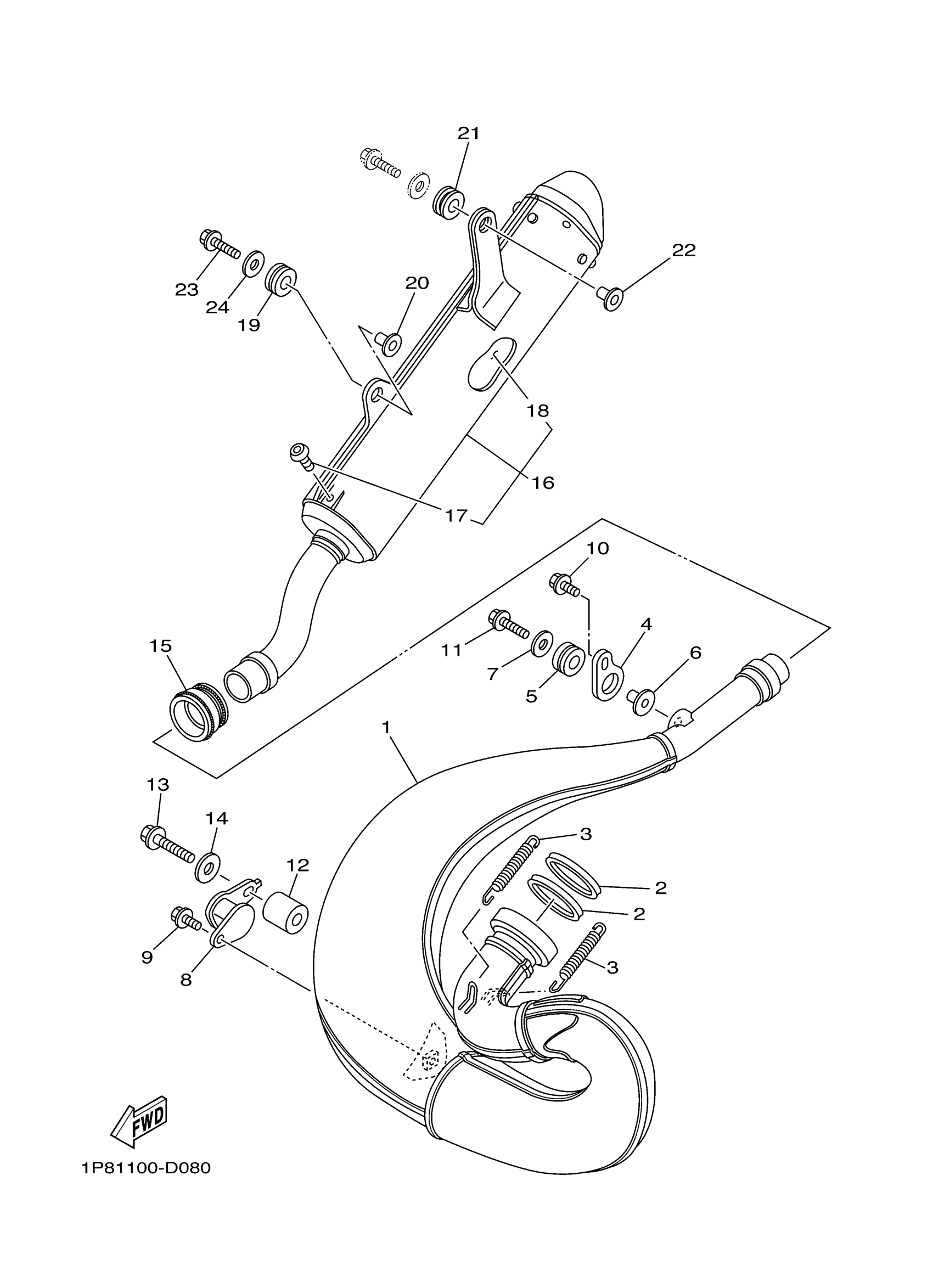

Yamaha YZ250Z (YZ250) 1P8M 2010 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

1P8-14610-00-00

$495.99

2

SEAL, EXHAUST

5MW-14642-00-00

$18.49

3

SPRING, TENSION(3FV)

90507-20052-00

$4.99

4

STAY, MUFFLER 1

5CU-14771-01-00

$33.99

5

GROMMET(4EW)

90480-16561-00

$16.99

6

COLLAR(52E)

90387-063G3-00

$8.49

7

WASHER, PLATE

90201-06033-00

$2.97

8

STAY, MUFFLER 2

5XF-14781-01-00

Unavailable

9

BOLT, WITH WASHER

90119-06133-00

$5.60

10

BOLT, WITH WASHER

90119-06133-00

$5.60

11

BOLT, FLANGE

95022-06025-00

$3.62

12

COLLAR

90387-08030-00

$10.49

13

BOLT, FLANGE

90105-08136-00

$8.49

14

WASHER, PLATE

90201-08049-00

$7.49

15

JOINT, EXHAUST 1

3JE-14615-01-00

$55.99

16

SILENCER, EXHAUST

5NX-14753-20-00

Unavailable

17

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

18

. FIBER

5HC-1469A-10-00

Unavailable

19

GROMMET(4EW)

90480-16561-00

$16.99

20

COLLAR(52E)

90387-063G3-00

$8.49

21

GROMMET(36Y)

90480-16404-00

Unavailable

22

COLLAR

90387-06039-00

Unavailable

23

BOLT, FLANGE

95022-06030-00

Unavailable

24

WASHER, PLATE

90201-06033-00

$2.97
