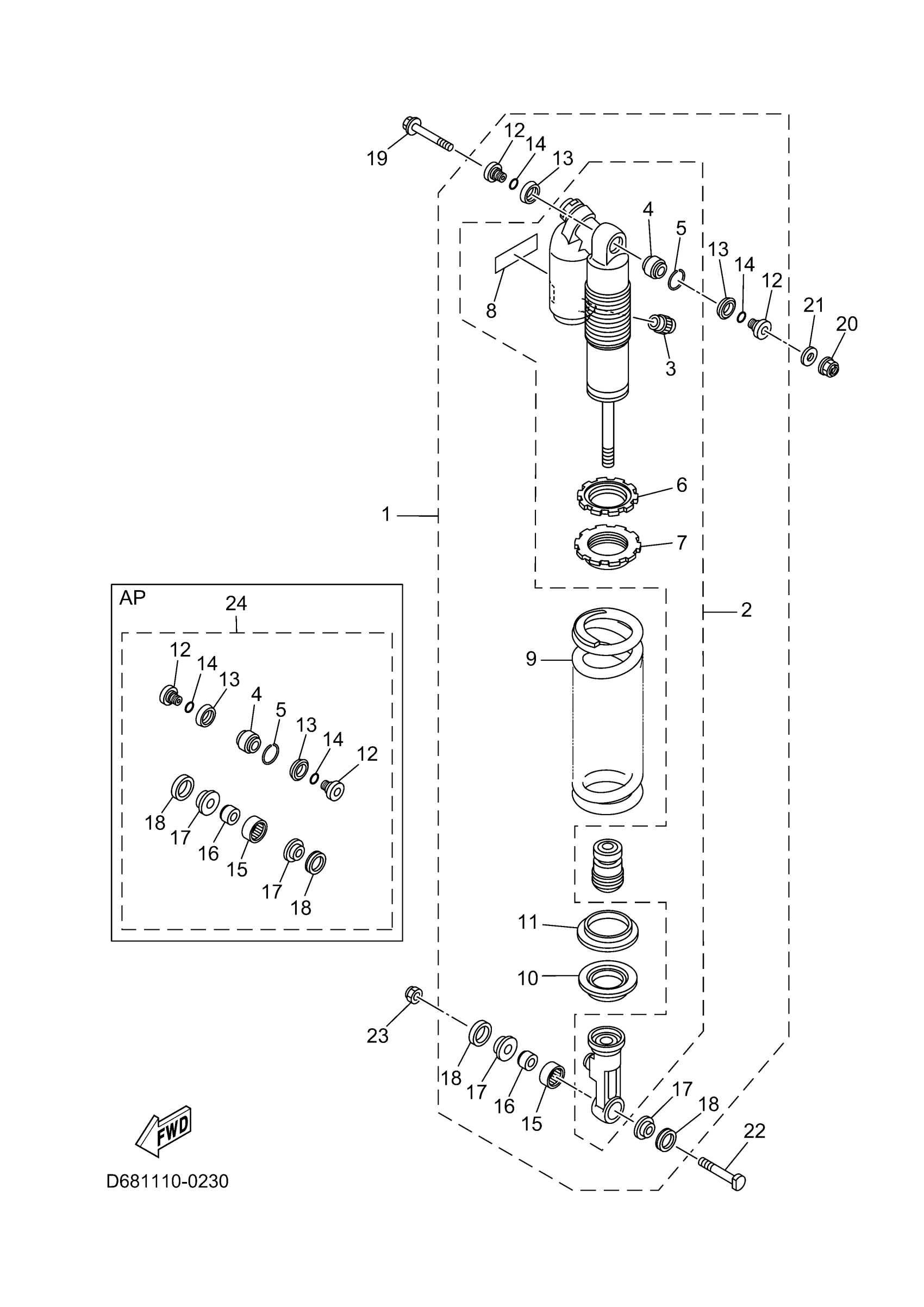

Yamaha YZ250XT (YZ250X) DF45 2026 REAR SUSPENSION Diagram

SHOCK ABSORBER ASSY, REAR

BRY-22200-00-00

$1,282.99

DAMPER SUB ASSY

BRY-22201-00-00

$738.99

CAP, AIR VALVE

509-23184-L0-00

$6.99

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

CIRCLIP

5DH-23183-00-00

$5.49

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

LABEL, WARNING

4AA-22259-80-00

$13.49

. SPRING (K=48N/MM)

5UN-22212-30-00

Unavailable

GUIDE, SPRING 1

1C3-22214-50-00

$38.99

GUIDE, SPRING 2

5MV-22224-00-00

$24.99

COLLAR, DISTANCE

1C3-22253-50-00

$45.99

SEAL, DUST

3JE-22475-00-00

$13.49

SEAL, RING

4EW-22474-00-00

$6.99

BEARING

5UN-22176-00-00

$32.99

BUSH

5MV-22184-00-00

Unavailable

COLLAR, DISTANCE

1C3-22253-L1-00

Unavailable

SEAL, DUST

5NY-22475-00-00

Unavailable

BOLT 2

5XE-22242-01-00

Unavailable

NUT, S/L FLANGE

95602-10200-00

Unavailable

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

BOLT 1

5NY-22241-00-00

Unavailable

NUT, SELF-LOCKING

90185-10012-00

Unavailable

SHOCK BEARING KIT

1SS-W002G-00-00

Unavailable
