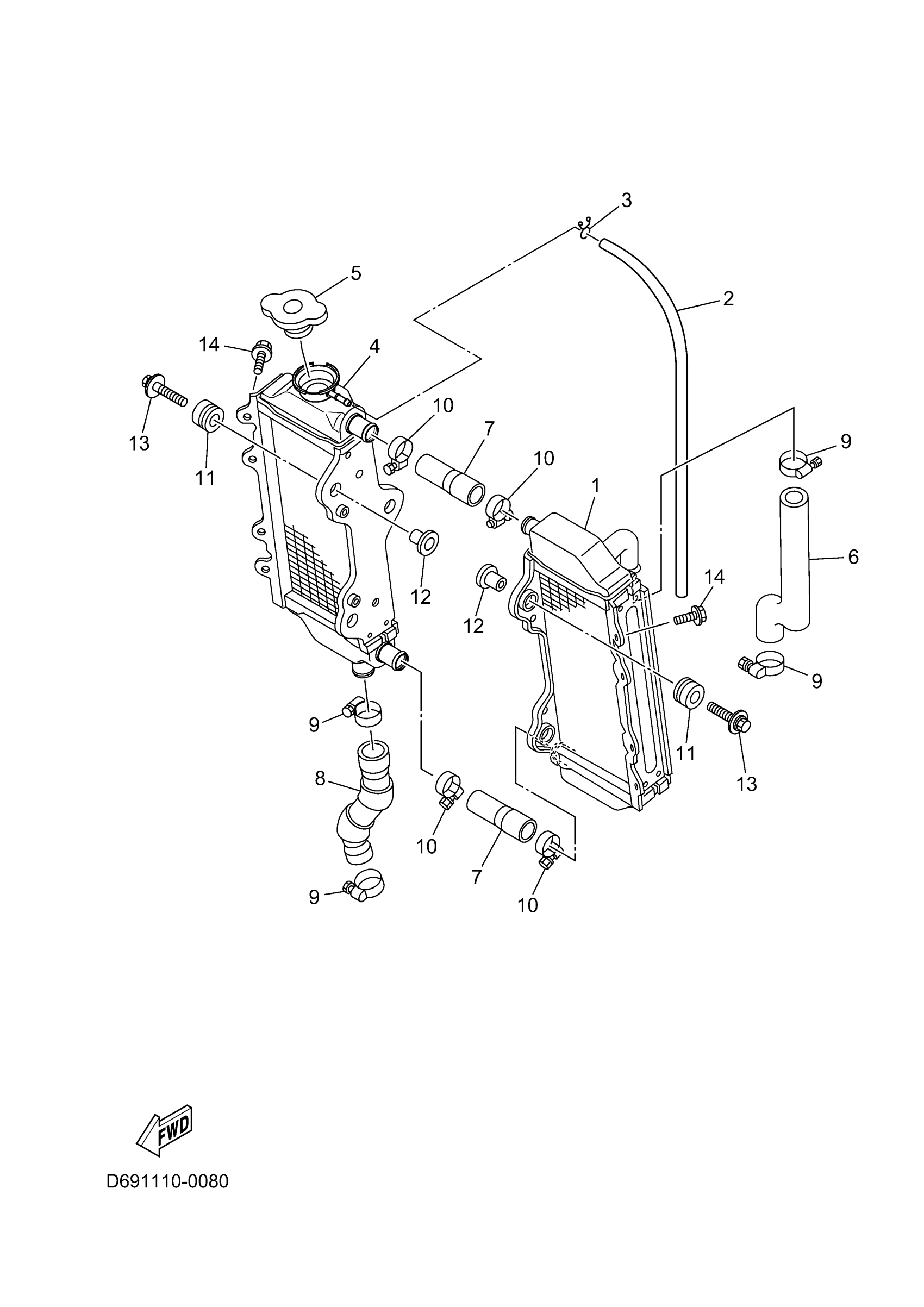

Yamaha YZ250XT (YZ250X) DF45 2026 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

D69-1240A-00-00

$174.48

2

PIPE, BREATHER

BHR-12463-00-00

$4.94

3

CLIP 101235600

90467-08003-00

$5.88

4

RADIATOR COMP

D69-12461-00-00

$174.48

5

CAP, RADIATOR

5SL-12462-01-00

Unavailable

6

PIPE 1

BCR-12481-00-00

$12.85

7

PIPE 2

D69-12482-00-00

$6.48

8

PIPE 4

1P8-12484-00-00

$18.09

9

HOSE CLAMP ASSY

90450-28001-00

$11.70

10

HOSE CLAMP ASSY(64X)

90450-22M14-00

$12.87

11

GROMMET(3RB)

90480-15528-00

$6.22

12

COLLAR

90387-06065-00

$8.92

13

BOLT, WITH WASHER

90119-06262-00

$5.86

14

BOLT, WITH WASHER

90119-06239-00

$2.92
