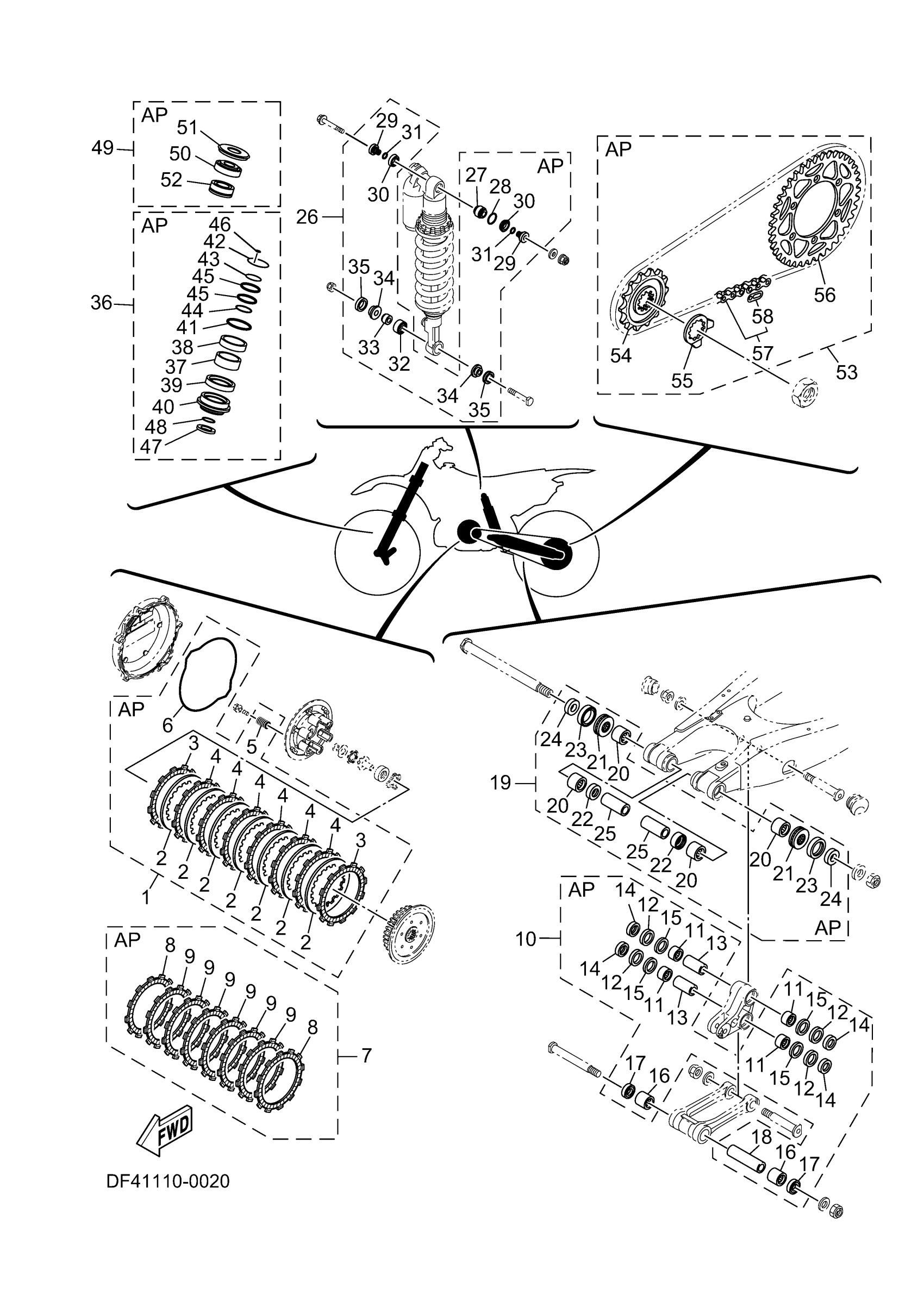

Yamaha YZ250XS (YZ250X) DF41 2025 3 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

BRY-W001G-00-00

$204.99

2

PLATE, CLUTCH 2

4X7-16325-10-00

$16.49

3

PLATE, FRICTION

5TA-16321-00-00

$25.99

4

PLATE, FRICTION

B7N-16321-00-00

$13.99

5

SPRING COMPRESSION240163330000

90501-23141-00

$14.99

6

GASKET, 2

5CU-15463-01-00

$13.49

7

FRICTION PLATE KIT

BRY-W001M-00-00

$91.99

8

PLATE, FRICTION

5TA-16321-00-00

$25.99

9

PLATE, FRICTION

B7N-16321-00-00

$13.99

10

SHOCK LINKAGE BEARING KIT

B1B-W002E-00-00

$159.99

11

BEARING

93315-32166-00

$28.99

12

OIL SEAL

93109-25001-00

$11.49

13

COLLAR

90387-16025-00

$35.99

14

WASHER

90209-16011-00

$17.99

15

WASHER, PLATE

90201-21014-00

$8.49

16

BEARING

93315-32166-00

$28.99

17

OIL SEAL

93109-21001-00

Unavailable

18

COLLAR

90387-14016-00

Unavailable

19

SWING ARM PIVOT BEARING KIT

1HC-W002C-00-00

Unavailable

20

BEARING, CYLINDRICAL(2VM)

93317-22262-00

Unavailable

21

BEARING

93342-22217-00

Unavailable

22

OIL SEAL

93106-22002-00

Unavailable

23

OIL SEAL (36F)

93109-28043-00

Unavailable

24

COLLAR

90387-18012-00

Unavailable

25

COLLAR

90387-18004-00

Unavailable

26

SHOCK BEARING KIT

1SS-W002G-00-00

Unavailable

27

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

Unavailable

28

CIRCLIP

5DH-23183-00-00

Unavailable

29

COLLAR, DISTANCE

1C3-22253-50-00

Unavailable

30

SEAL, DUST

3JE-22475-00-00

Unavailable

31

SEAL, RING

4EW-22474-00-00

Unavailable

32

BEARING

5UN-22176-00-00

Unavailable

33

BUSH

5MV-22184-00-00

Unavailable

34

COLLAR, DISTANCE

1C3-22253-L1-00

Unavailable

35

SEAL, DUST

5NY-22475-00-00

Unavailable

36

FORK SEAL KIT (ONE FORK)

BCR-W003B-00-00

Unavailable

37

PISTON, FRONT FORK

5XE-23171-L0-00

Unavailable

38

METAL, SLIDE 1

5XE-23125-L0-00

Unavailable

39

OIL SEAL

B29-23145-00-00

Unavailable

40

SEAL, DUST

5XE-23144-L0-00

Unavailable

41

O-RING

1C3-23147-L1-00

Unavailable

42

O-RING

1C3-23188-L2-00

Unavailable

43

O-RING

1C3-23188-N0-00

Unavailable

44

O-RING

1C3-23188-P0-00

Unavailable

45

O-RING

1AE-23147-01-00

Unavailable

46

O-RING

1C3-23188-R1-00

Unavailable

47

GASKET

2HH-23158-L0-00

Unavailable

48

GASKET

276-23114-02-00

Unavailable

49

STEERING BEARING K

D68-W000B-00-00

Unavailable

50

BEARING(4EW)

93332-00078-00

Unavailable

51

COVER, BALL RACE 2

4EW-23416-00-00

Unavailable

52

BEARING(4SR)

93332-00081-00

Unavailable

53

CHAIN & SPROCKET KIT

BRY-W001A-00-00

Unavailable

54

SPROCKET, DRIVE (14T)

9383E-14215-00

Unavailable

55

WASHER, LOCK(1KT)

90215-21256-00

Unavailable

56

SPROCKET, DRIVEN (50T)

B2W-25450-00-00

Unavailable

57

CHAIN

9Y582-50113-00

Unavailable

58

JOINT, CHAIN

94682-50021-00

Unavailable
