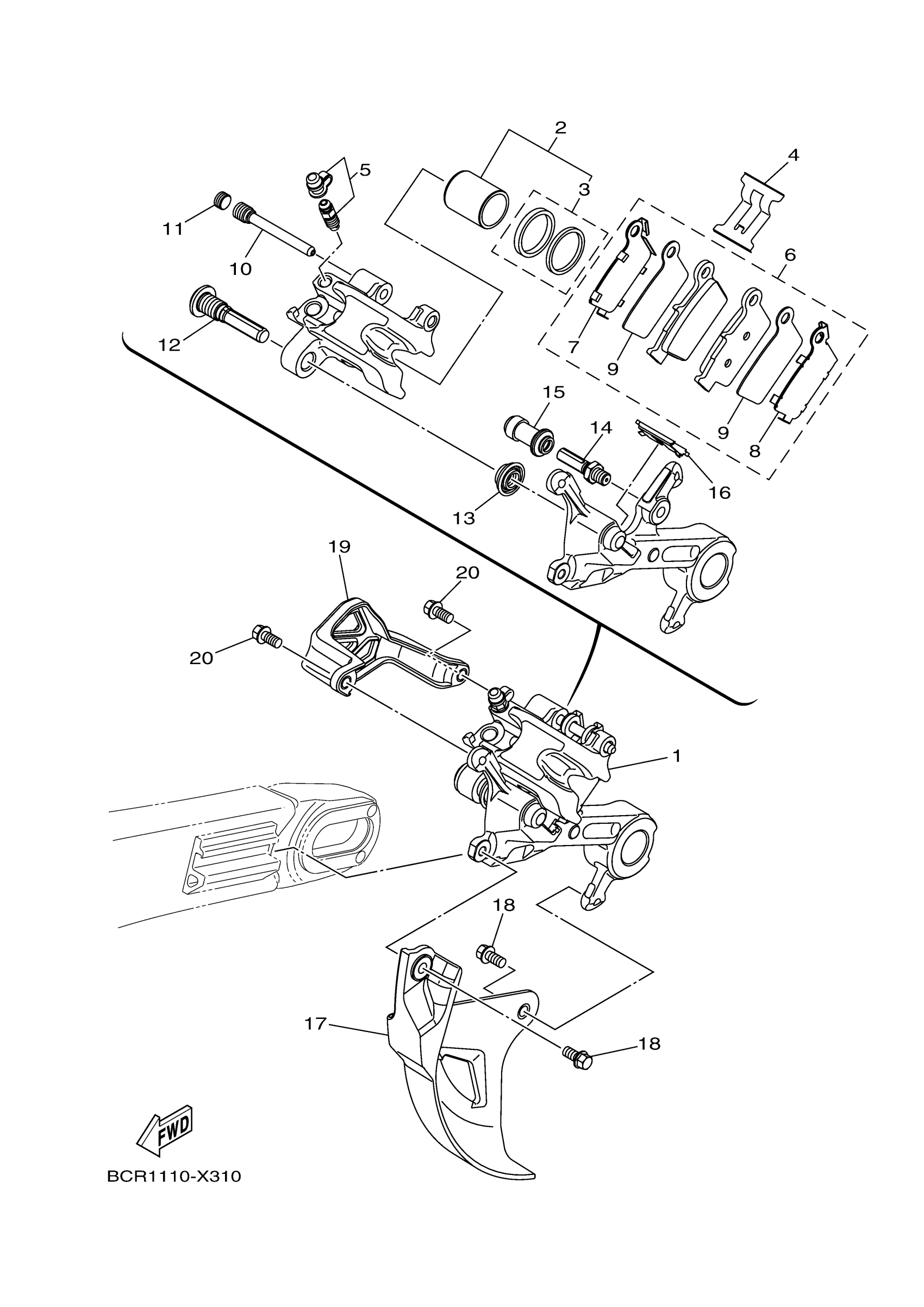

Yamaha YZ250XR (YZ250X) BRY5 2024 REAR BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSY, REAR

BCR-2580W-00-00

$271.99

2

PISTON ASSY, CALIPER

5UN-W0057-50-00

$57.99

3

CALIPER SEAL KIT

5UN-W0047-50-00

$16.49

4

SUPPORT, PAD

5DH-25919-50-00

$20.99

5

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

6

BRAKE PAD KIT 2

1C3-W0046-50-00

$45.99

7

.. SHIM, CALIPER

5UN-25828-60-00

Unavailable

8

SHIM, CALIPER

5UN-25827-60-00

$15.49

9

INSULATOR, HEAT

5UN-22898-60-00

$19.99

10

PIN, PAD

8CR-25924-00-00

$14.49

11

PLUG

5DH-25916-00-00

$9.99

12

PIN, SLIDE

5DH-25914-50-00

$22.99

13

BOOT, CALIPER

3JD-25917-00-00

$8.99

14

PIN, SLIDE

5UN-25914-00-00

$14.49

15

BOOT 2

1UY-25937-51-00

$14.49

16

RETAINER

5UN-25913-00-00

Unavailable

17

PROTECTOR, DISK BRAKE

17D-25718-50-00

Unavailable

18

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable

19

PROTECTOR, CALIPER 2

B2W-2583E-00-00

Unavailable

20

BOLT, FLANGE DEEP RECESS

95E32-06012-00

Unavailable
