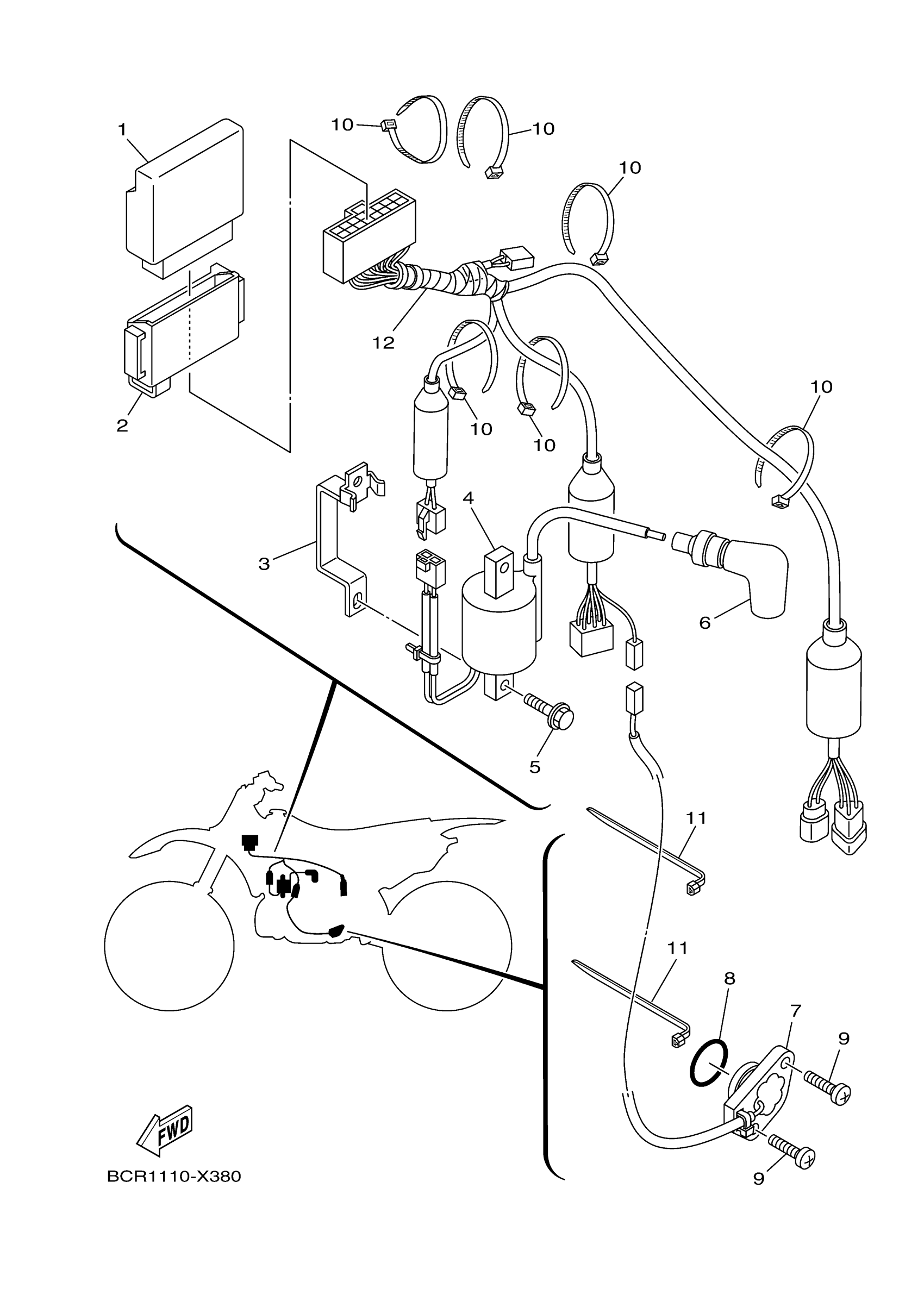

Yamaha YZ250XP (YZ250X) BRY1 2023 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

BRY-85540-00-00

Unavailable

2

BAND

1P8-85546-00-00

$18.49

3

CORE, SIDE

1P8-8231U-10-00

$19.99

4

IGNITION COIL ASSY

1P8-82310-03-00

$113.99

5

BOLT, FLANGE

90105-06060-00

$3.88

6

PLUG CAP ASSY

8DG-82370-00-00

$49.99

7

NEUTRAL SWITCH ASSY

1P8-82540-02-00

$59.99

8

O-RING

93210-21001-00

$5.60

9

SCREW, BIND

98902-05014-00

$1.71

10

CLAMP(MF1)

90464-15152-00

$5.60

11

CLAMP(4FM)

90464-15195-00

$4.41

12

WIRE SUB LEAD

BCR-82509-01-00

$95.99
