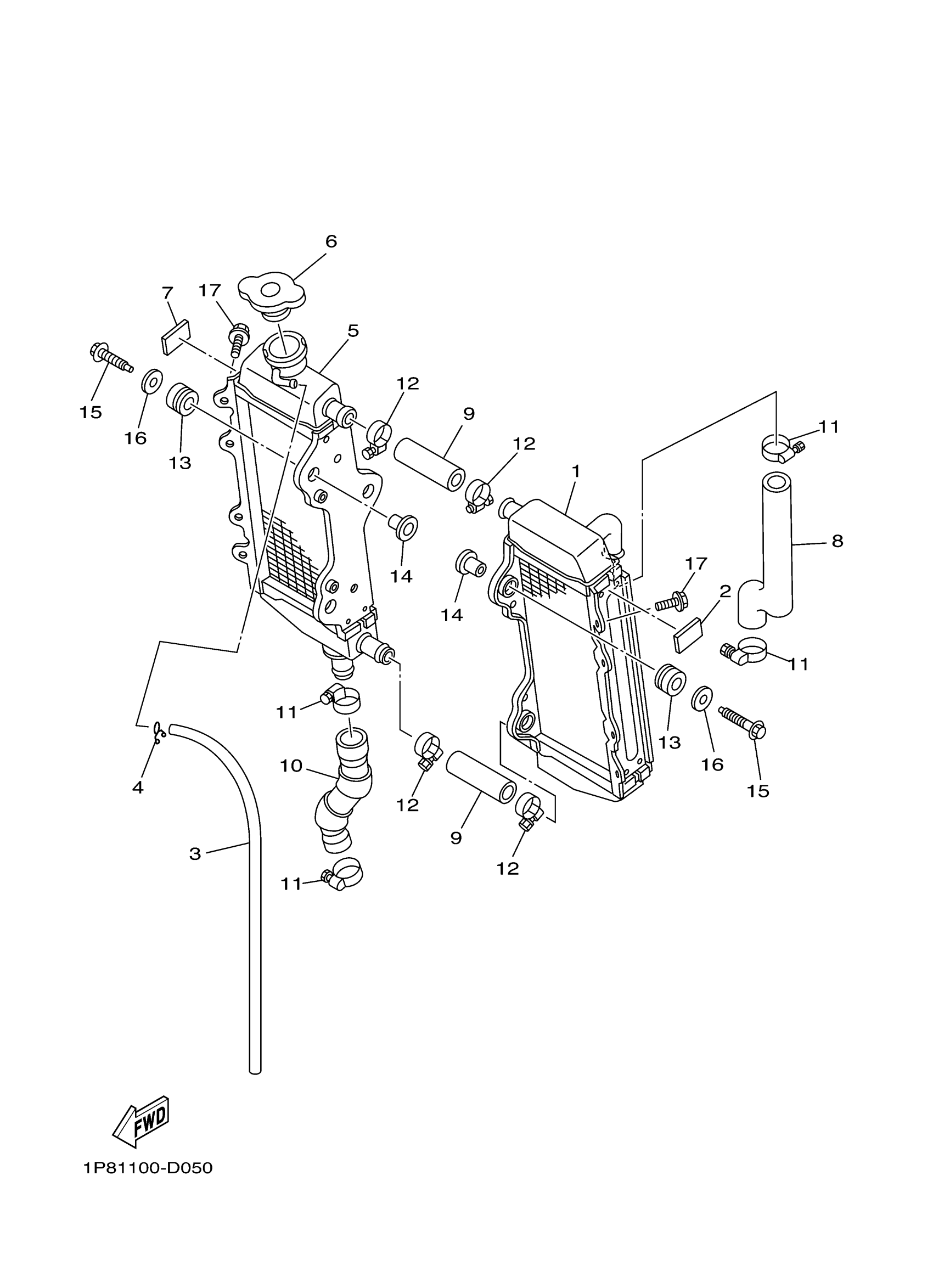

Yamaha YZ250XM (YZ250X) BF1M 2021 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

5NX-1240A-00-00

$203.99

2

DAMPER, RADIATOR

1C3-12465-00-00

$6.99

3

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

4

CLIP

90467-090A2-00

$4.41

5

RADIATOR ASSY

5NX-12461-00-00

$203.99

6

CAP, RADIATOR

4FL-12462-00-00

$62.99

7

DAMPER, RADIATOR

1C3-12465-00-00

$6.99

8

PIPE 1

5CU-12481-10-00

$28.99

9

PIPE 2

5NY-12482-00-00

$7.99

10

PIPE 4

1P8-12484-00-00

$22.99

11

HOSE CLAMP ASSY

90450-28001-00

$14.99

12

HOSE CLAMP ASSY(64X)

90450-22M14-00

$16.99

13

GROMMET(3RB)

90480-15528-00

$8.49

14

COLLAR

90387-06065-00

$12.49

15

BOLT, FLANGE

90105-06111-00

$8.49

16

WASHER, PLATE (583 REAR FENDER

90201-06571-00

Unavailable

17

BOLT, FLANGE

90105-06118-00

Unavailable
