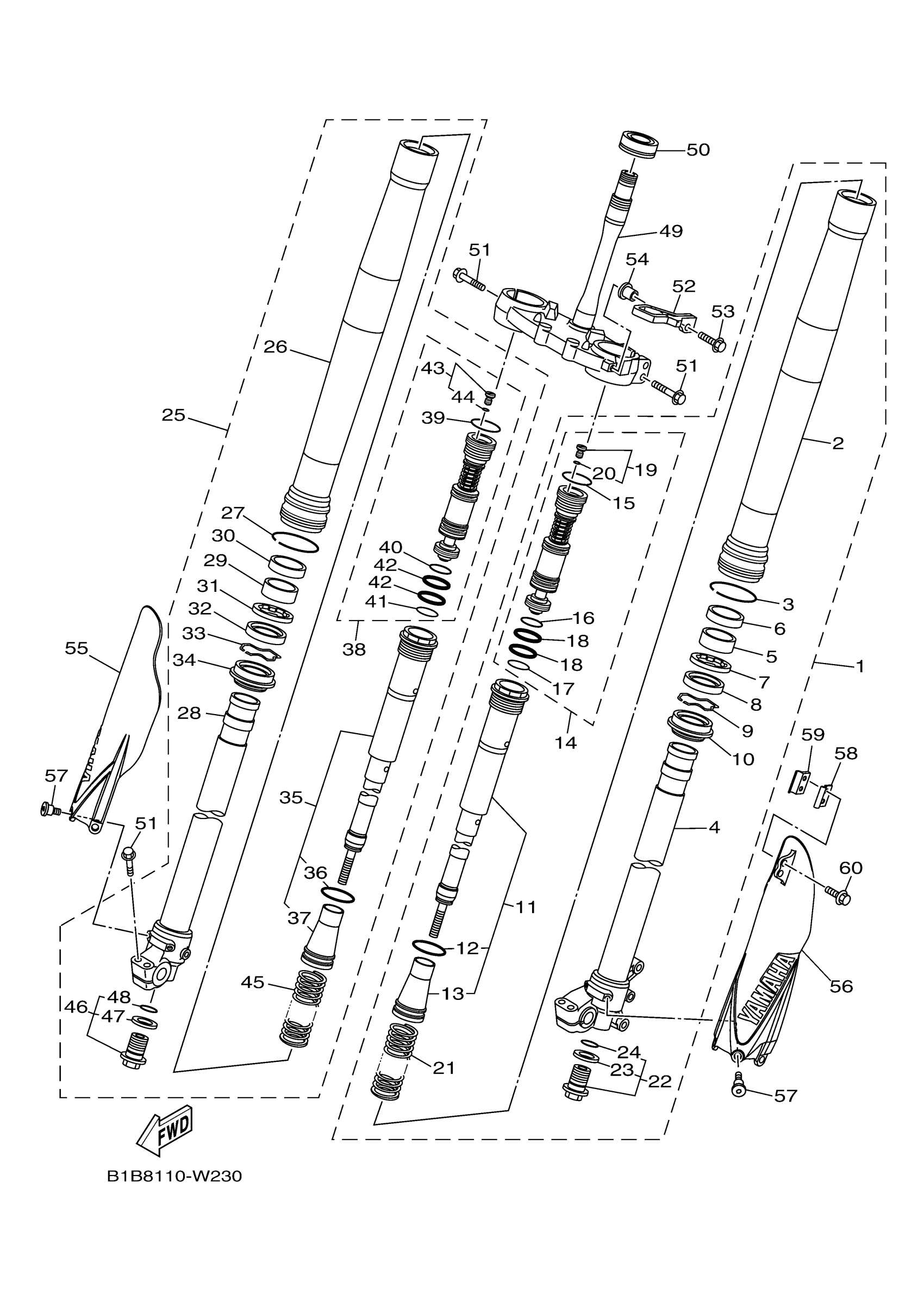

Yamaha YZ250XM (YZ250X) BF1M 2021 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

BF1-23102-00-00

Unavailable

2

TUBE, OUTER

1SS-23136-00-00

Unavailable

3

RING, SNAP

17D-23153-00-00

$4.63

4

INNER TUBE COMP.2

1SS-23120-00-00

Unavailable

5

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

6

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

7

WASHER, OIL SEAL

5XC-23146-10-00

$14.49

8

OIL SEAL

17D-23145-00-00

$27.99

9

RING, SNAP

5XE-23153-L0-00

$7.99

10

SEAL, DUST

5XE-23144-L0-00

$22.99

11

CYLINDER COMP., FRONT FORK

BF1-23170-00-00

$365.99

12

O-RING

1C3-23147-L1-00

$3.48

13

SEAT, SPRING UPPER

17D-23142-00-00

$74.99

14

VALVE COMP.

BF1-2316A-00-00

$332.99

15

O-RING

1C3-23188-L1-00

$2.50

16

O-RING

1C3-23188-N0-00

Unavailable

17

O-RING

1C3-23188-P0-00

Unavailable

18

O-RING

1W4-23114-L0-00

Unavailable

19

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

20

O-RING

1C3-23188-R1-00

Unavailable

21

. SPRING, FRONT FORK(K=4.3N/MM)

1C3-23141-E1-00

Unavailable

22

BOLT, CAP

5XC-23111-01-00

Unavailable

23

GASKET

2HH-23158-L0-00

Unavailable

24

GASKET

276-23114-01-00

Unavailable

25

FRONT FORK ASSY (R.H)

BF1-23103-00-00

Unavailable

26

TUBE, OUTER

1SS-23136-00-00

Unavailable

27

RING, SNAP

17D-23153-00-00

$4.63

28

INNER TUBE COMP.1

1SS-23110-00-00

Unavailable

29

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

30

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

31

WASHER, OIL SEAL

5XC-23146-10-00

$14.49

32

OIL SEAL

17D-23145-00-00

$27.99

33

RING, SNAP

5XE-23153-L0-00

$7.99

34

SEAL, DUST

5XE-23144-L0-00

$22.99

35

CYLINDER COMP., FRONT FORK

BF1-23170-00-00

$365.99

36

O-RING

1C3-23147-L1-00

$3.48

37

SEAT, SPRING UPPER

17D-23142-00-00

$74.99

38

VALVE COMP.

BF1-2316A-00-00

$332.99

39

O-RING

1C3-23188-L1-00

$2.50

40

O-RING

1C3-23188-N0-00

Unavailable

41

O-RING

1C3-23188-P0-00

Unavailable

42

O-RING

1W4-23114-L0-00

Unavailable

43

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

44

O-RING

1C3-23188-R1-00

Unavailable

45

. SPRING, FRONT FORK(K=4.3N/MM)

1C3-23141-E1-00

Unavailable

46

BOLT, CAP

5XC-23111-01-00

Unavailable

47

GASKET

2HH-23158-L0-00

Unavailable

48

GASKET

276-23114-01-00

Unavailable

49

UNDER BRACKET COMP.

1SS-23340-10-00

Unavailable

50

BEARING(4SR)

93332-00081-00

Unavailable

51

BOLT, FLANGE DEEP RECESS

95E34-08035-00

Unavailable

52

GUIDE, CABLE

BF1-23389-00-00

Unavailable

53

BOLT, FLANGE DEEP RECESS

95E32-06016-00

Unavailable

54

COLLAR

90387-06104-00

Unavailable

55

PROTECTOR 2

17D-2315J-H0-00

Unavailable

56

PROTECTOR 1

17D-2315H-H0-00

Unavailable

57

BOLT

90109-06232-00

Unavailable

58

CLAMP

17D-23466-00-00

Unavailable

59

CLAMP

17D-23467-00-00

Unavailable

60

BOLT, FLANGE

90105-06170-00

Unavailable
