Description

Price

1

FENDER, FRONT

17D-21511-50-00

$32.99

2

COLLAR

90387-06259-00

$8.49

3

BOLT, FLANGE

90105-06127-00

$8.49

4

WASHER, PLATE

90201-06108-00

$4.61

5

REAR FENDER COMP.

1SS-21610-00-00

$39.99

6

NUT, REAR FENDER

5XE-21635-10-00

$13.49

7

BOLT, FLANGE

90105-06100-00

$7.49

8

WASHER, PLATE

90201-06032-00

$8.49

9

BOLT, FLANGE

90105-06102-00

$3.50

10

WASHER, PLATE

90201-06033-00

$2.97

11

BOLT, WITH WASHER

90119-06149-00

$8.49

12

COLLAR

90387-06009-00

$10.49

13

GUARD, FLAP

5TA-21642-00-00

$39.99

14

SCREW, TAPPING

97702-60016-00

$2.19

15

TUNING FORK MARK

5FK-2175C-31-00

$5.49

16

LABEL, CAUTION

3XJ-2415E-A1-00

Unavailable

17

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

18

PLATE, COMPETITION USA

17D-2812P-00-00

Unavailable

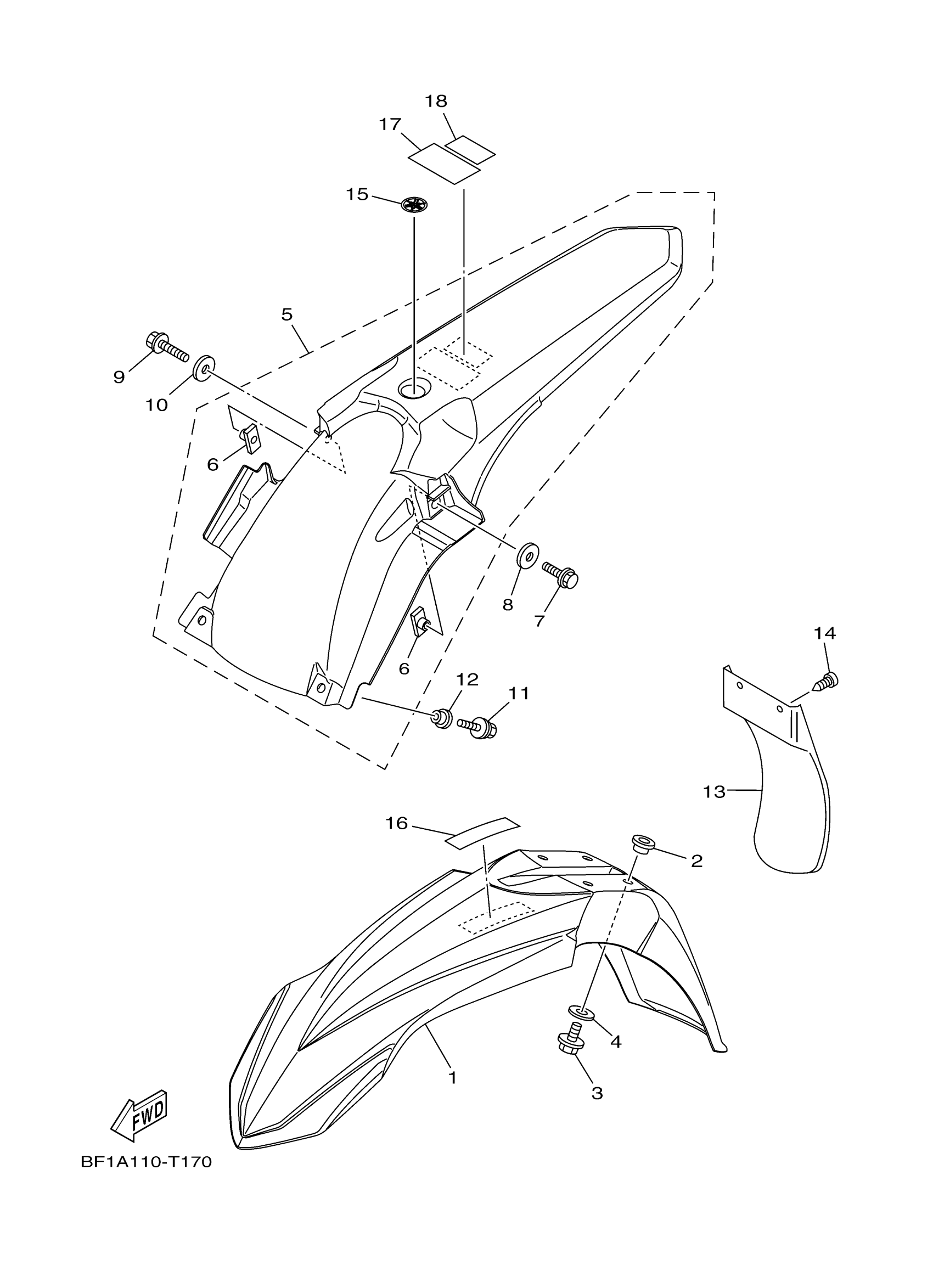

Yamaha YZ250XL (YZ250X) BF1H 2020 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, FLANGE

WASHER, PLATE

REAR FENDER COMP.

NUT, REAR FENDER

BOLT, FLANGE

WASHER, PLATE

BOLT, FLANGE

WASHER, PLATE

BOLT, WITH WASHER

COLLAR

GUARD, FLAP

SCREW, TAPPING

TUNING FORK MARK

LABEL, CAUTION

LABEL, CAUTION

PLATE, COMPETITION USA
