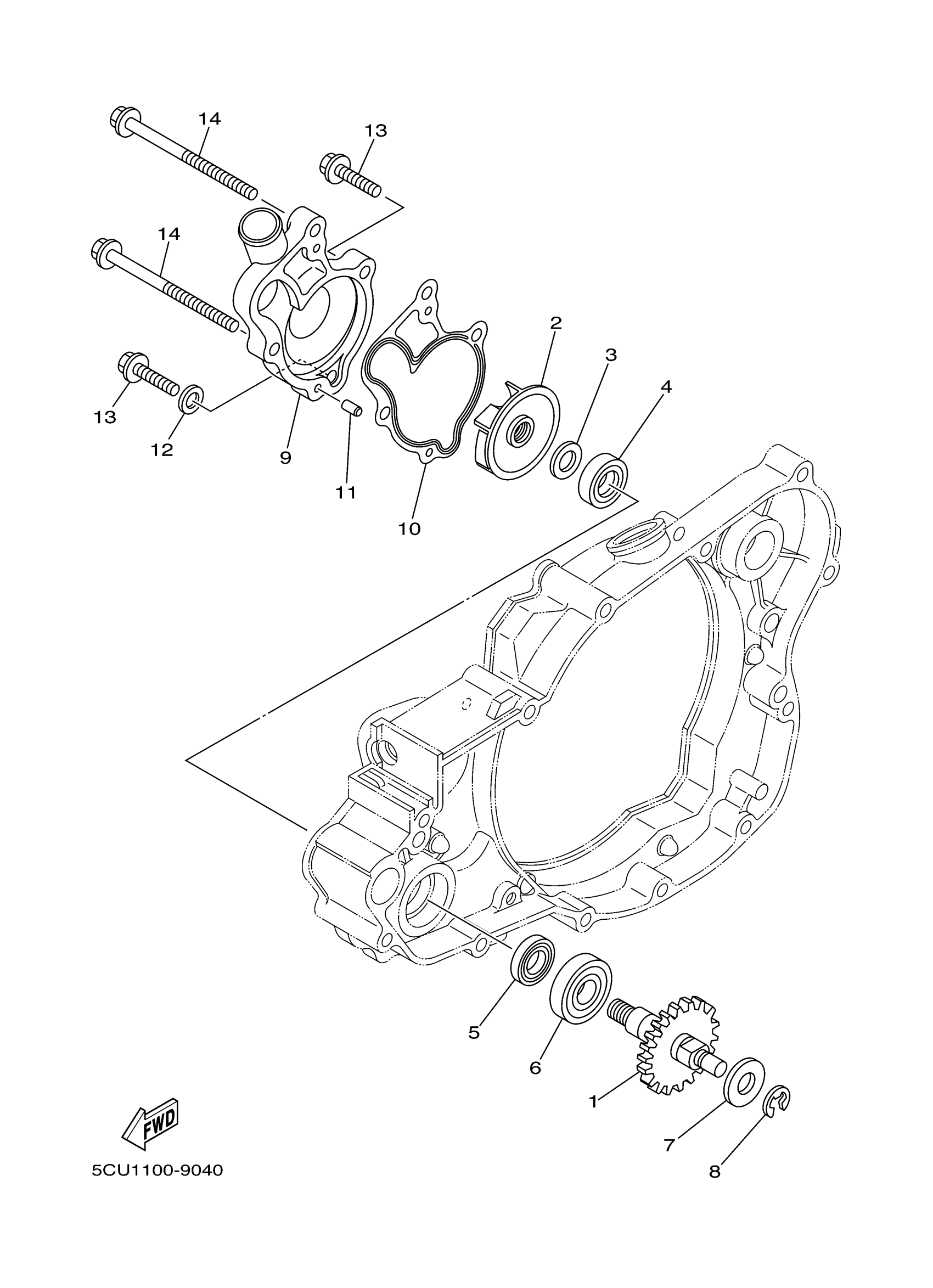

Yamaha YZ250XJ (YZ250X) BF1A 2018 WATER PUMP Diagram

GEAR, IMPELLER SHAFT

5CU-12459-00-00

$132.99

IMPELLER, WATER PUMP

5DJ-12451-00-00

$89.99

WASHER, PLATE (5F7)

90201-08512-00

$8.49

OIL SEAL

93109-11073-00

$11.49

OIL SEAL (12X22X5-371)

93102-12106-00

$11.49

BRG,R-B 6001 28MM 28G KY

93306-00105-00

$30.99

WASHER, PLATE (3L7)

90201-08784-00

$3.23

CIRCLIP(53L)

99001-06600-00

$1.01

COVER, HOUSING

5MW-12422-00-00

Unavailable

GASKET, HOUSING COVER 2

5XF-12428-00-00

$6.99

PIN,DOWEL (603)

93604-10011-00

$8.49

GASKET 256113960000

90430-06014-00

Unavailable

BOLT, FLANGE

95022-06025-00

$3.62

BOLT, FLANGE

95022-06065-00

$1.96
