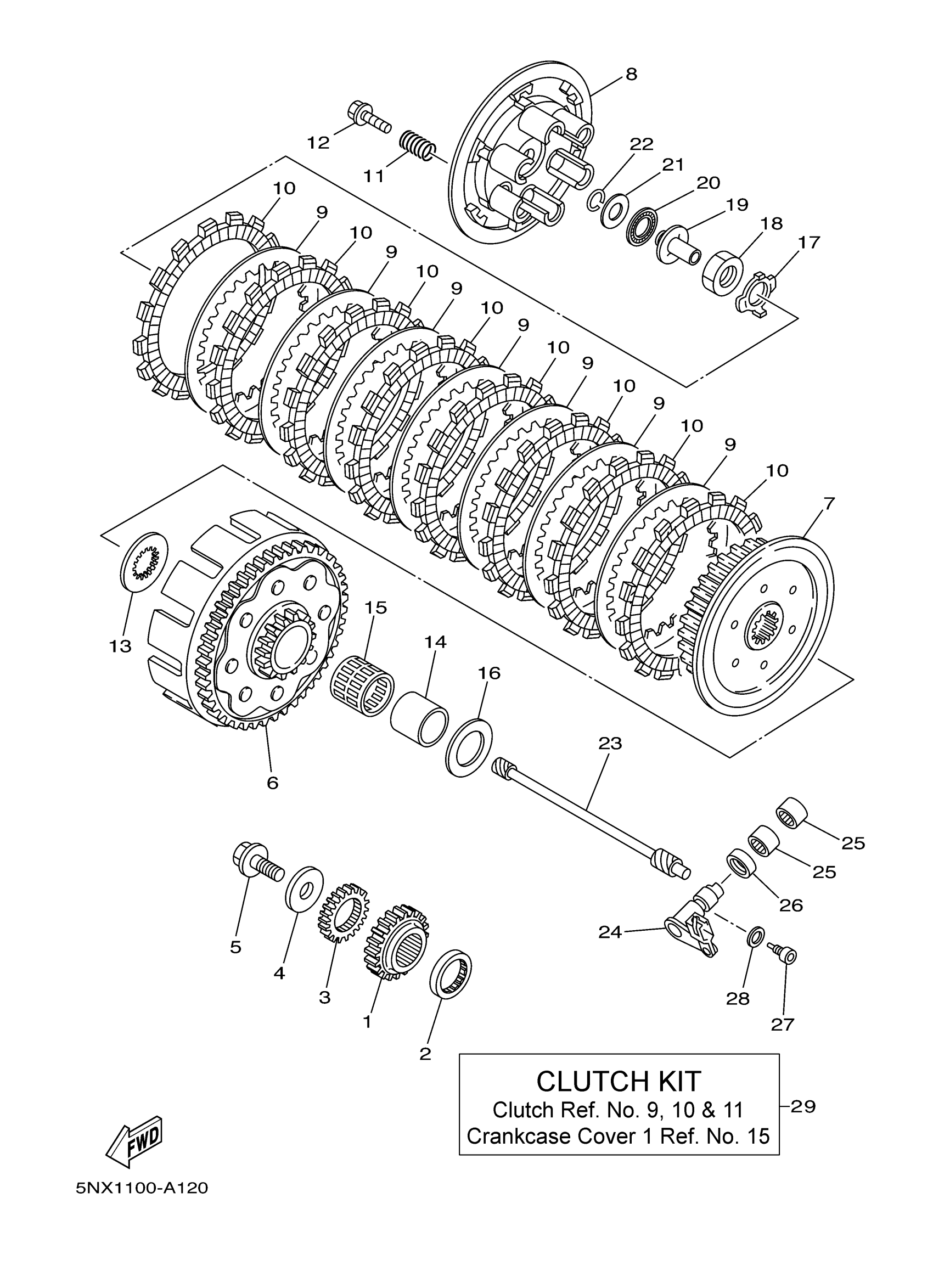

Yamaha YZ250XJ (YZ250X) BF1A 2018 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

5DJ-16111-00-00

$60.99

2

WASHER, THRUST 1

5MW-16113-00-00

$25.99

3

GEAR, GOVERNOR DRIVE

5CU-11956-00-00

$43.99

4

WASHER, PLATE(3XV)

90201-105P3-00

$9.49

5

BOLT, WASHER BASED(1TX)

90105-10445-00

$11.49

6

PRIMARY DRIVEN GEAR COMP.

5DJ-16150-00-00

$379.99

7

BOSS, CLUTCH

5NX-16371-00-00

$171.99

8

PLATE, PRESSURE 1

5JG-16351-00-00

$90.99

9

PLATE, CLUTCH 2

4X7-16325-10-00

$16.49

10

PLATE, FRICTION

3XK-16321-00-00

$28.99

11

SPRING COMPRESSION240163330000

90501-23141-00

$14.99

12

SCREW, WITH WASHER

90159-06049-00

$8.49

13

PLATE, THRUST 1

5CU-16154-00-00

$31.99

14

SPACER 1

2VM-16181-00-00

$46.99

15

BEARING, CYLINDRICAL(2VM)

93310-230T7-00

$38.99

16

PLATE, THRUST

2K7-16154-00-00

Unavailable

17

WASHER, LOCK (34L)

90215-20231-00

Unavailable

18

NUT (3R4)

90170-20255-00

Unavailable

19

ROD, PUSH 1

5BE-16356-00-00

Unavailable

20

BEARING, THRUST (713)

93340-21505-00

Unavailable

21

WASHER, PLATE(1RE)

90201-125L6-00

Unavailable

22

CIRCLIP (4G0)

93440-10085-00

Unavailable

23

ROD, PUSH 2

1P8-16357-01-00

Unavailable

24

PUSH LEVER ASSY

5CU-16380-10-00

Unavailable

25

BRG,CYL-CAL ROLLER 6G TM

93315-11206-00

Unavailable

26

OIL SEAL (4G0)

93102-12224-00

Unavailable

27

BOLT

90109-05009-00

Unavailable

28

GASKET

90430-05242-00

Unavailable

29

CLUTCH PLATE KIT

BF1-W001G-00-00

Unavailable
