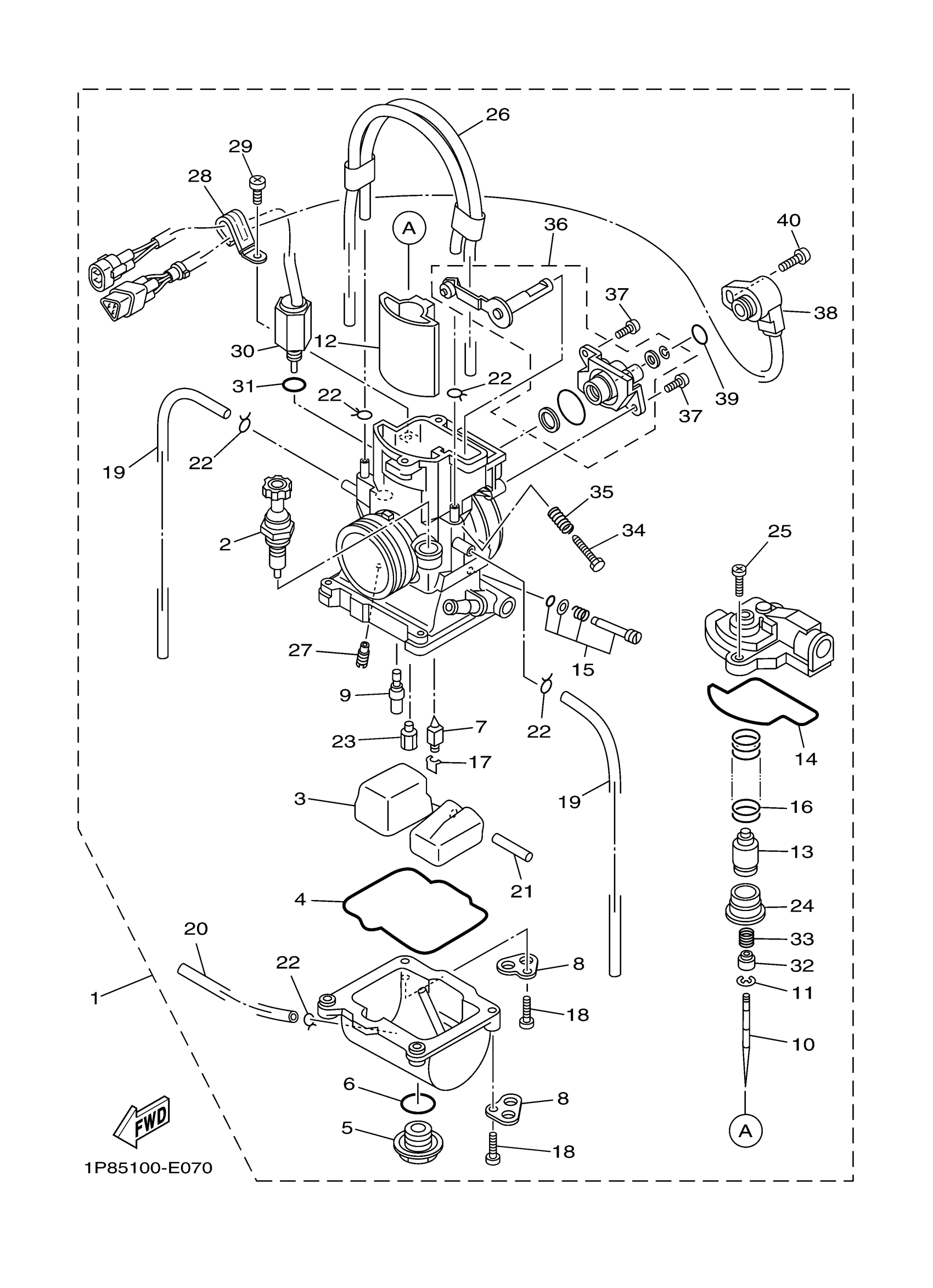

Yamaha YZ250XJ (YZ250X) BF1A 2018 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

1P8-14101-54-00

$564.99

2

PLUNGER, STARTER

4JT-14171-00-00

$40.99

3

FLOAT

4SR-14985-00-00

$67.99

4

GASKET, FLOAT CHAMBER

4JT-14984-00-00

$28.99

5

PLUG, SCREW

4MX-14115-00-00

$32.99

6

O-RING

4MX-14561-00-00

$6.99

7

VALVE, NEEDLE

4MX-14392-00-00

$43.99

8

PLATE

5BE-14146-00-00

$7.99

9

JET, SLOW (#38)

4MX-14948-02-00

$16.49

9

JET (#40)

4MX-14948-03-00

$17.49

9

JET, PILOT (#42)

4MX-14948-04-00

$9.99

9

JET, PILOT (#45)

4MX-14948-05-00

$9.99

9

JET, PILOT (#48)

4MX-14948-06-00

$9.99

9

JET, PILOT (#50)

4MX-14948-07-00

$9.99

9

JET, PILOT (#52)

4MX-14948-08-00

$9.99

9

JET, PILOT (#55)

4MX-14948-09-00

Unavailable

9

JET, SLOW (#58)

4MX-14948-10-00

Unavailable

9

JET, SLOW (#60)

4MX-14948-11-00

Unavailable

9

JET, SLOW (#62)

4MX-14948-12-00

Unavailable

10

JET NEEDLE COMP.

BRY-14916-HG-00

Unavailable

10

NEEDLE (N89H)

4JT-14916-9H-00

Unavailable

10

JET NEEDLE COMP.

BRY-14916-HK-00

Unavailable

10

JET NEEDLE COMP.

BRY-14916-HJ-00

Unavailable

10

NEEDLE (N3CG)

4SR-14916-CG-00

Unavailable

10

NEEDLE (N3CH)

4SR-14916-CH-00

Unavailable

10

NEEDLE (N3CJ)

4SR-14916-CJ-00

Unavailable

10

NEEDLE (N3CK)

4SR-14916-CK-00

Unavailable

10

NEEDLE (N3CW)

4SR-14916-CW-00

Unavailable

10

NEEDLE (N3EG)

4SR-14916-EG-00

Unavailable

10

NEEDLE (N3EH)

4SR-14916-EH-00

Unavailable

10

NEEDLE (N3EJ)

4SR-14916-EJ-00

Unavailable

10

NEEDLE

4SR-14916-EK-00

Unavailable

10

NEEDLE (N3EW)

4SR-14916-EW-00

Unavailable

10

NEEDLE (N8RH)

4SR-14916-RH-00

Unavailable

10

NEEDLE

4SR-14916-RJ-00

Unavailable

10

NEEDLE

4SR-14916-RW-00

Unavailable

11

CLIP

4MX-14919-00-00

Unavailable

12

VALVE ASSY

5HC-14340-A7-00

Unavailable

13

HOLDER

5HC-14261-00-00

Unavailable

14

GASKET

5HC-14126-00-00

Unavailable

15

PILOT SCREW SET

4SR-14105-01-00

Unavailable

16

SPRING, THROTTLE VALVE

5HC-14131-00-00

Unavailable

17

CLIP

633-14159-00-00

Unavailable

18

SCREW, PAN HEAD(GA5)

98580-04014-00

Unavailable

19

PIPE

4XL-14197-10-00

Unavailable

20

PIPE

4XL-14196-10-00

Unavailable

21

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

22

CLIP

3TJ-14137-40-00

Unavailable

23

JET, MAIN (#165)

4MX-14943-40-00

Unavailable

23

JET, MAIN (#170)

4MX-14943-41-00

Unavailable

23

JET, MAIN (#175)

4MX-14943-42-00

Unavailable

23

JET, MAIN (#180)

4MX-14943-43-00

Unavailable

23

JET, MAIN (#185)

4MX-14943-44-00

Unavailable

23

JET, MAIN (#190)

4MX-14943-45-00

Unavailable

23

JET, MAIN (#162)

4MX-14943-90-00

Unavailable

23

JET, MAIN (#168)

4MX-14943-91-00

Unavailable

23

JET, MAIN (#172)

4MX-14943-92-00

Unavailable

23

JET, MAIN (#178)

4MX-14943-93-00

Unavailable

23

JET, MAIN (#182)

4MX-14943-94-00

Unavailable

23

JET, MAIN (#188)

4MX-14943-95-00

Unavailable

24

RING

4MX-14194-00-00

Unavailable

25

SCREW, PAN HEAD

98511-04012-00

Unavailable

26

HOSE

4XL-1410E-00-00

Unavailable

27

JET (#40)

4JT-1494F-03-00

Unavailable

27

JET (#50)

4JT-1494F-07-00

Unavailable

27

JET (#55)

4JT-1494F-09-00

Unavailable

27

JET (#60)

4JT-1494F-11-00

Unavailable

27

JET (#65)

4JT-1494F-13-00

Unavailable

27

JET (#70)

4JT-1494F-15-00

Unavailable

28

PLATE

1P8-14146-01-00

Unavailable

29

. SCREW, PAN HEAD

98580-04006-00

Unavailable

30

SOLENOID VALVE

5NX-1410H-11-00

Unavailable

31

O-RING

4JT-14147-00-00

Unavailable

32

COLLAR

5HC-14264-00-00

Unavailable

33

SPRING

5HC-14275-00-00

Unavailable

34

SCREW, THROTTLE

5HC-14922-00-00

Unavailable

35

SPRING, THROTTLE STOP

5HC-14934-00-00

Unavailable

36

LEVER COMP. 1

1P8-14208-00-00

Unavailable

37

SCREW

5HC-14216-09-00

Unavailable

38

THROTTLE SENSOR ASSY

5NX-85885-12-00

Unavailable

39

O-RING

33D-14562-00-00

Unavailable

40

SCREW

1DX-14216-00-00

Unavailable
