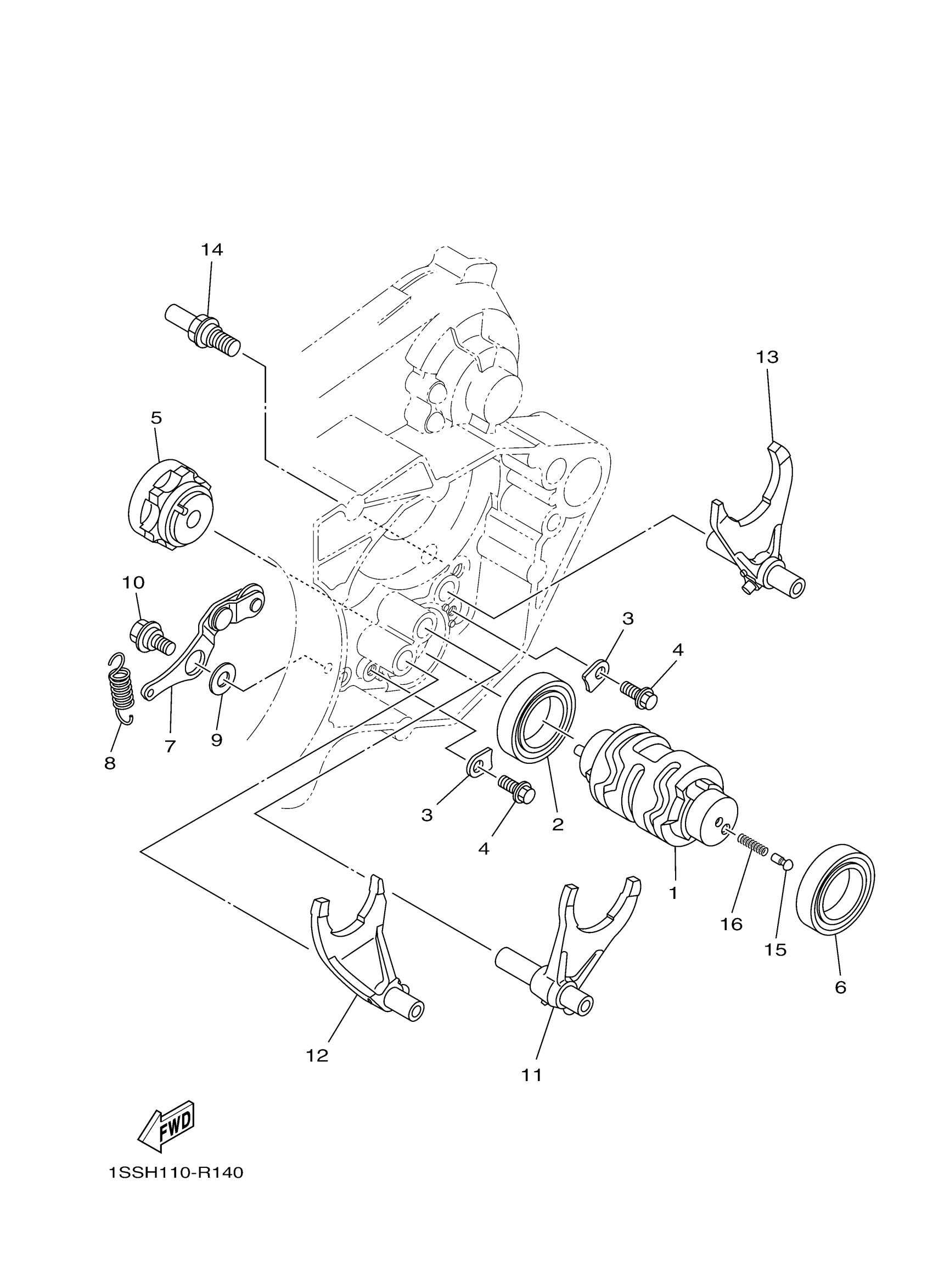

Yamaha YZ250XH (YZ250X) BF16 2017 SHIFT CAM FORK Diagram

#

Description
Price

1

CAM, SHIFT

1P8-18541-00-00

$94.99

2

BEARING

93306-90506-00

$41.99

3

PLATE, STOPPER 2

5DH-18562-00-00

Unavailable

4

BOLT, FLANGE

95022-06012-00

$3.29

5

SEGMENT

4EW-18185-00-00

$109.99

6

BEARING (5K5)

93306-90501-00

$41.99

7

STOPPER LEVER ASSY

BF1-18140-00-00

$64.99

8

SPRING, TENSION(4NK)

90507-14064-00

$8.49

9

WASHER, PLATE

90201-06013-00

Unavailable

10

BOLT

90109-06201-00

$5.60

11

FORK, SHIFT 1

5BE-18501-20-00

$123.99

12

FORK, SHIFT 2

5BE-18502-20-00

$138.99

13

FORK, SHIFT 3

5CU-18503-20-00

$86.99

14

BOLT

90109-08227-00

$7.49

15

POINT, NEUTRAL

4UN-18542-00-00

$8.99

16

SPRING COMPRESSION278185450000

90501-06022-00

Unavailable
