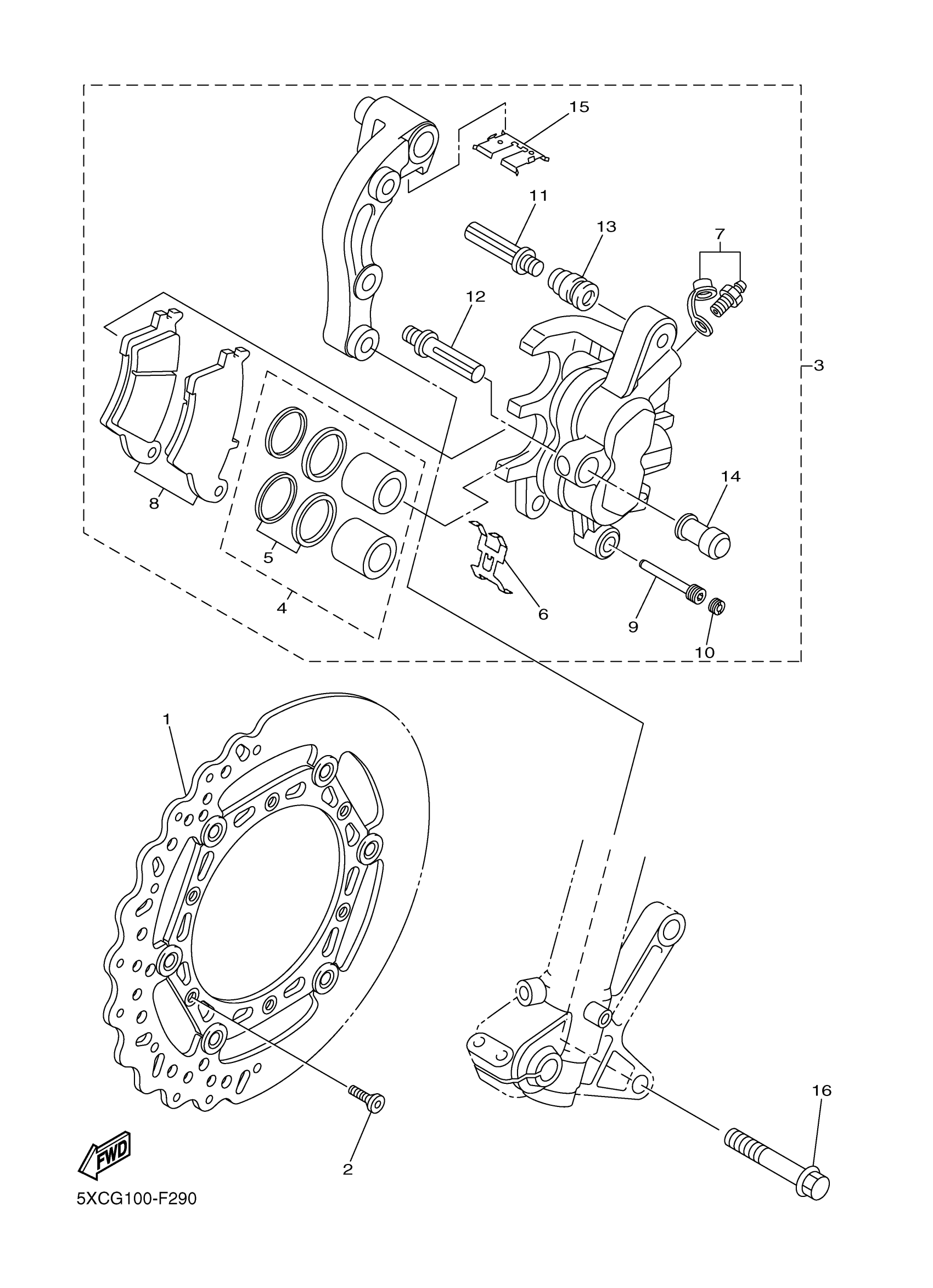

Yamaha YZ250XG (YZ250X) BF11 2016 FRONT BRAKE CALIPER Diagram

Description

Price

DISK BRAKE ASSY

5XC-2581T-G0-00

$282.99

SCREW, COUNTERSUNK

90151-06079-00

$3.23

CALIPER ASSY (LEFT)

5XC-2580T-G0-00

$469.99

PISTON ASSY, CALIP

5XC-25802-00-00

$95.99

CALIPER SEAL KIT

5KM-25803-10-00

$20.99

SUPPORT, PAD

5DH-25919-00-00

$20.99

BLEED SCREW KIT

36Y-W0048-00-00

$9.99

BRAKE PAD KIT

5XC-W0045-00-00

$43.99

PIN, PAD

5DH-25933-00-00

$22.99

PLUG

5DH-25916-00-00

$9.99

BOLT

3SP-25926-51-00

$13.49

BOLT

3SP-25914-51-00

$4.58

BOOT, CALIPER

3JD-25917-00-00

$8.99

BOOT 2

1UY-25937-51-00

$14.49

RETAINER, CALIPER

5XC-25849-G0-00

$14.49

BOLT, FLANGE

90105-08137-00

Unavailable
