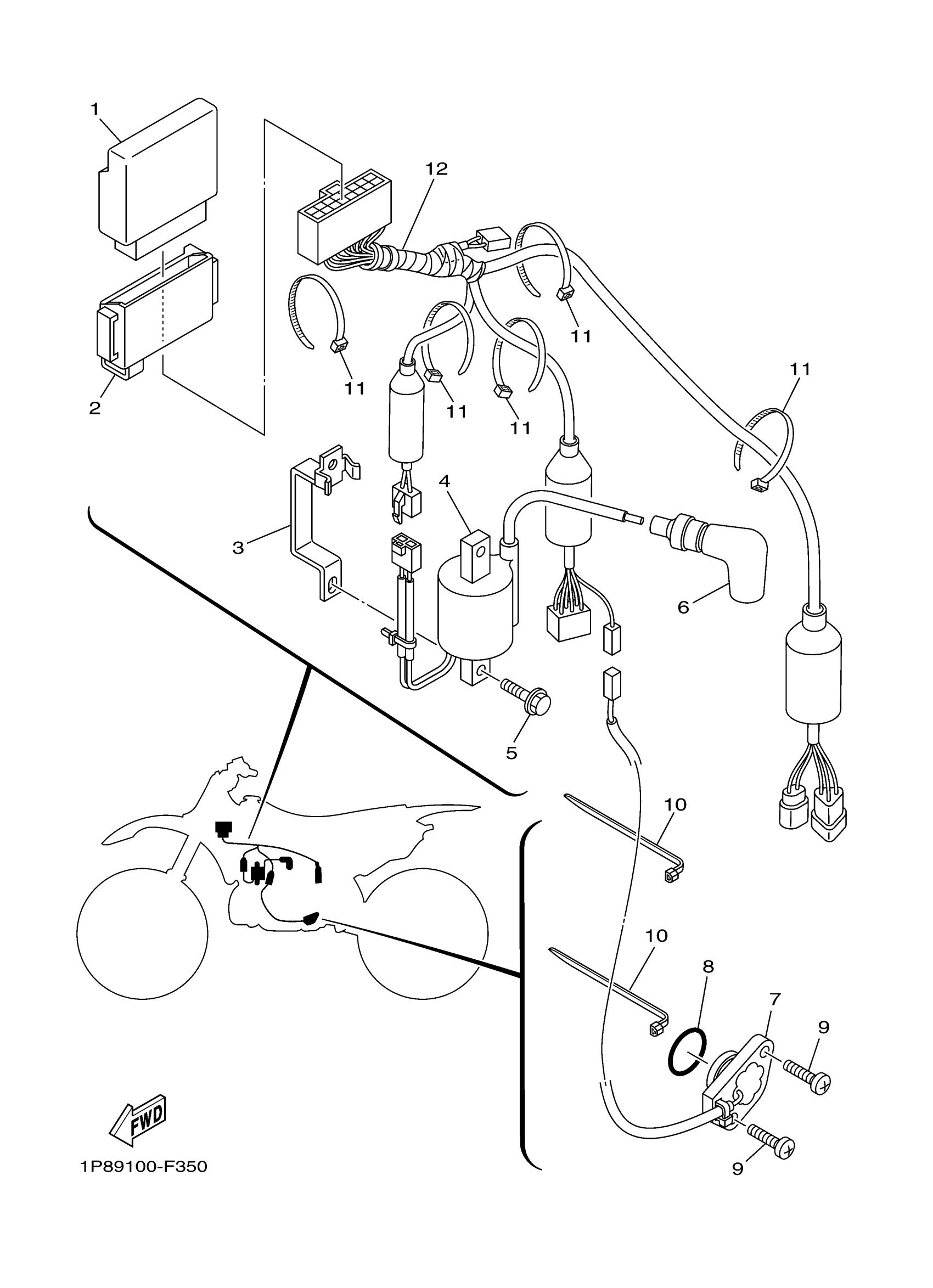

Yamaha YZ250XG (YZ250X) BF11 2016 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

BF1-85540-03-00

Unavailable

2

BAND

1P8-85546-00-00

$16.70

3

CORE, SIDE

1P8-8231U-10-00

$16.08

4

IGNITION COIL ASSY

1P8-82310-03-00

$94.23

5

BOLT, FLANGE

90105-06060-00

$3.50

6

PLUG CAP ASSY

8DG-82370-00-00

$41.54

7

NEUTRAL SWITCH ASSY

1P8-82540-02-00

$53.62

8

O-RING

93210-21001-00

$4.46

9

SCREW, BIND

98902-05014-00

$1.13

10

CLAMP(MF1)

90464-15152-00

$4.07

11

CLAMP(4FM)

90464-15195-00

$2.57

12

WIRE, SUB LEAD

1P8-82509-23-00

Unavailable
