Description

Price

1

SHIFT SHAFT ASSY

5CU-18101-11-00

$63.99

2

LEVER, SHIFT 2

5MW-18122-01-00

$85.99

3

COLLAR

90387-12033-00

$7.49

4

WASHER, PLATE (353)

90201-12575-00

$8.49

5

SPRING, TORSION(4DA)

90508-291A8-00

$9.49

6

SHIFT PEDAL ASSY

1C3-18110-00-00

$53.99

7

BOLT, FLANGE

95022-06020-00

$3.62

8

OIL SEAL (4G0)

93102-12224-00

$10.49

9

PIN, SHIFT

3XJ-18173-10-00

$19.99

10

ROLLER, SHIFT LEVER

3XJ-18178-00-00

$13.49

11

PAWL, SHIFTER

3XJ-18182-00-00

$15.49

12

SPRING, COMPRESSION(3XJ)

90501-052G5-00

$8.49

13

PIN, PAWL

3XJ-18184-00-00

$15.49

14

GUIDE, SHIFT

5CU-18172-00-00

Unavailable

15

BOLT

90101-06042-00

$5.60

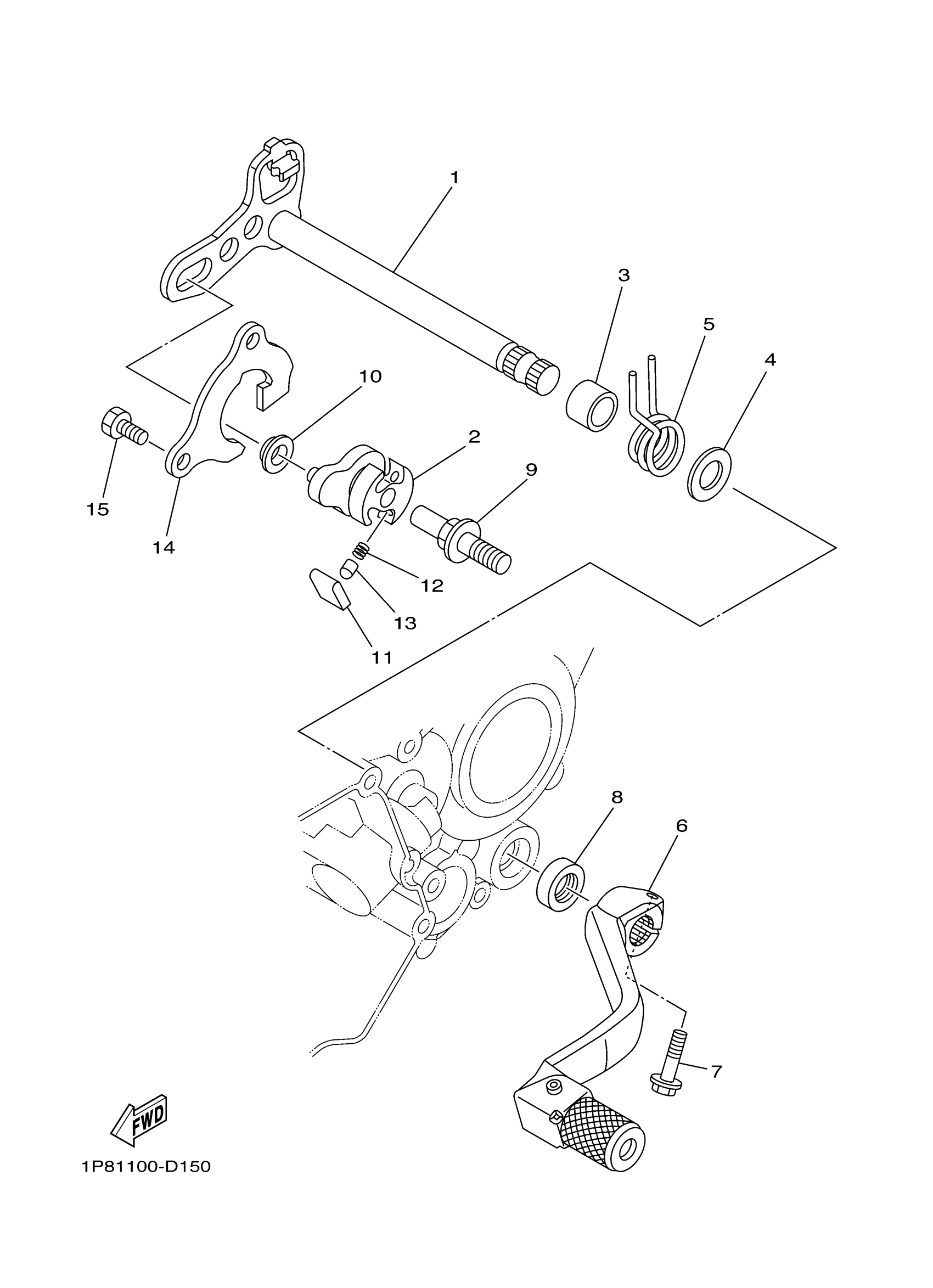

Yamaha YZ250X (YZ250) 1P8D 2008 SHIFT SHAFT Diagram
