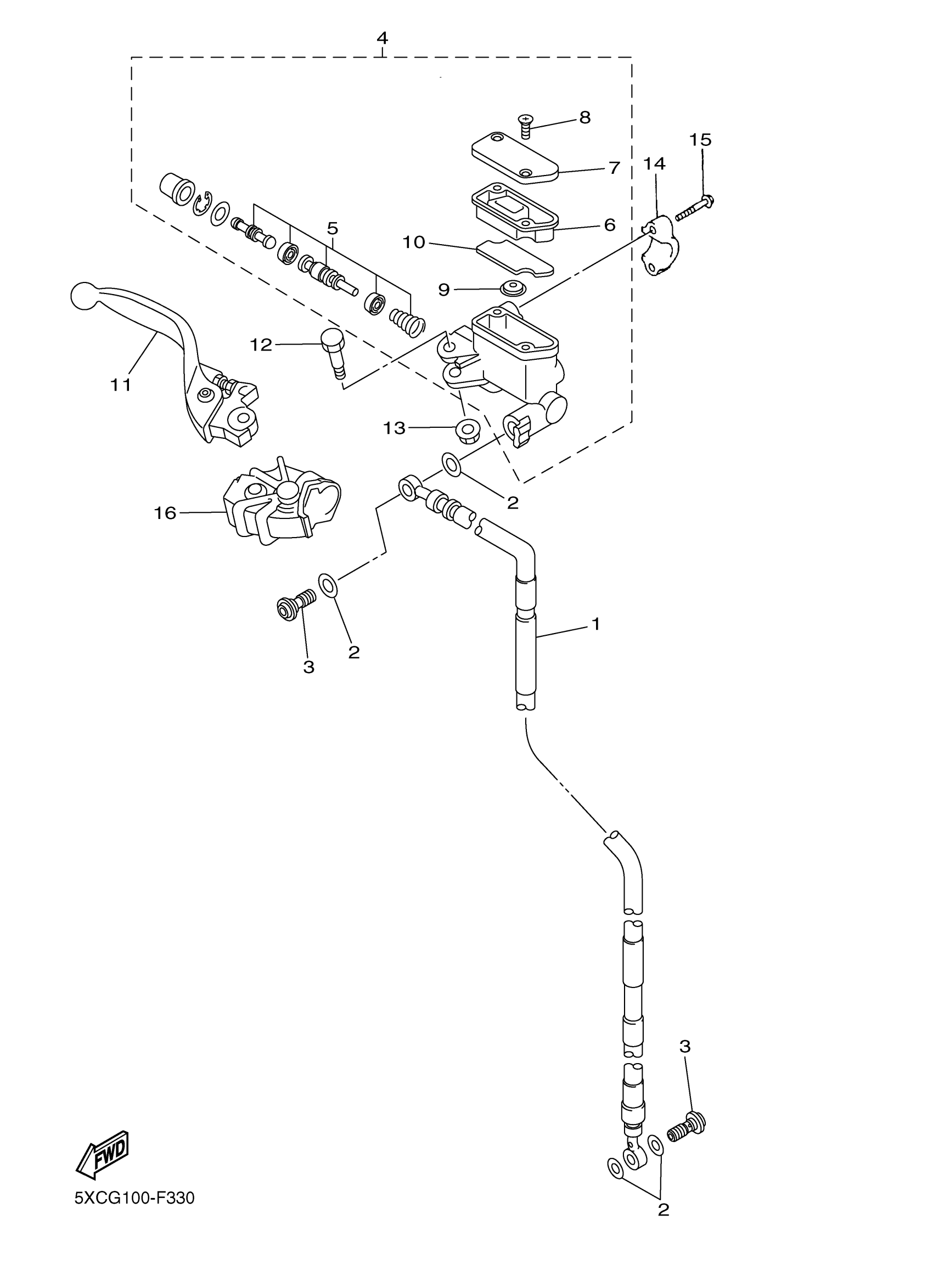

Yamaha YZ250X (YZ250) 1P8D 2008 FRONT MASTER CYLINDER Diagram

Description

Price

HOSE, BRAKE 1

5XC-25872-L0-00

$157.24

GASKET

90430-10005-00

$6.57

BOLT, UNION

90401-10172-00

$3.46

MASTER CYLINDER SUB ASSY

5XC-W2587-00-00

$272.94

CYLINDER KIT, MASTER

5XC-W0041-00-00

$50.91

DIAPHRAGM, RESERVOIR

5XC-25854-G0-00

$11.13

CAP, RESERVOIR

5XC-25852-G0-00

$19.96

SCREW, FLAT

98707-04012-00

$1.34

SEPARATOR ASSY

5CG-25715-00-00

$9.87

FLOAT, RESERVOIR

5XC-25853-G0-00

$4.63

LEVER 2

5XC-83922-L0-00

$34.19

BOLT, LEVER

5MV-2589F-00-00

$5.03

NUT, FLANGE(7NB)

95780-06500-00

$1.85

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$16.55

BOLT, FITTING

5MV-25833-00-00

$5.37

COVER, HANDLE LEVER 1

5XC-26372-G0-00

Unavailable
